Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments

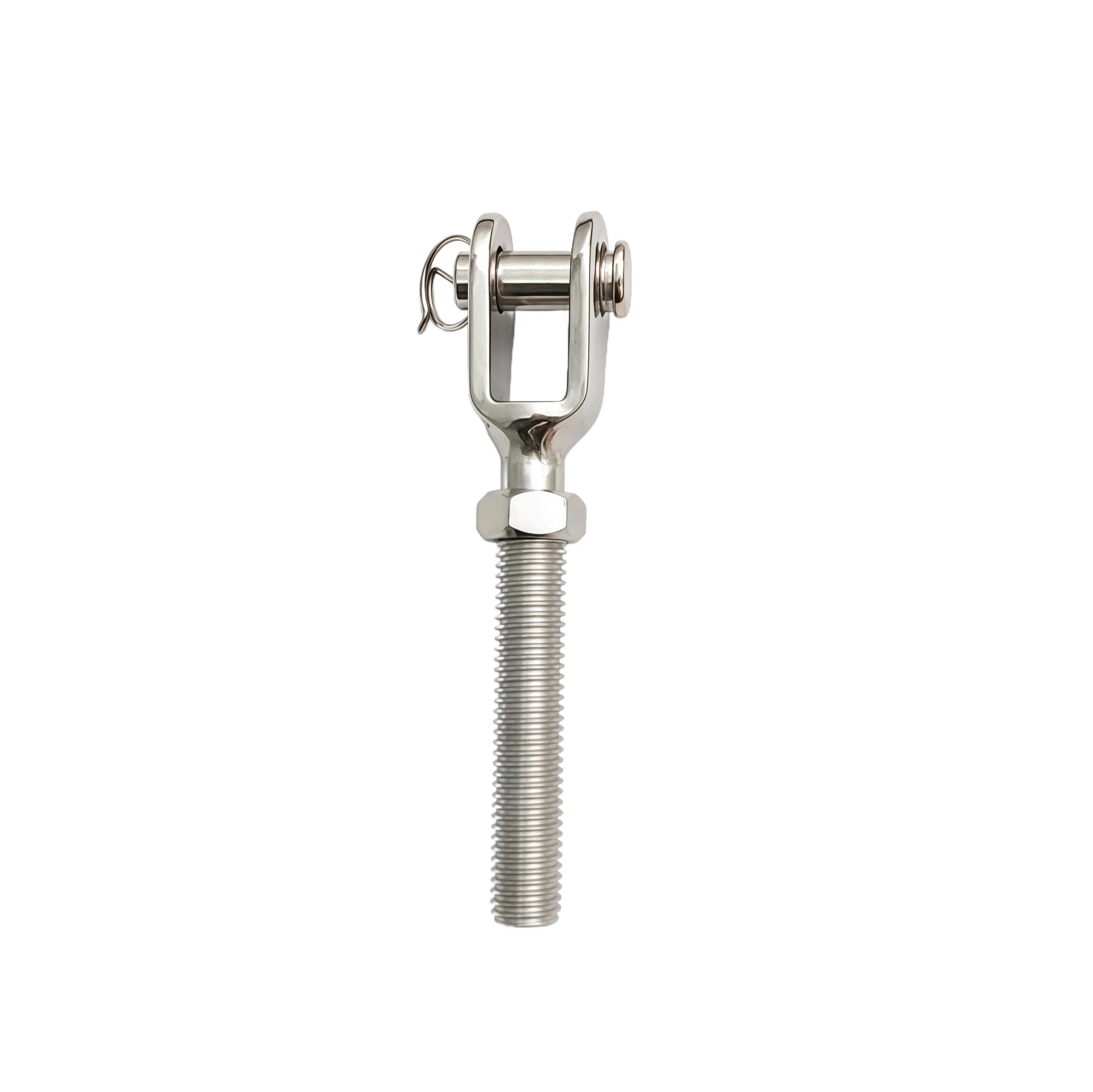

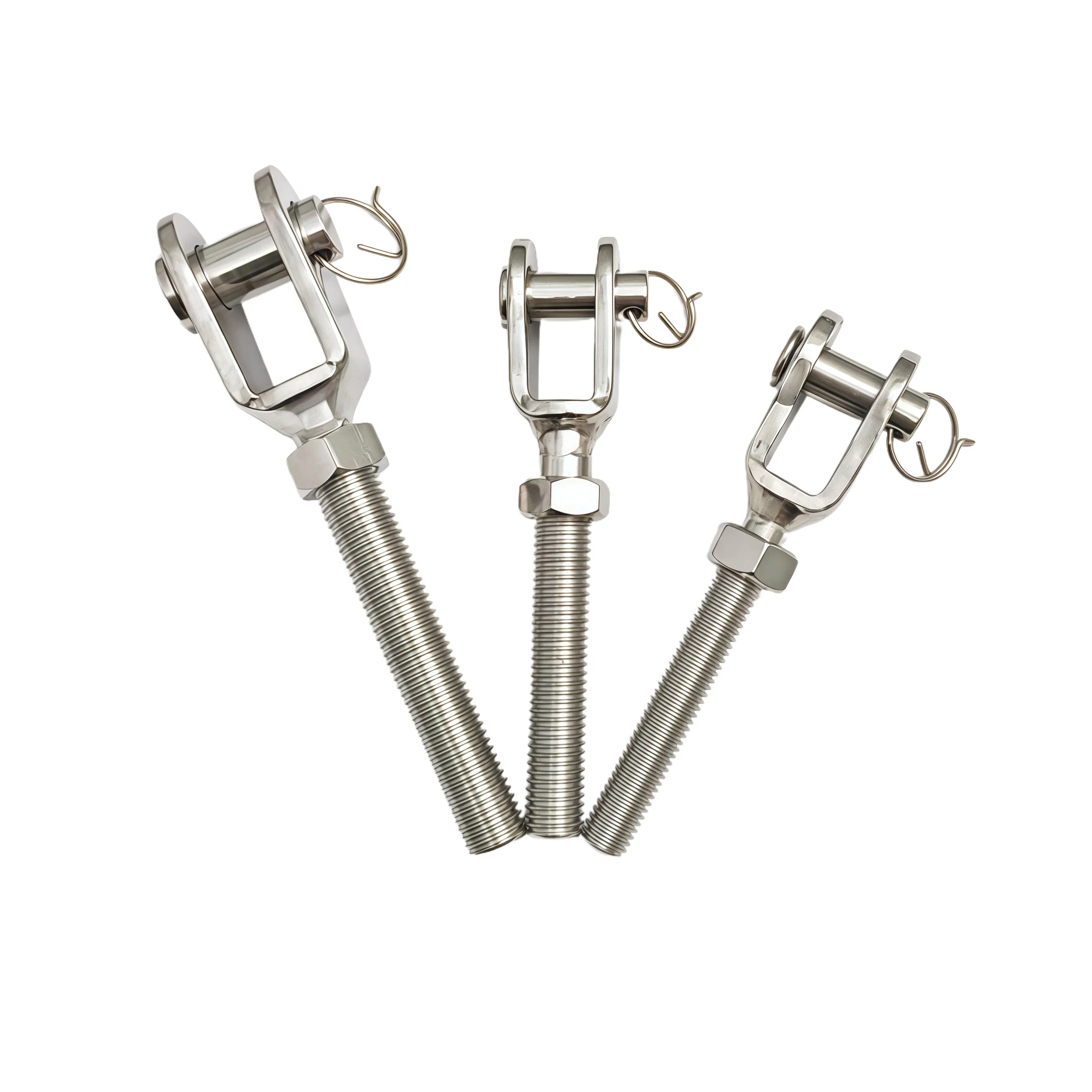

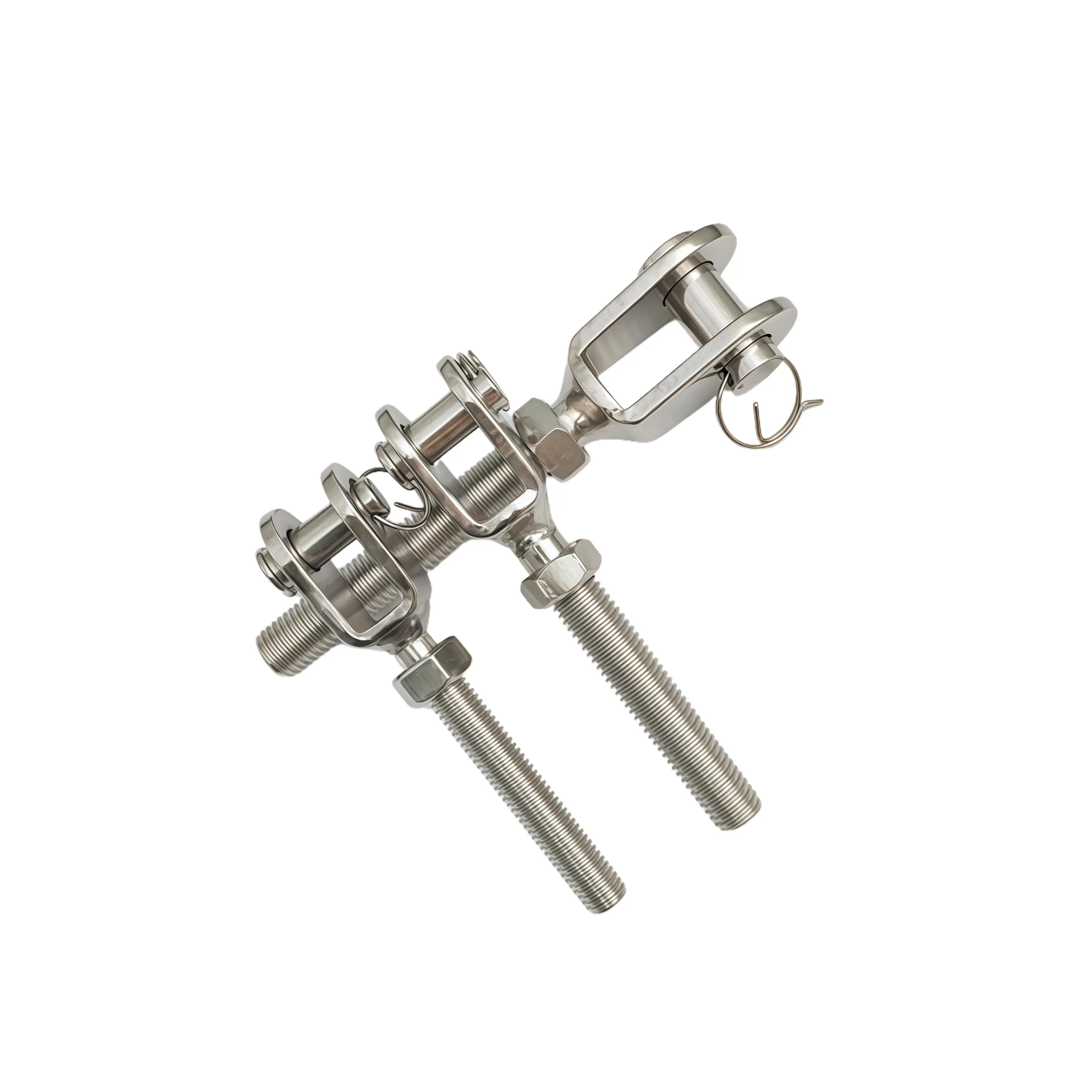

Precision-engineered rigging bolt. Manufactured for high-strength, heavy-duty lifting and secure connections in demanding applications.
Key Features:
Application focus: rigging hardware, load securement, lifting assemblies
Performance: high tensile strength, vibration resistance, reliable under dynamic loads
Typical sectors: industrial lifting, marine rigging, construction hoisting, offshore operations

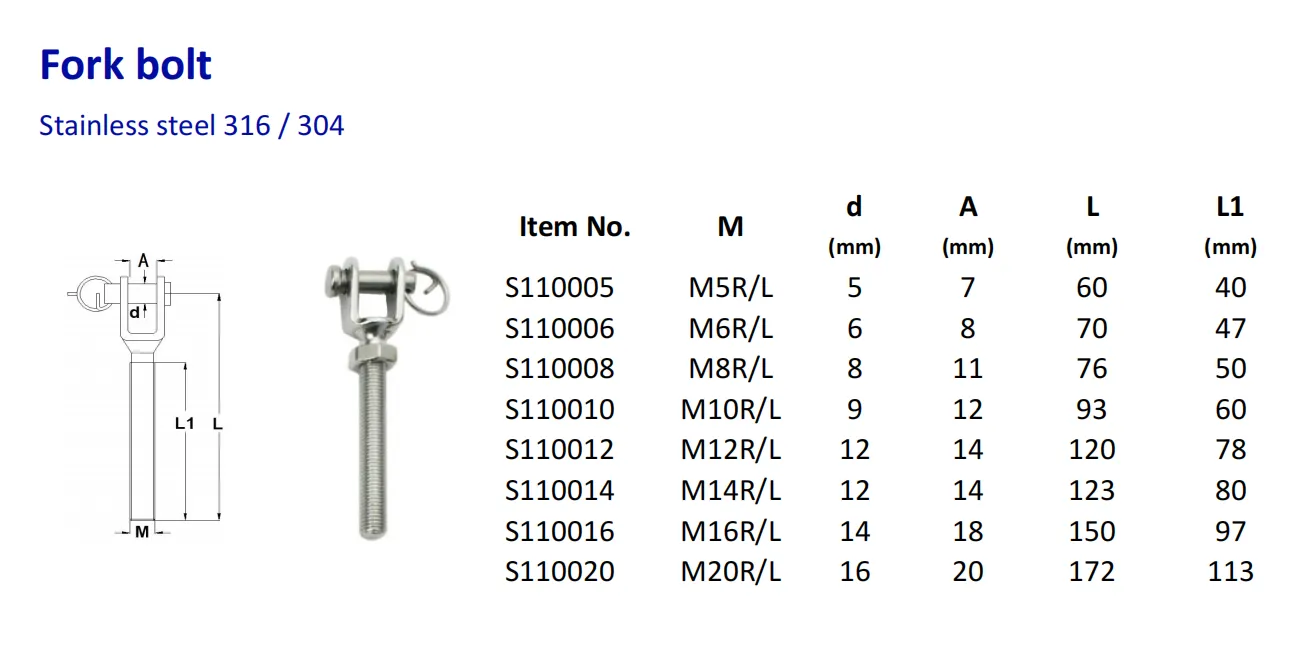

| Item No. | M | d (mm) | A (mm) | L (mm) | L1 (mm) |
|---|---|---|---|---|---|
| S110005 | M5R/L | 5 | 7 | 60 | 40 |
| S110006 | M6R/L | 6 | 8 | 70 | 47 |
| S110008 | M8R/L | 8 | 11 | 76 | 50 |
| S110010 | M10R/L | 9 | 12 | 93 | 60 |
| S110012 | M12R/L | 12 | 14 | 120 | 78 |
| S110014 | M14R/L | 12 | 14 | 123 | 80 |
| S110016 | M16R/L | 14 | 18 | 150 | 97 |
| S110020 | M20R/L | 16 | 20 | 172 | 113 |
