Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:

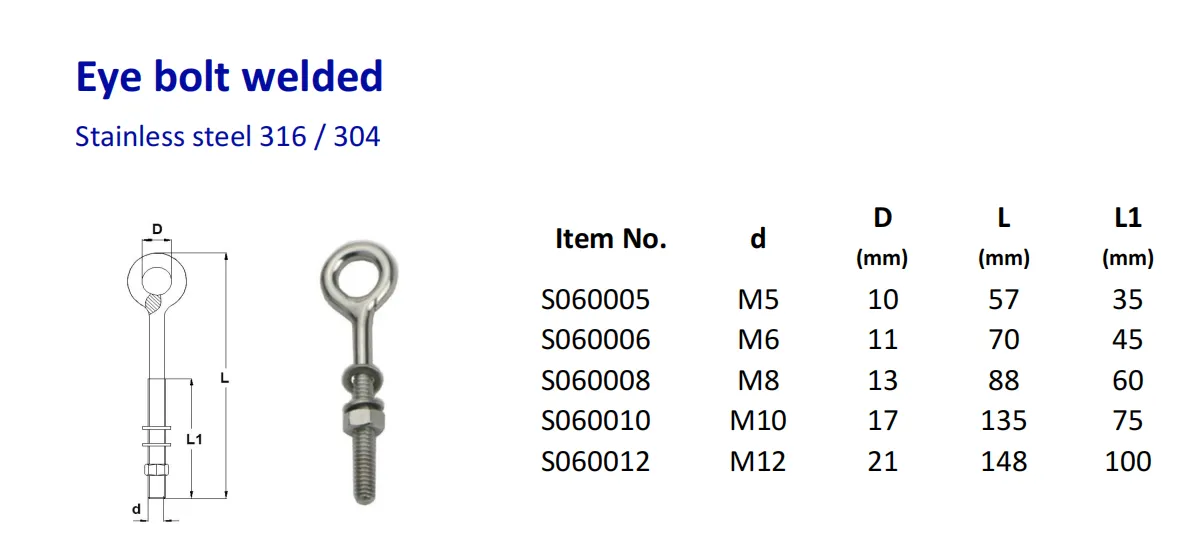

| Item No. | d | D (mm) | L (mm) | L1 (mm) |
|---|---|---|---|---|
| S060005 | M5 | 10 | 57 | 35 |
| S060006 | M6 | 11 | 70 | 45 |
| S060008 | M8 | 13 | 88 | 60 |
| S060010 | M10 | 17 | 135 | 75 |
| S060012 | M12 | 21 | 148 | 100 |
