Product Details
Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.

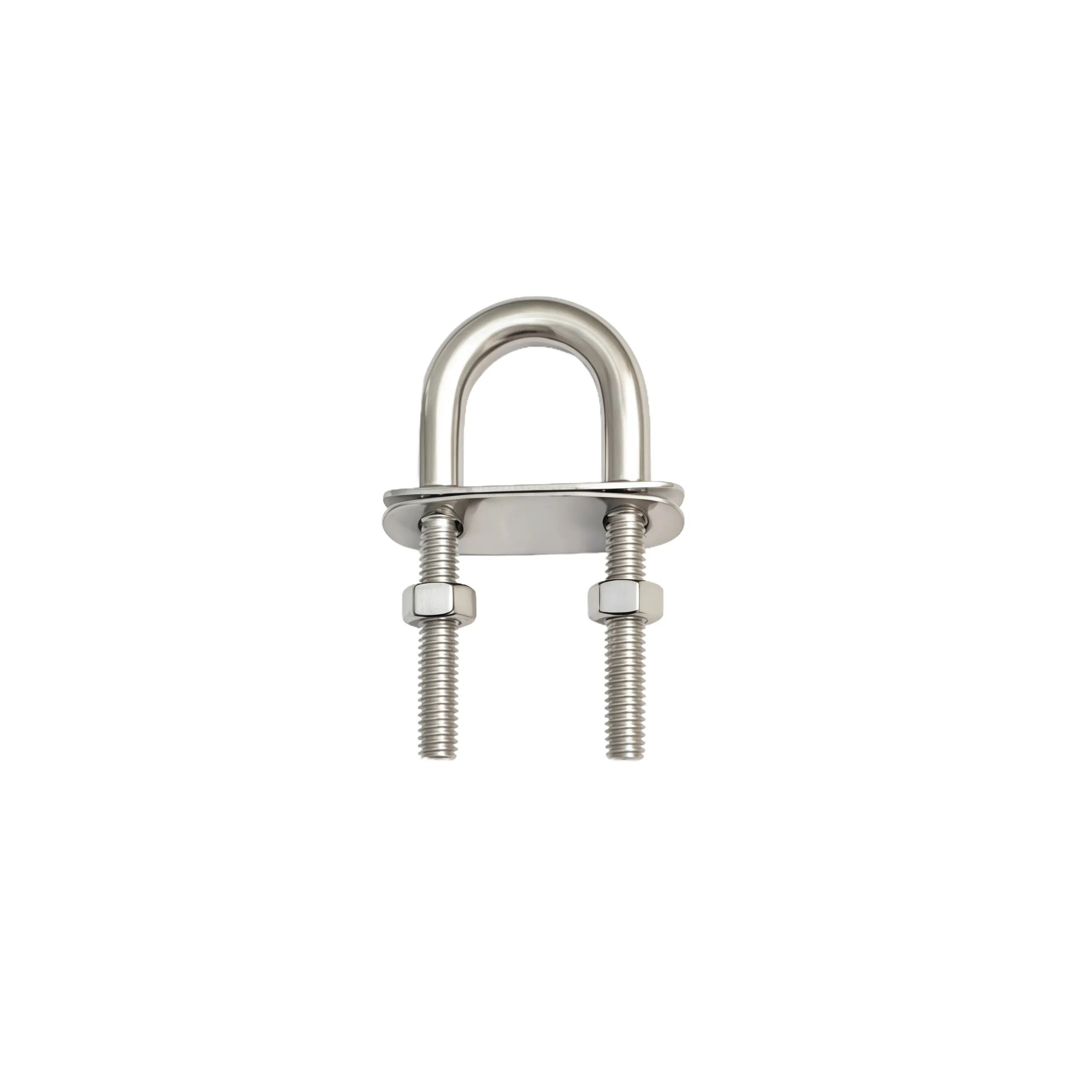

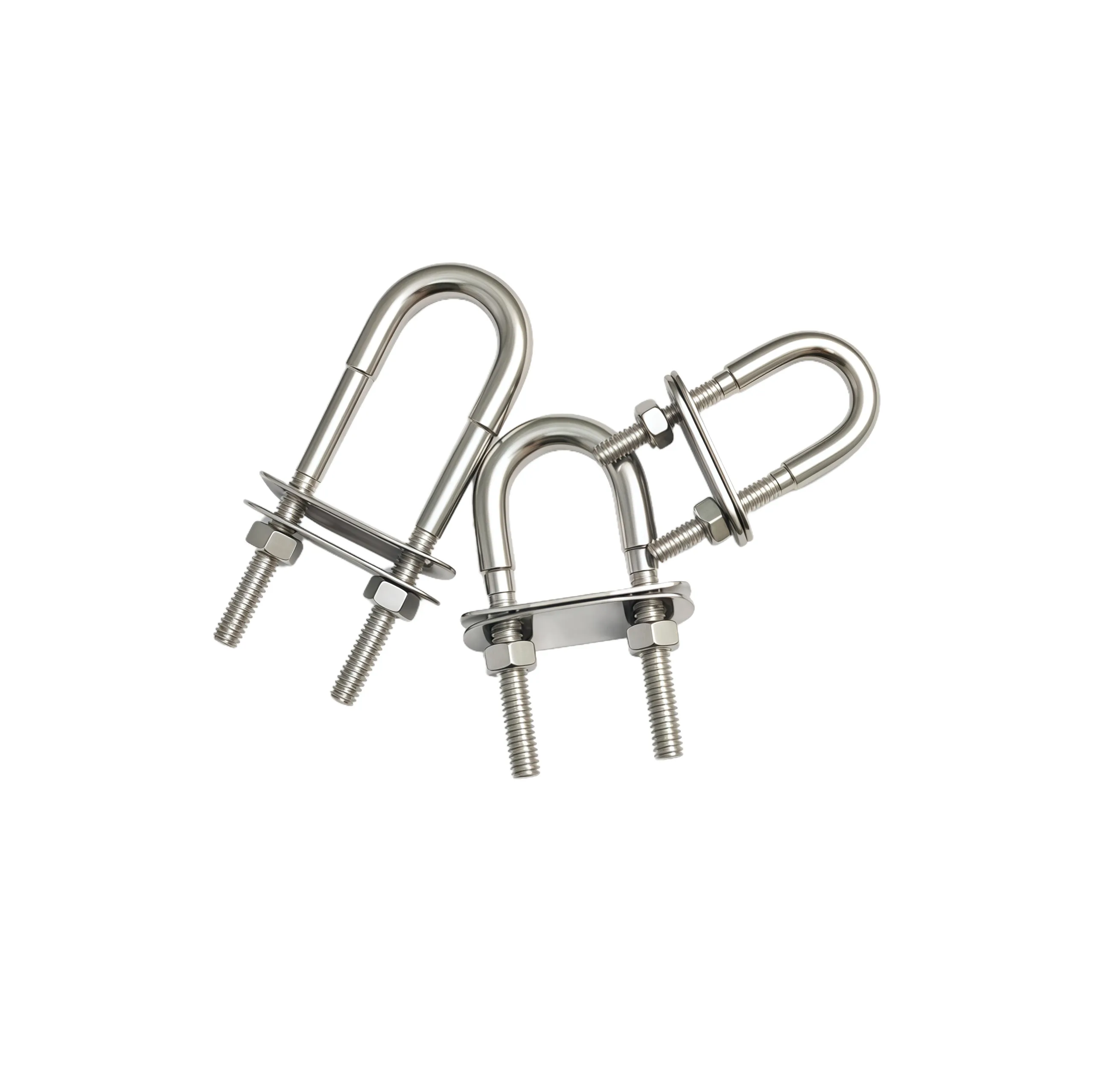

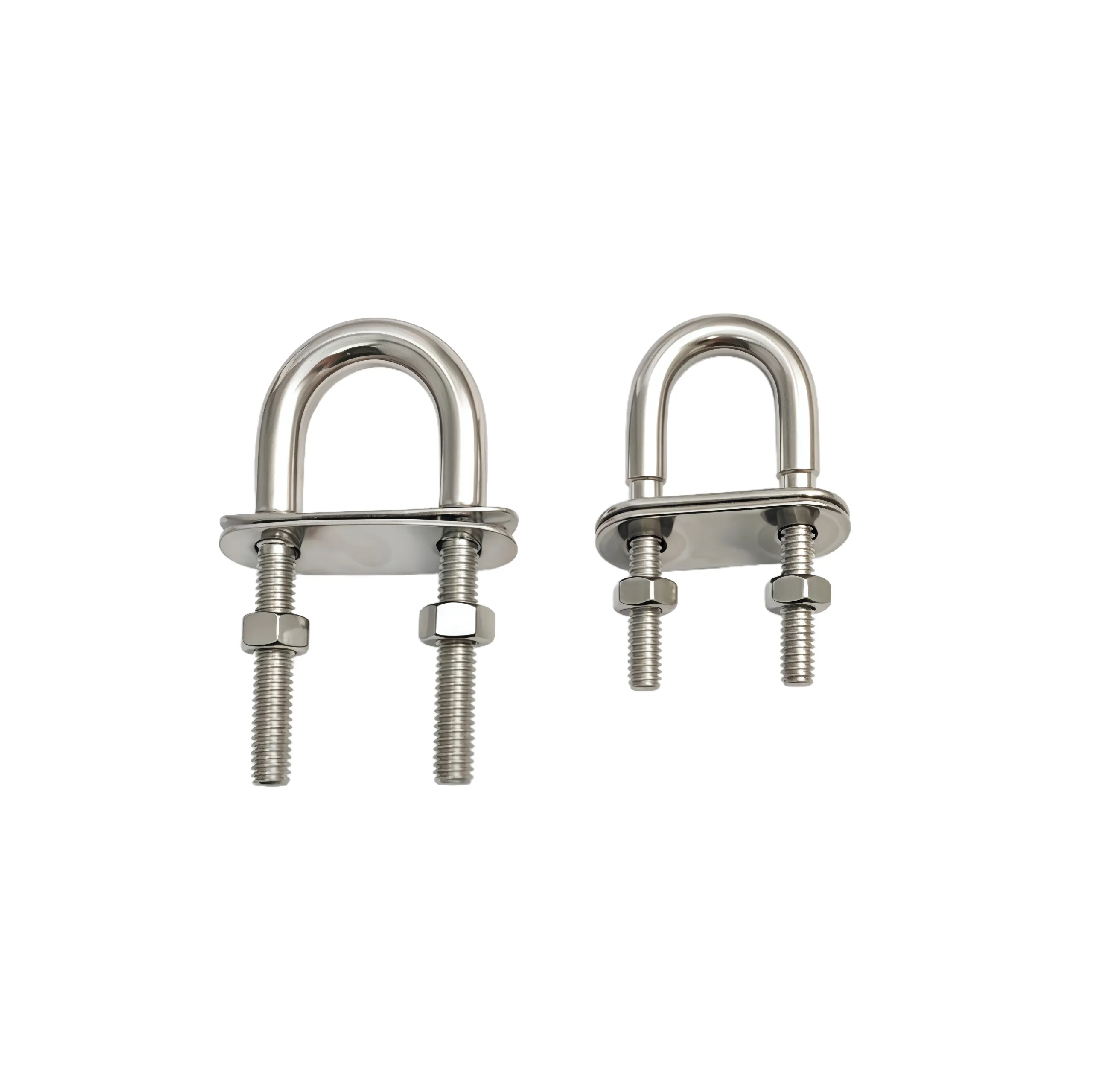

A U-bolt is a curved bolt shaped like the letter "U," with threads on both ends. It is commonly used to secure pipes, tubes, or cables to a support surface such as a wall, beam, or pole.

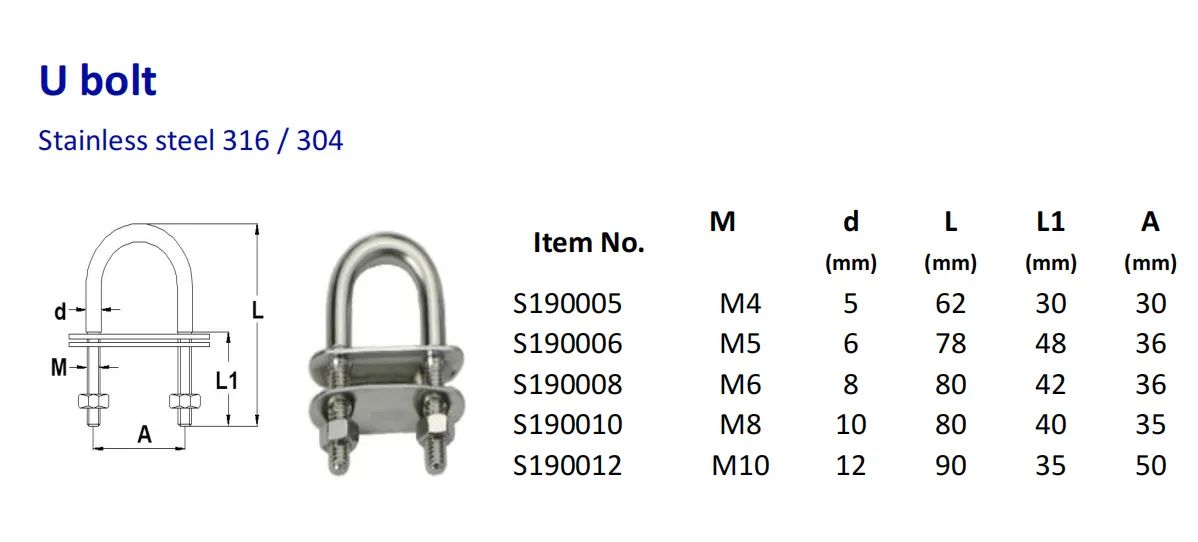

Specifications
| Item No. | M | d (mm) | L (mm) | L1 (mm) | A (mm) |
|---|---|---|---|---|---|
| S190005 | M4 | 5 | 62 | 30 | 30 |
| S190006 | M5 | 6 | 78 | 48 | 36 |
| S190008 | M6 | 8 | 80 | 42 | 36 |
| S190010 | M8 | 10 | 80 | 40 | 35 |
| S190012 | M10 | 12 | 90 | 35 | 50 |
