Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Main Use:
To provide a safe, temporary lifting point for connecting a hook, shackle, or lifting sling.
Where to use it:
Lifting heavy machinery
Attaching to equipment with pre-drilled threaded holes
Rigging and overhead lifting (only when correctly aligned)

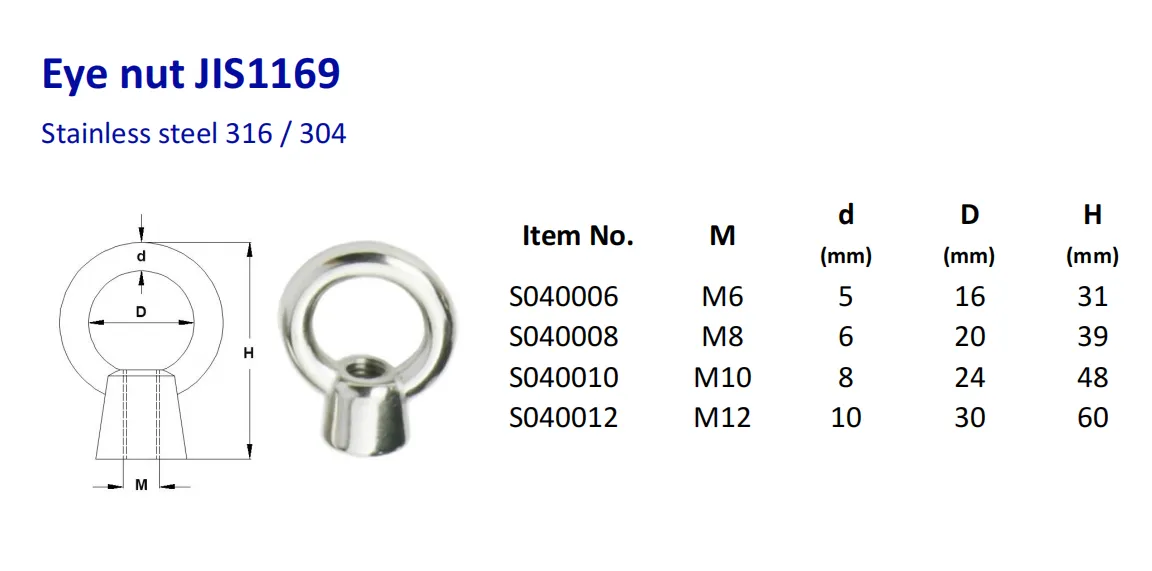

| Item No. | M | d (mm) | D (mm) | H (mm) |
|---|---|---|---|---|
| S040006 | M6 | 5 | 16 | 31 |
| S040008 | M8 | 6 | 20 | 39 |
| S040010 | M10 | 8 | 24 | 48 |
| S040012 | M12 | 10 | 30 | 60 |
