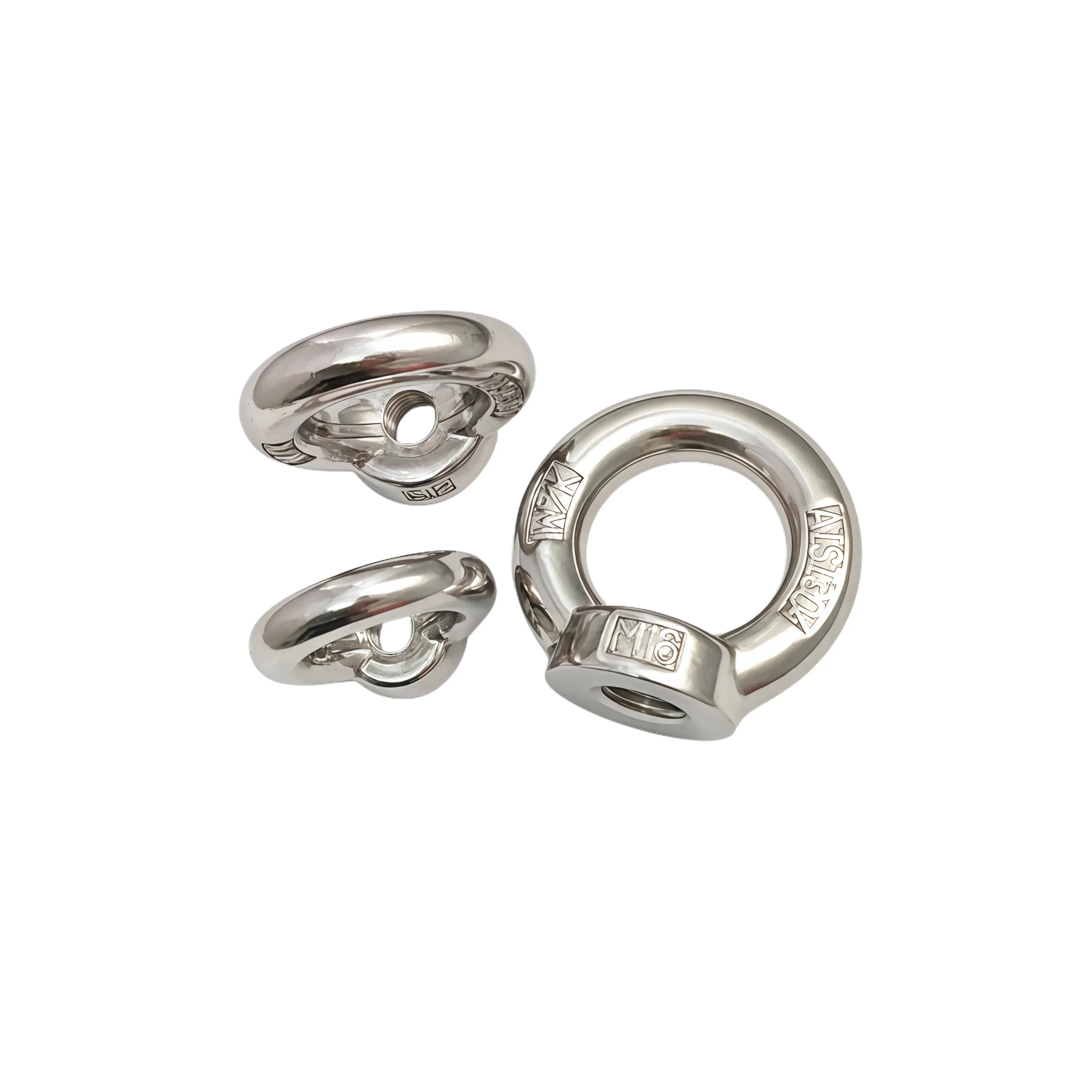

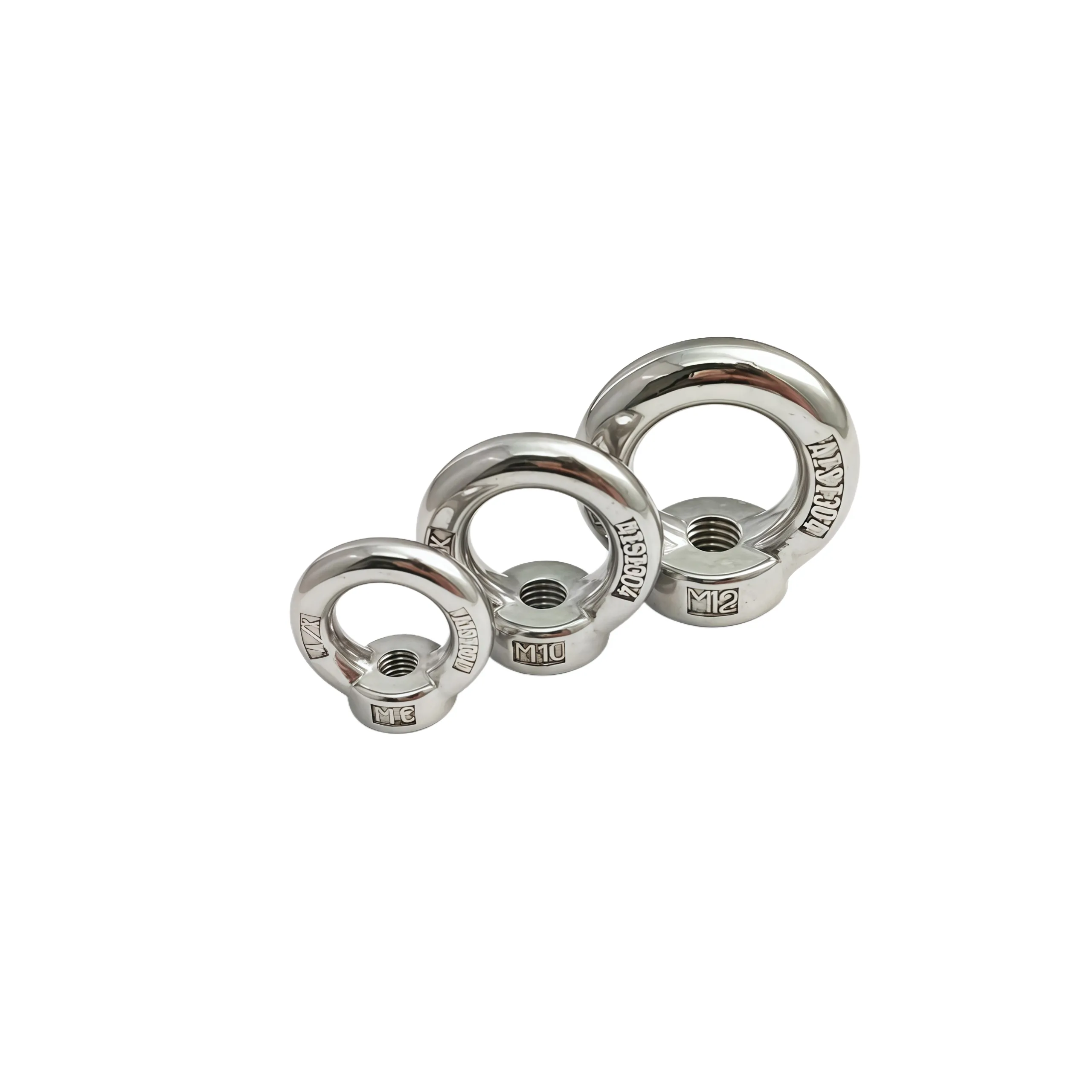

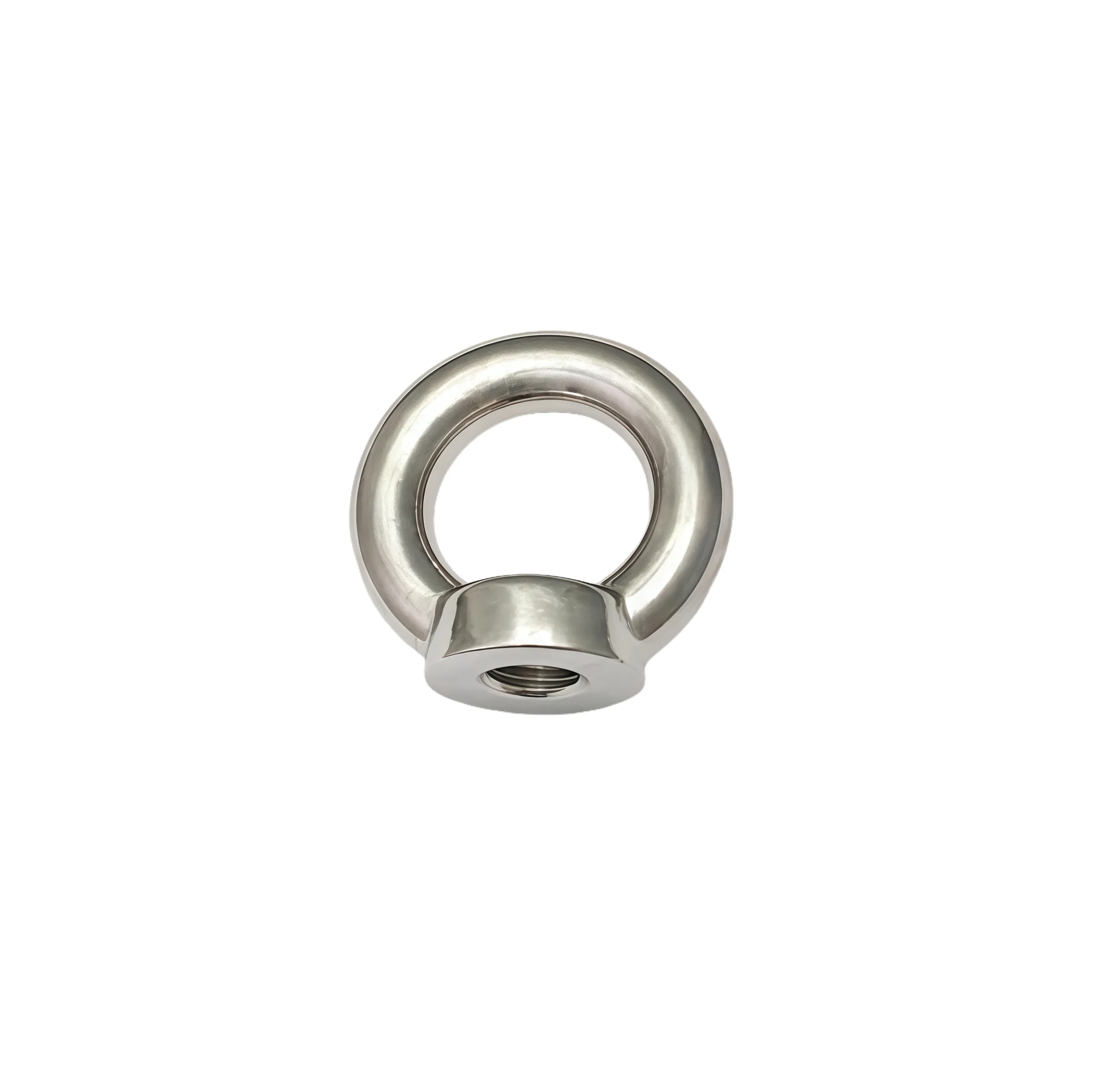

Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Main Use:
To provide a safe, temporary lifting point for connecting a hook, shackle, or lifting sling.
Where to use it:
Lifting heavy machinery
Attaching to equipment with pre-drilled threaded holes
Rigging and overhead lifting (only when correctly aligned)

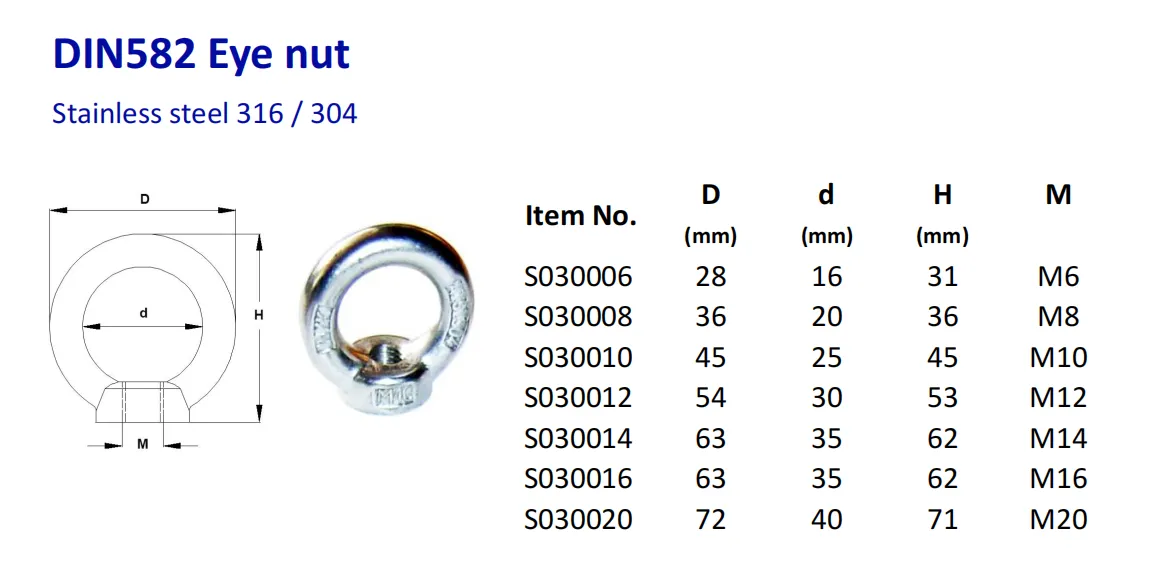

| Item No. | D (mm) | d (mm) | H (mm) | M |
|---|---|---|---|---|
| S030006 | 28 | 16 | 31 | M6 |
| S030008 | 36 | 20 | 36 | M8 |
| S030010 | 45 | 25 | 45 | M10 |
| S030012 | 54 | 30 | 53 | M12 |
| S030014 | 63 | 35 | 62 | M14 |
| S030016 | 63 | 35 | 62 | M16 |
| S030020 | 72 | 40 | 71 | M20 |
