Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.

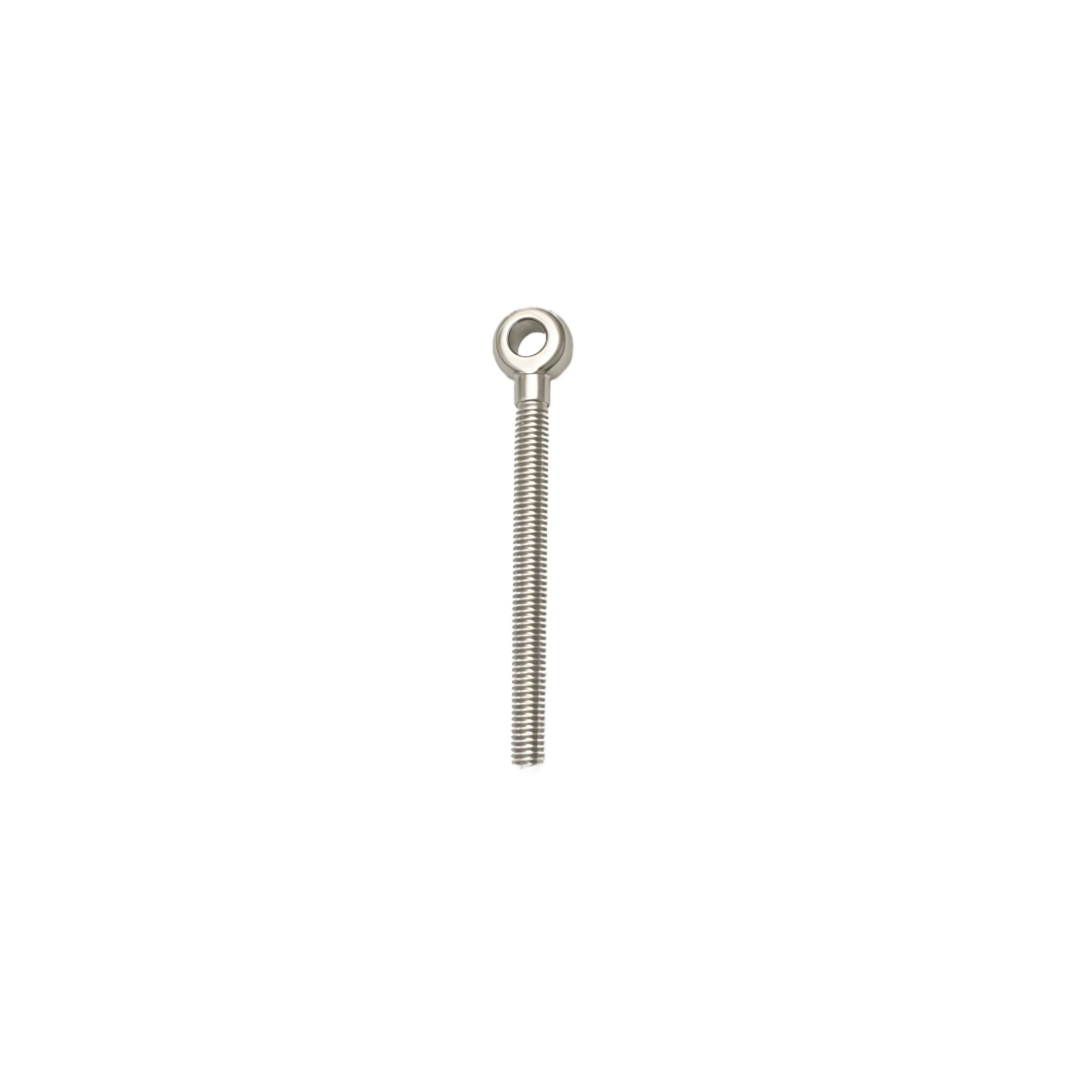

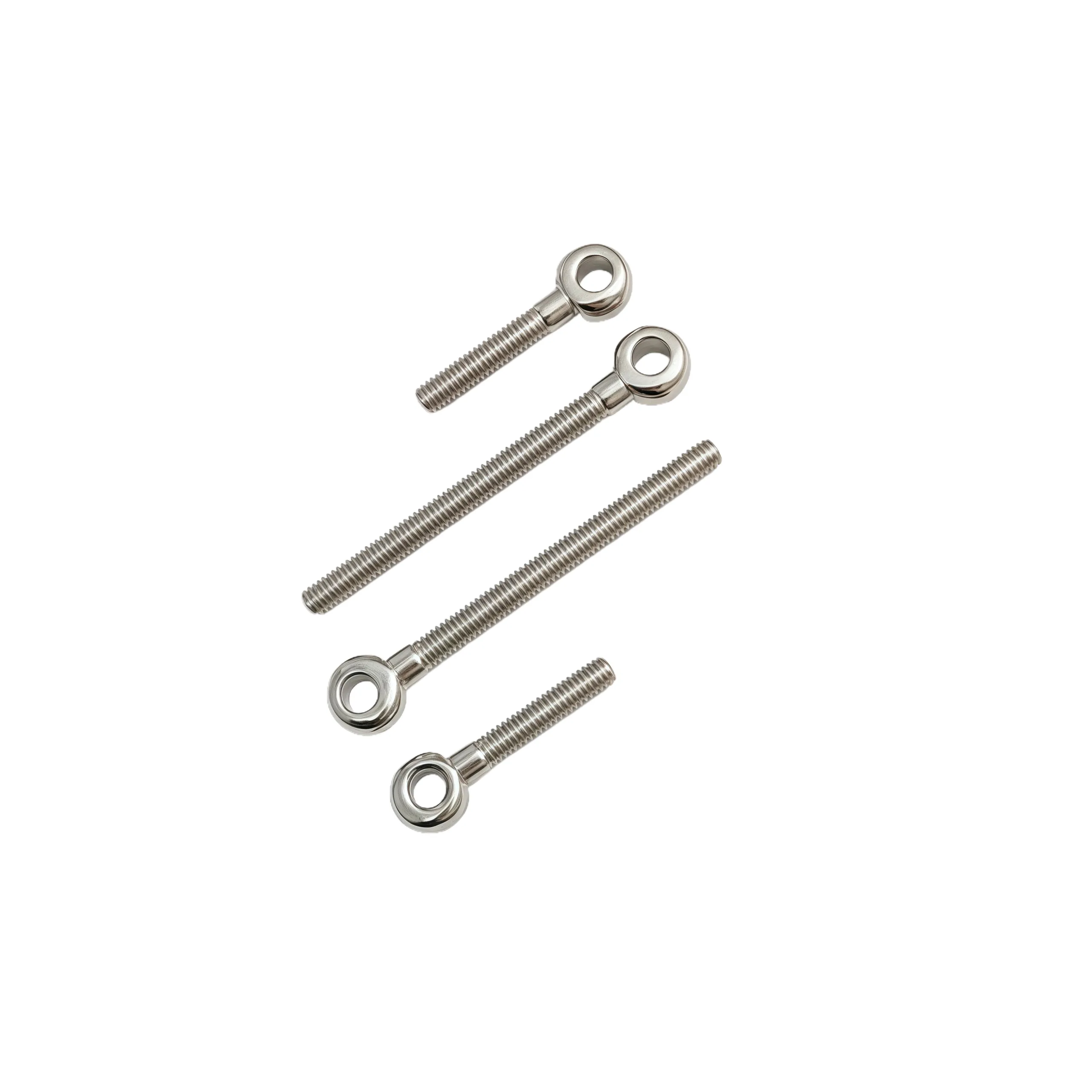

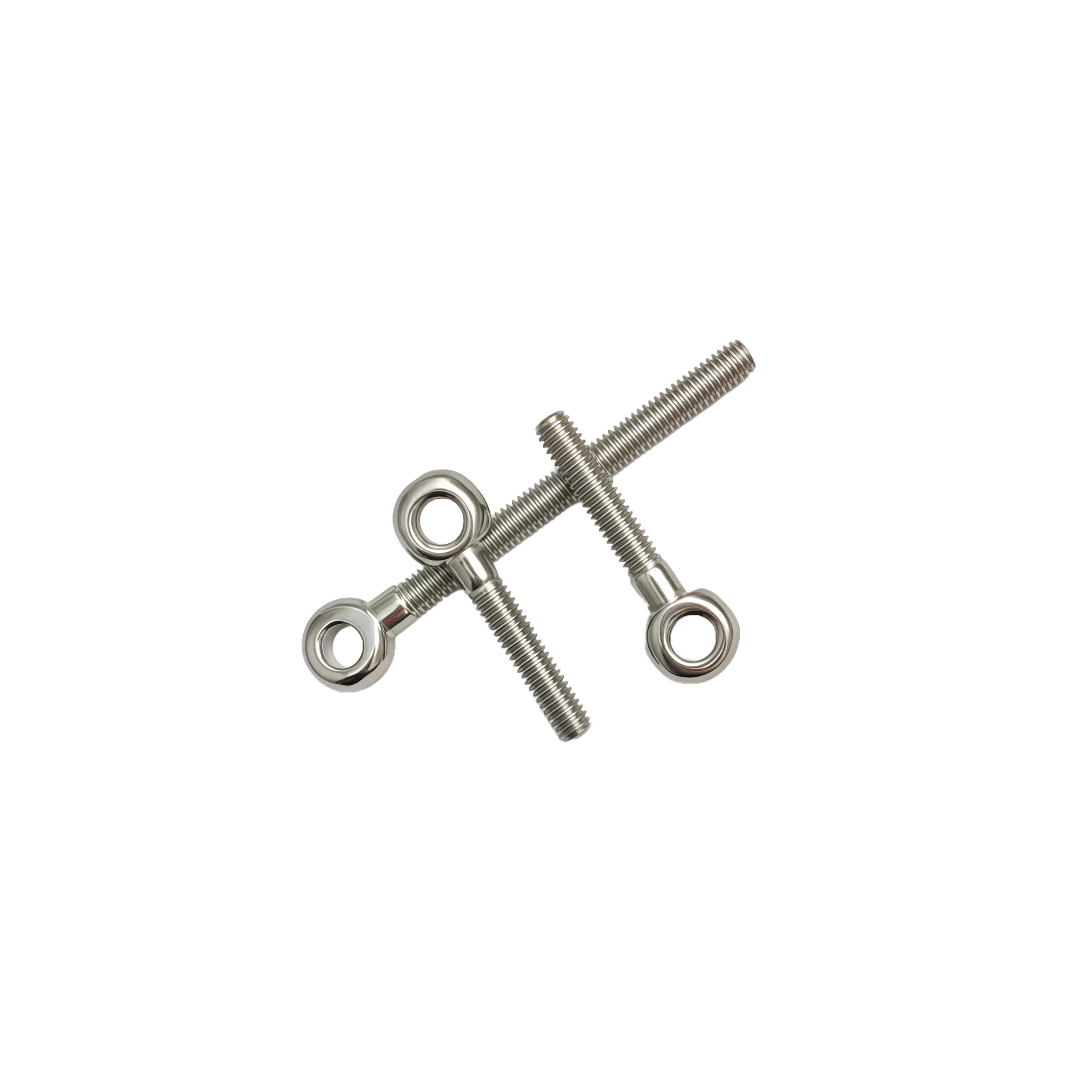

A universal joint screw (commonly referred to as a universal bolt) is a specialized fastener designed to allow connected components to move within a certain angular range, making it suitable for applications requiring frequent disassembly, angle adjustment, or displacement compensation.

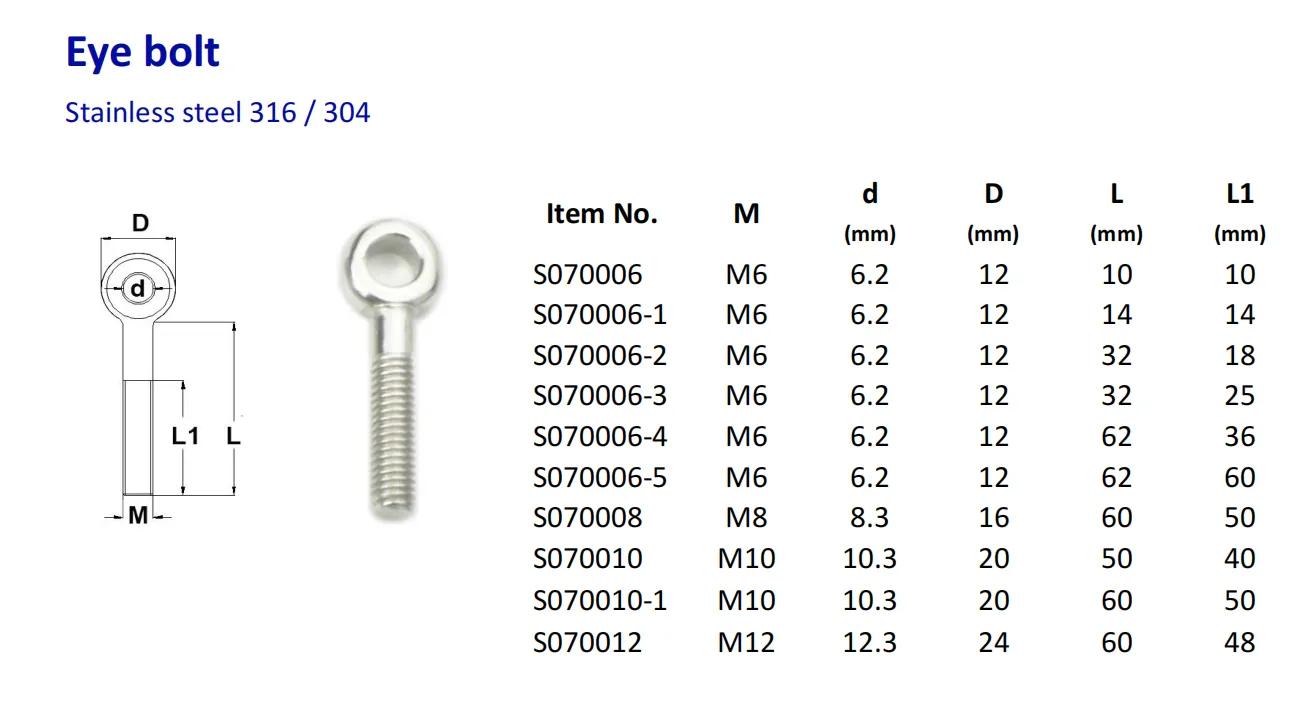

| Item No. | M | d (mm) | D (mm) | L (mm) | L1 (mm) |
|---|---|---|---|---|---|
| S070006 | M6 | 6.2 | 12 | 10 | 10 |
| S070006-1 | M6 | 6.2 | 12 | 14 | 14 |
| S070006-2 | M6 | 6.2 | 12 | 32 | 18 |
| S070006-3 | M6 | 6.2 | 12 | 32 | 25 |
| S070006-4 | M6 | 6.2 | 12 | 62 | 36 |
| S070006-5 | M6 | 6.2 | 12 | 62 | 60 |
| S070008 | M8 | 8.3 | 16 | 60 | 50 |
| S070010 | M10 | 10.3 | 20 | 50 | 40 |
| S070010-1 | M10 | 10.3 | 20 | 60 | 50 |
| S070012 | M12 | 12.3 | 24 | 60 | 48 |
