Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments

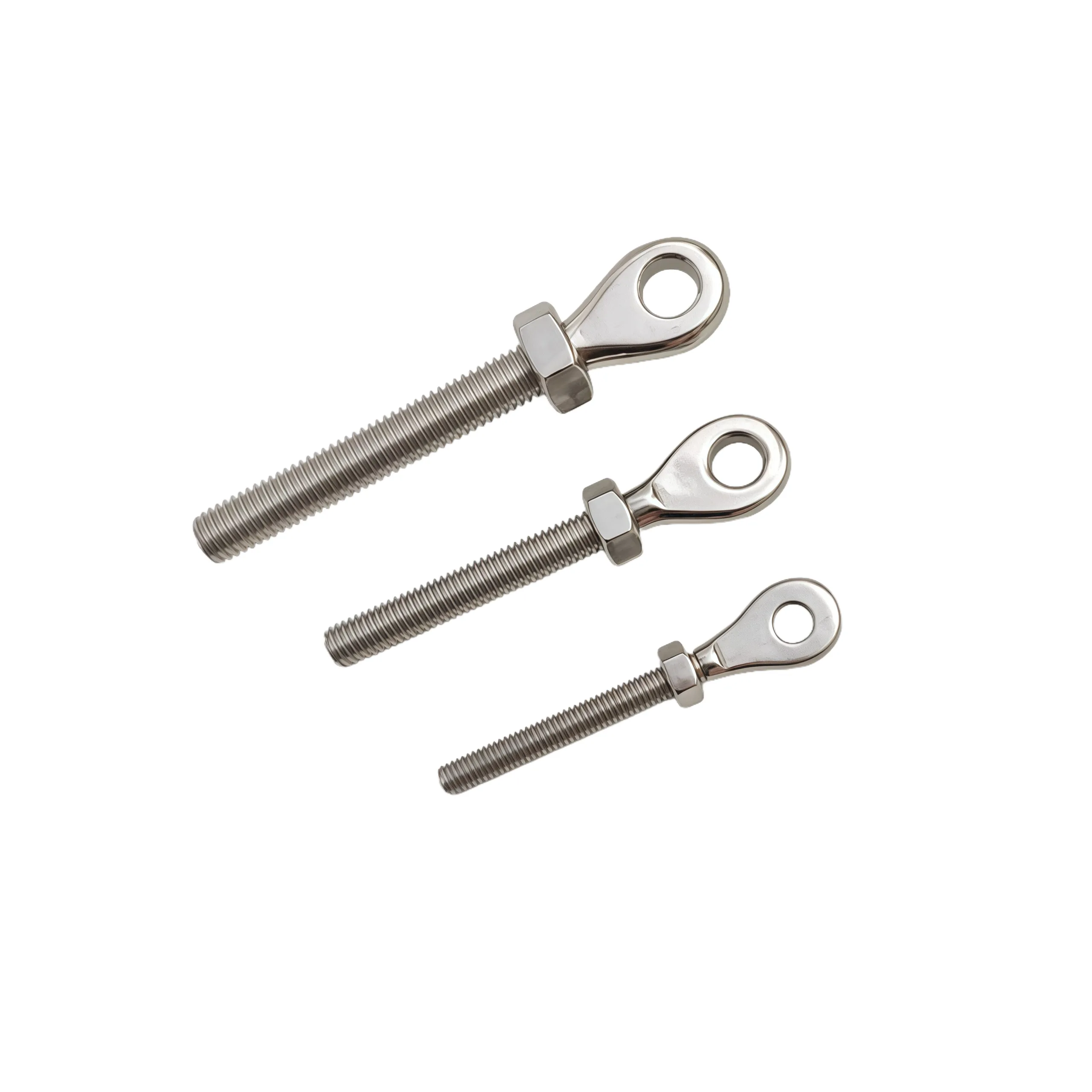

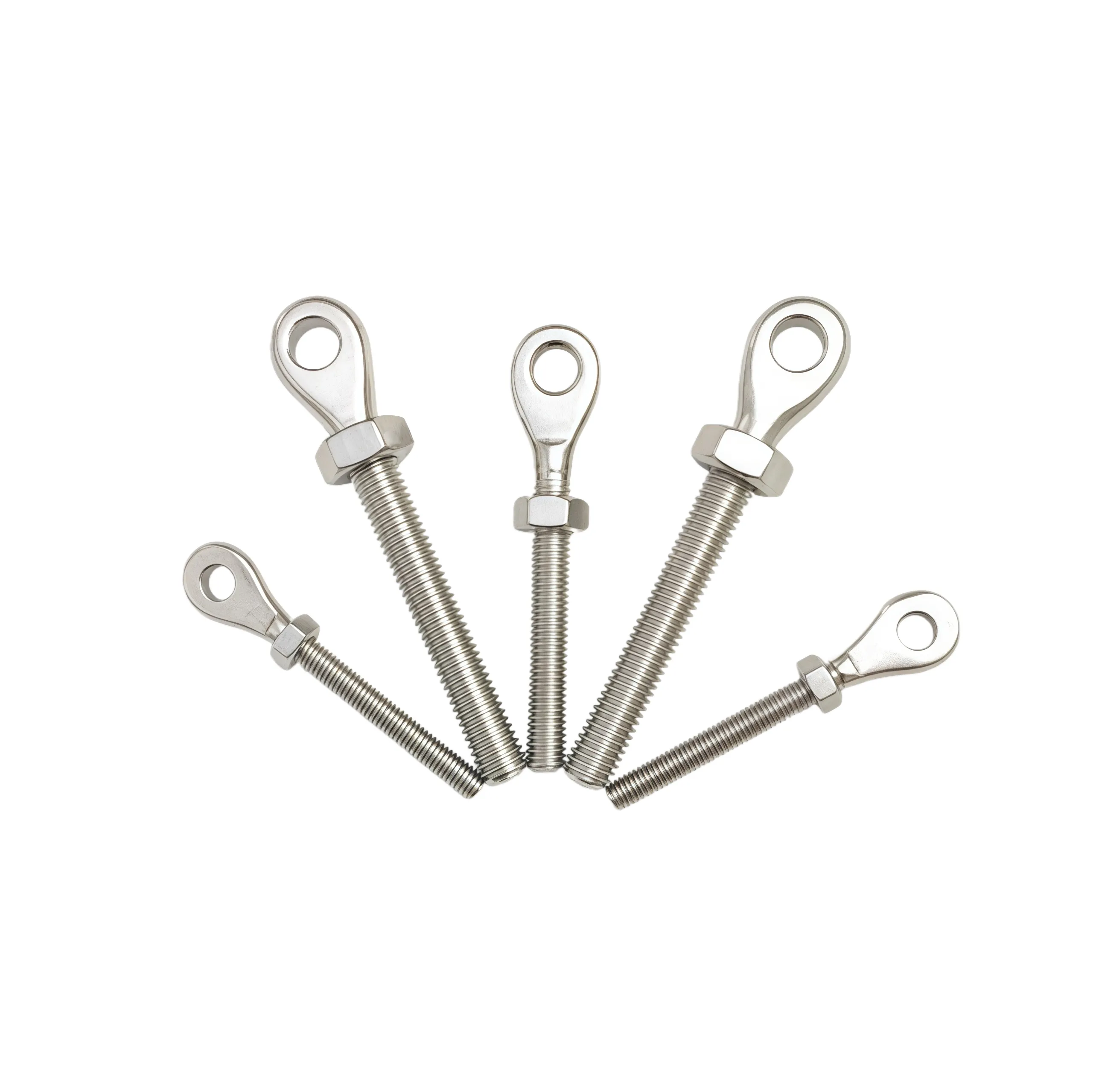

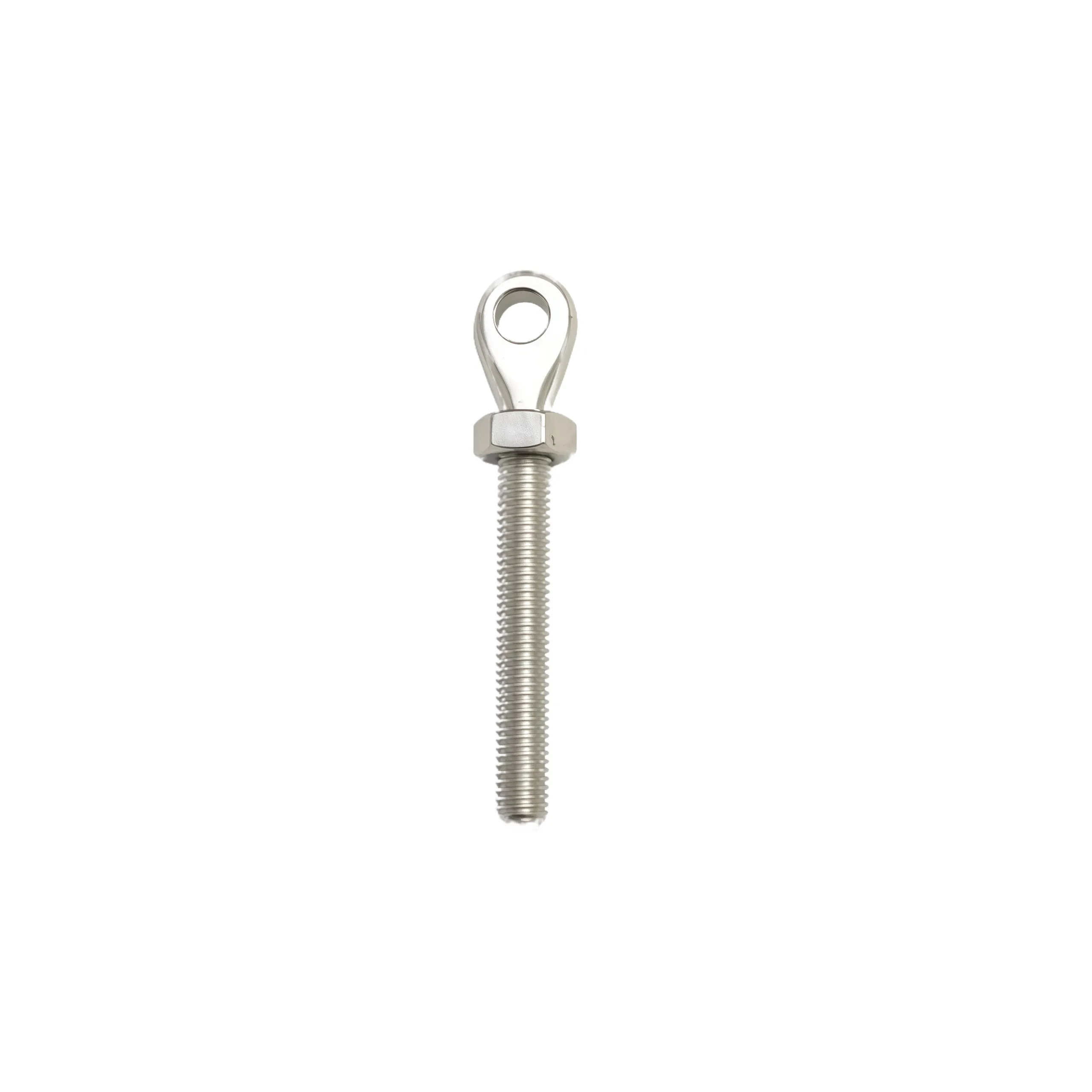

Precision-engineered rigging bolt. Manufactured for high-strength, heavy-duty lifting and secure connections in demanding applications.
Key Features:
Application focus: rigging hardware, load securement, lifting assemblies
Performance: high tensile strength, vibration resistance, reliable under dynamic loads
Typical sectors: industrial lifting, marine rigging, construction hoisting, offshore operations

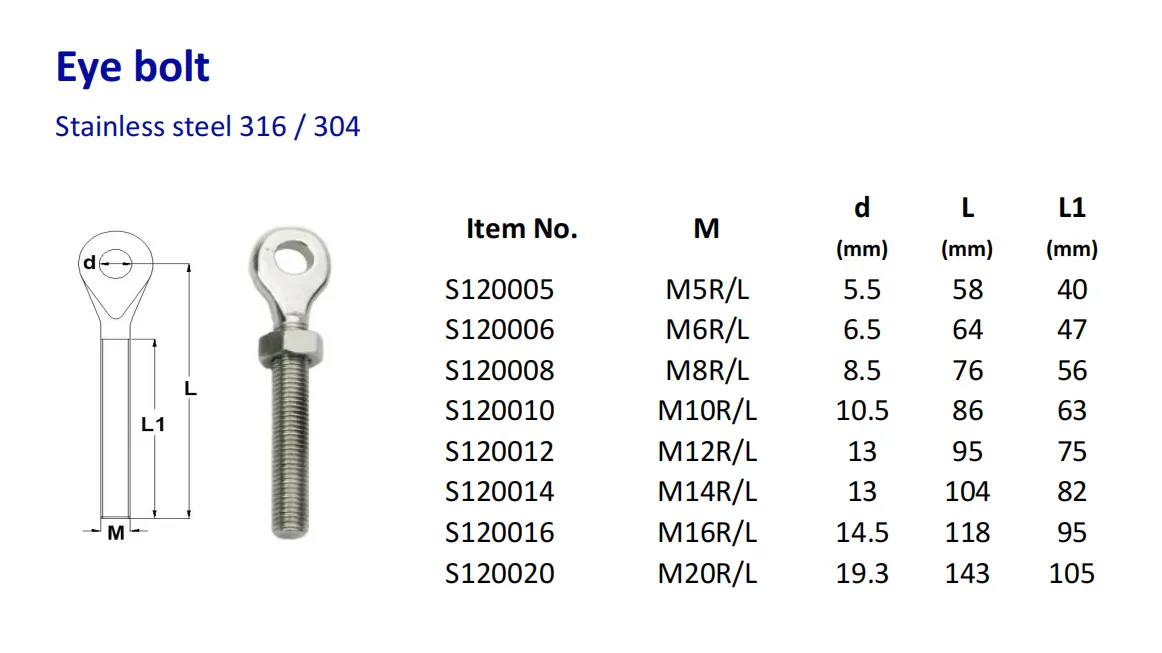

| Item No. | M | d (mm) | L (mm) | L1 (mm) |
|---|---|---|---|---|
| S120005 | M5R/L | 5.5 | 58 | 40 |
| S120006 | M6R/L | 6.5 | 64 | 47 |
| S120008 | M8R/L | 8.5 | 76 | 56 |
| S120010 | M10R/L | 10.5 | 86 | 63 |
| S120012 | M12R/L | 13 | 95 | 75 |
| S120014 | M14R/L | 13 | 104 | 82 |
| S120016 | M16R/L | 14.5 | 118 | 95 |
| S120020 | M20R/L | 19.3 | 143 | 105 |
