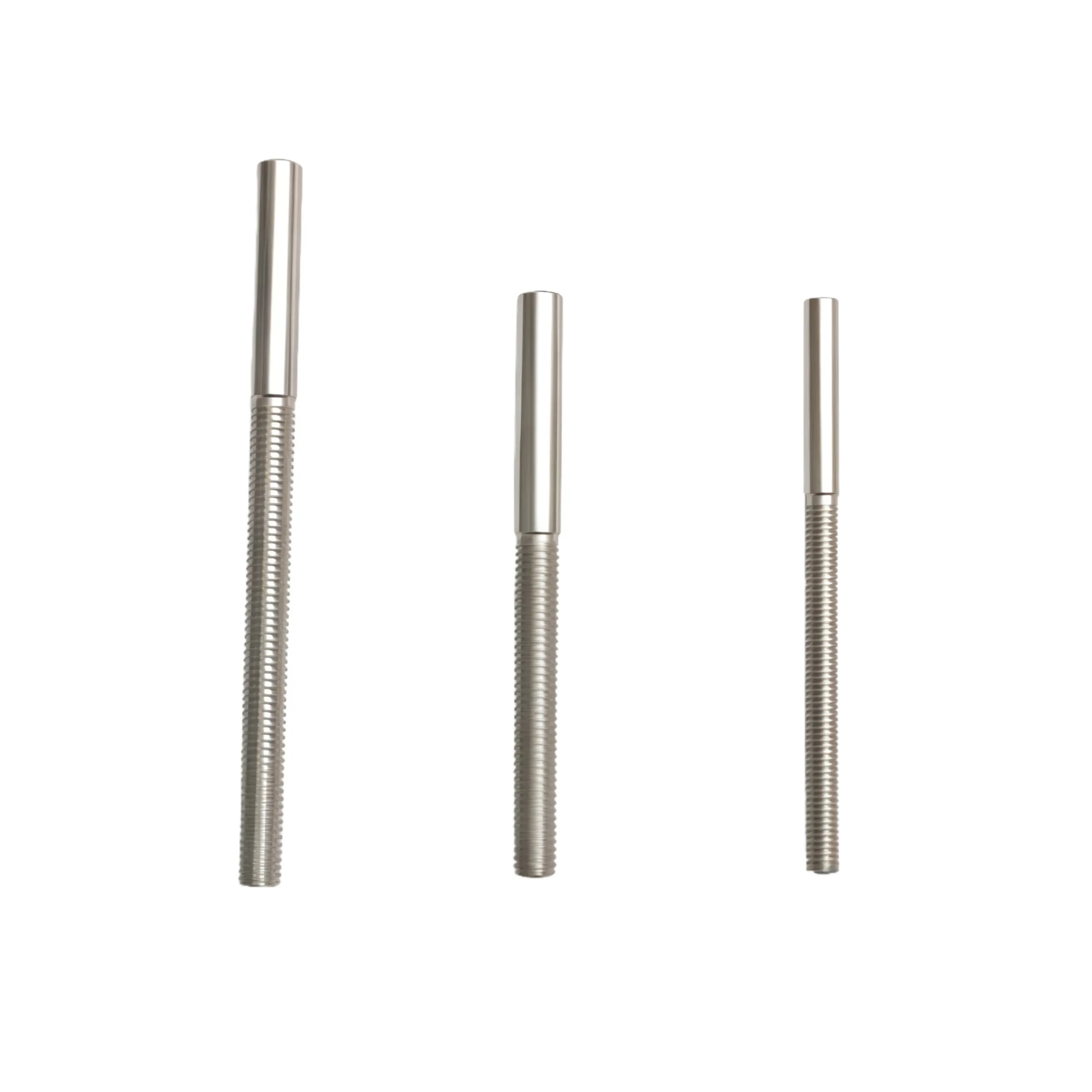

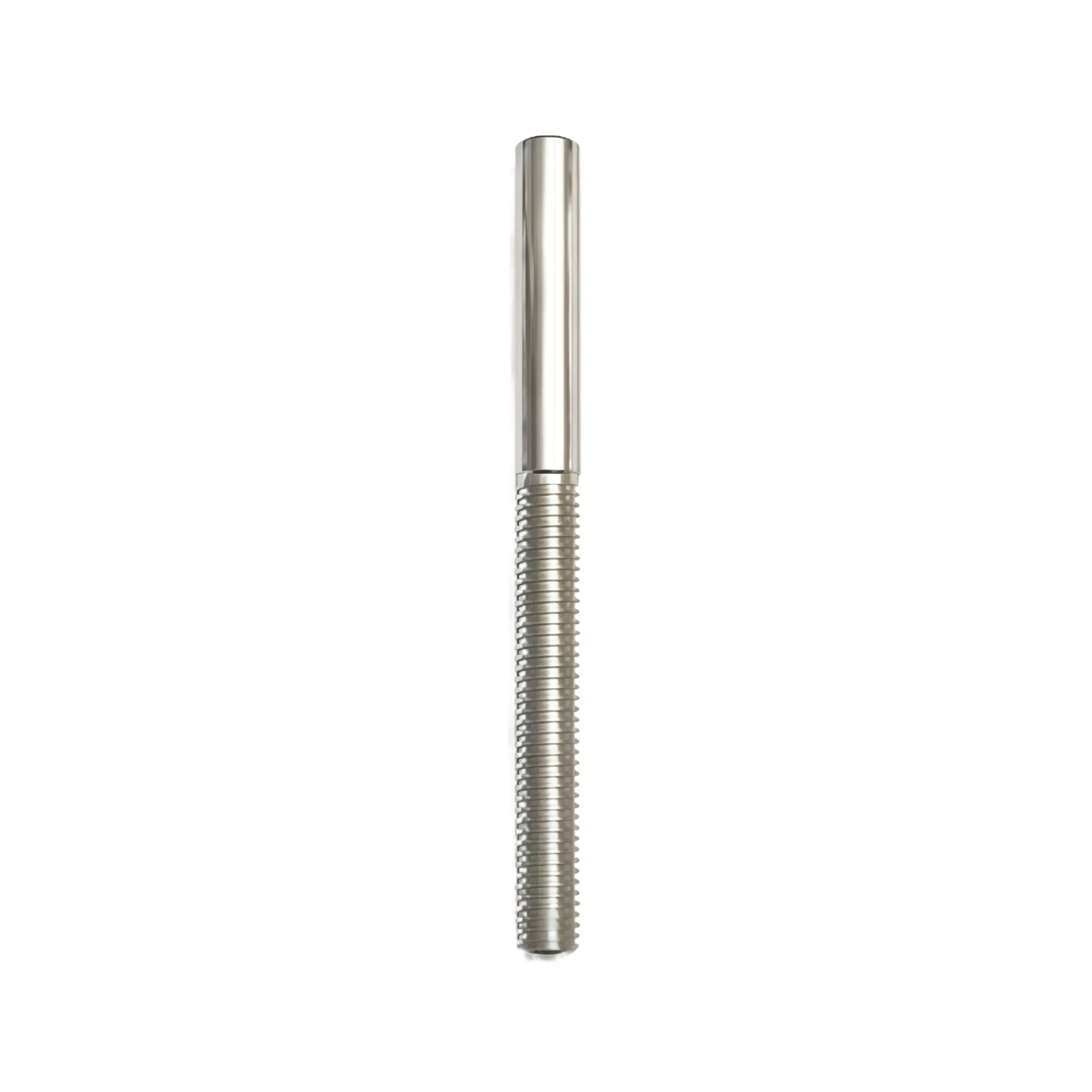

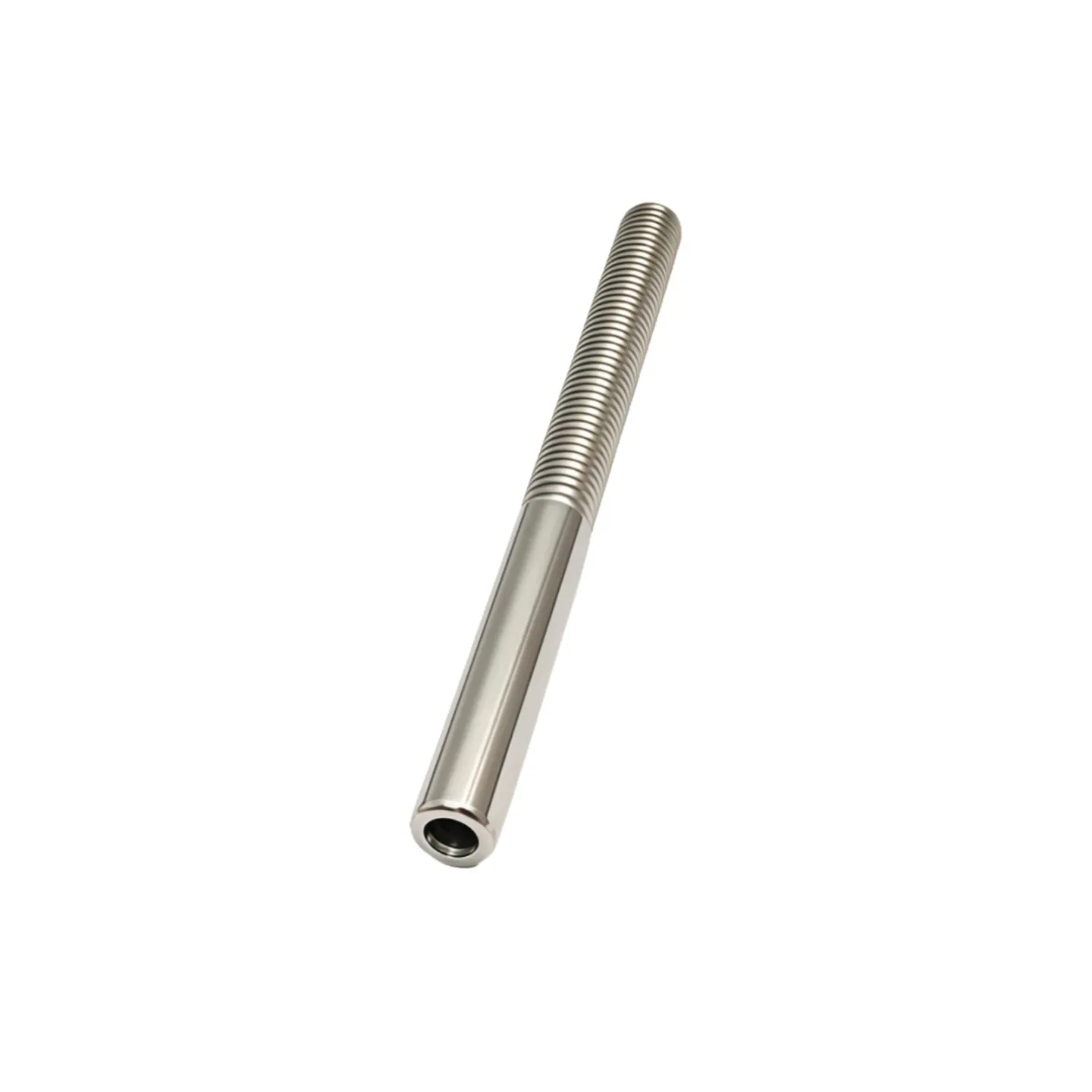

stainless steel Swage stud
Product Details
Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:
A corrosion-resistant termination system combining a cold-pressed stud terminal. Crafted from marine-grade 304/316 stainless steel, it creates permanent, vibration-proof connections for wire ropes. Ideal for rigging systems requiring secure yet adjustable endpoints in harsh environments.

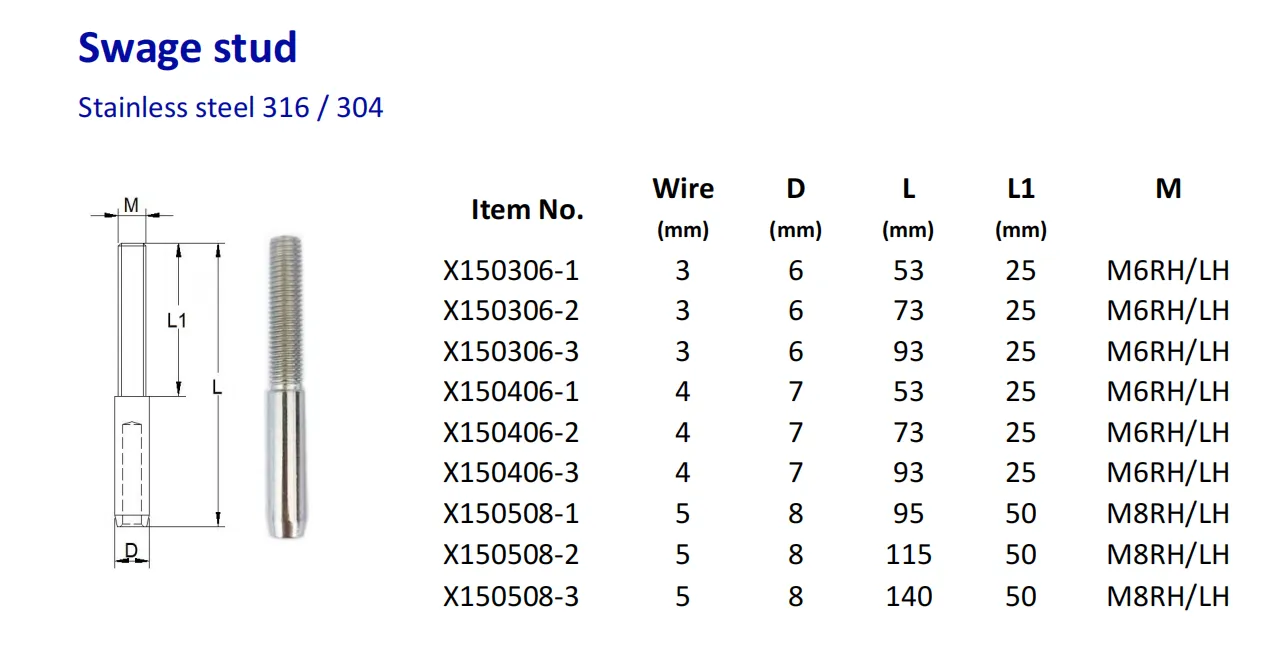

Specifications
| Item No. | Wire (mm) | D (mm) | L (mm) | L1 (mm) | M |
|---|---|---|---|---|---|
| X150306-1 | 3 | 6 | 53 | 25 | M6RH/LH |
| X150306-2 | 3 | 6 | 73 | 25 | M6RH/LH |
| X150306-3 | 3 | 6 | 93 | 25 | M6RH/LH |
| X150406-1 | 4 | 7 | 53 | 25 | M6RH/LH |
| X150406-2 | 4 | 7 | 73 | 25 | M6RH/LH |
| X150406-3 | 4 | 7 | 93 | 25 | M6RH/LH |
| X150508-1 | 5 | 8 | 95 | 50 | M8RH/LH |
| X150508-2 | 5 | 8 | 115 | 50 | M8RH/LH |
| X150508-3 | 5 | 8 | 140 | 50 | M8RH/LH |
