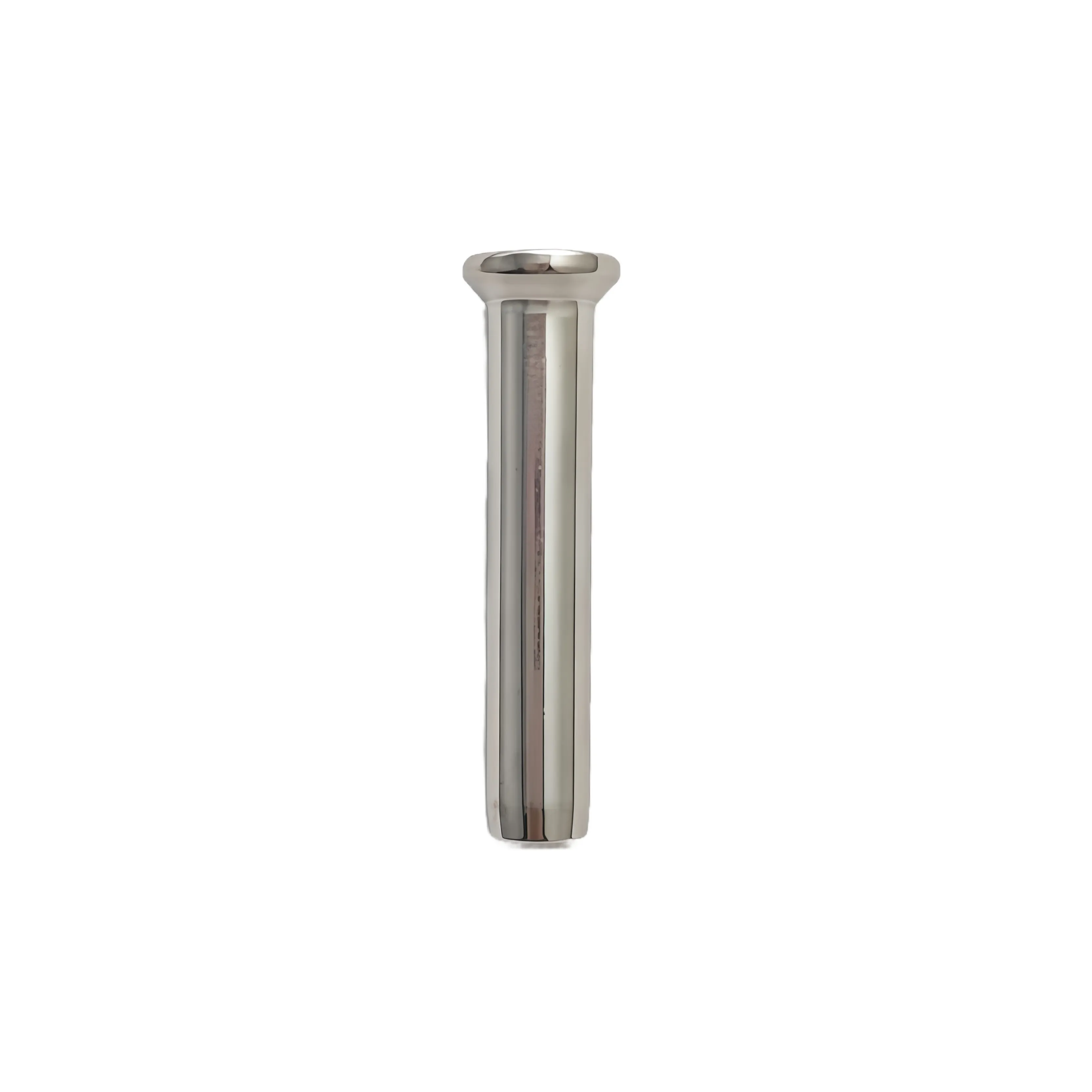

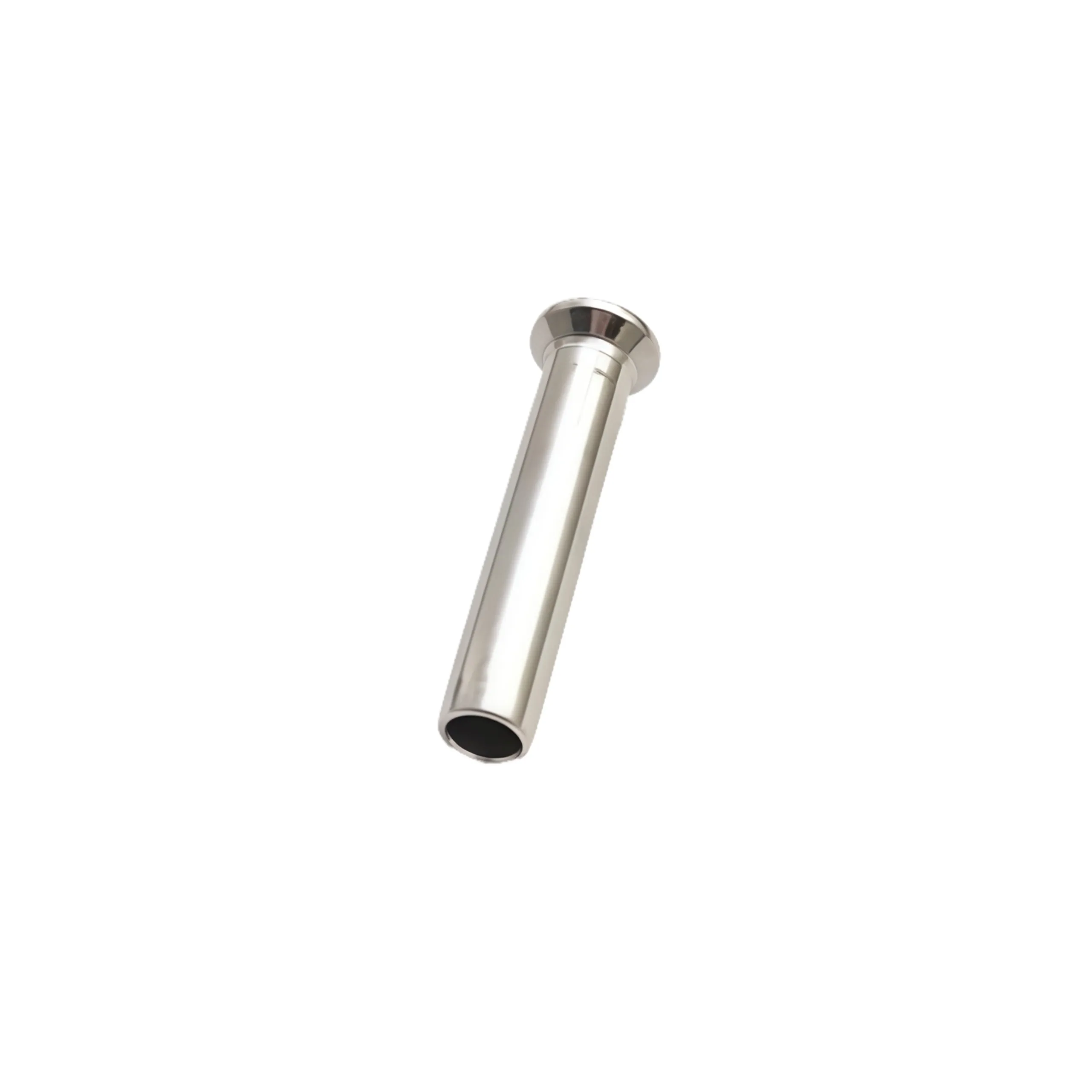

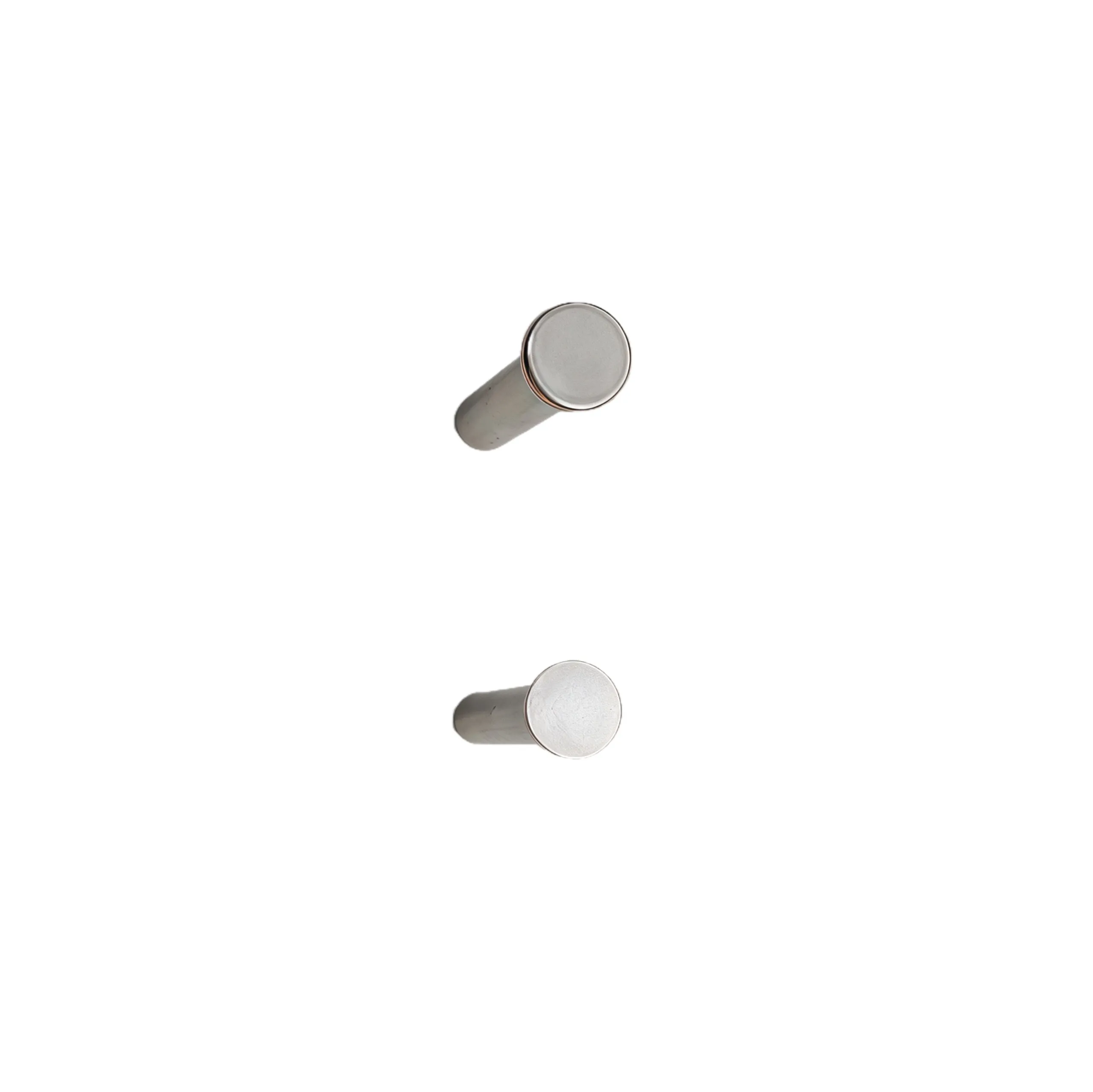

stainless steel Countersunk terminal
Product Details
Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:
A corrosion-resistant termination system combining a cold-pressed stud terminal. Crafted from marine-grade 304/316 stainless steel, it creates permanent, vibration-proof connections for wire ropes. Ideal for rigging systems requiring secure yet adjustable endpoints in harsh environments.

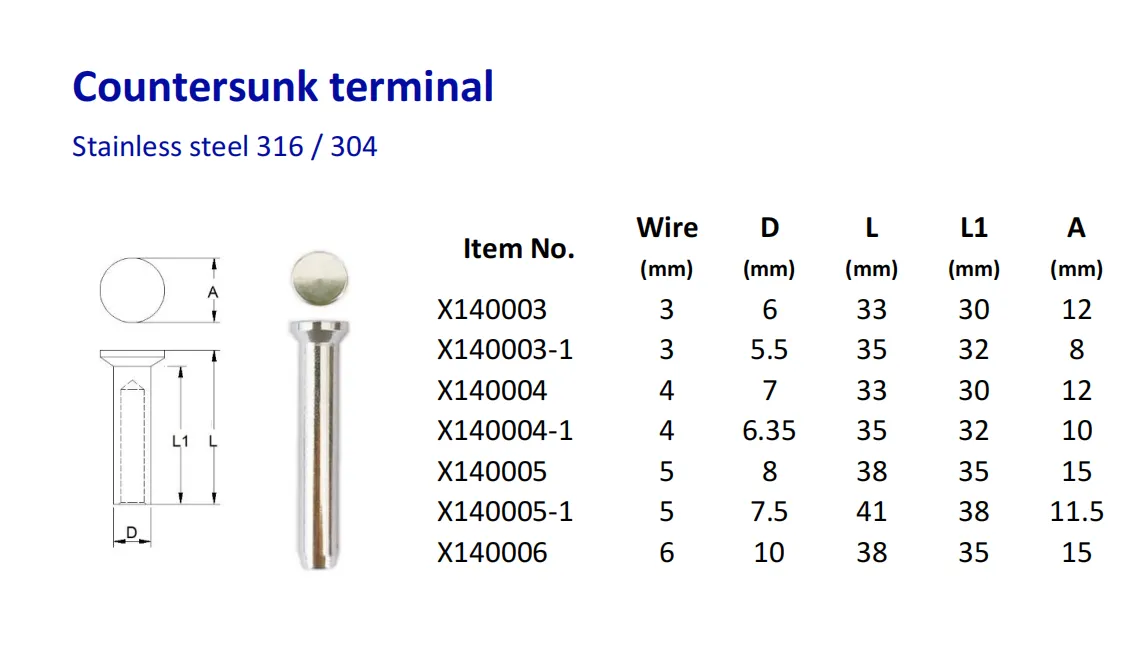

Specifications
| Item No. | Wire (mm) | D (mm) | L (mm) | L1 (mm) | A (mm) |
|---|---|---|---|---|---|
| X140003 | 3 | 6 | 33 | 30 | 12 |
| X140003-1 | 3 | 5.5 | 35 | 32 | 8 |
| X140004 | 4 | 7 | 33 | 30 | 12 |
| X140004-1 | 4 | 6.35 | 35 | 32 | 10 |
| X140005 | 5 | 8 | 38 | 35 | 15 |
| X140005-1 | 5 | 7.5 | 41 | 38 | 11.5 |
| X140006 | 6 | 10 | 38 | 35 | 15 |
