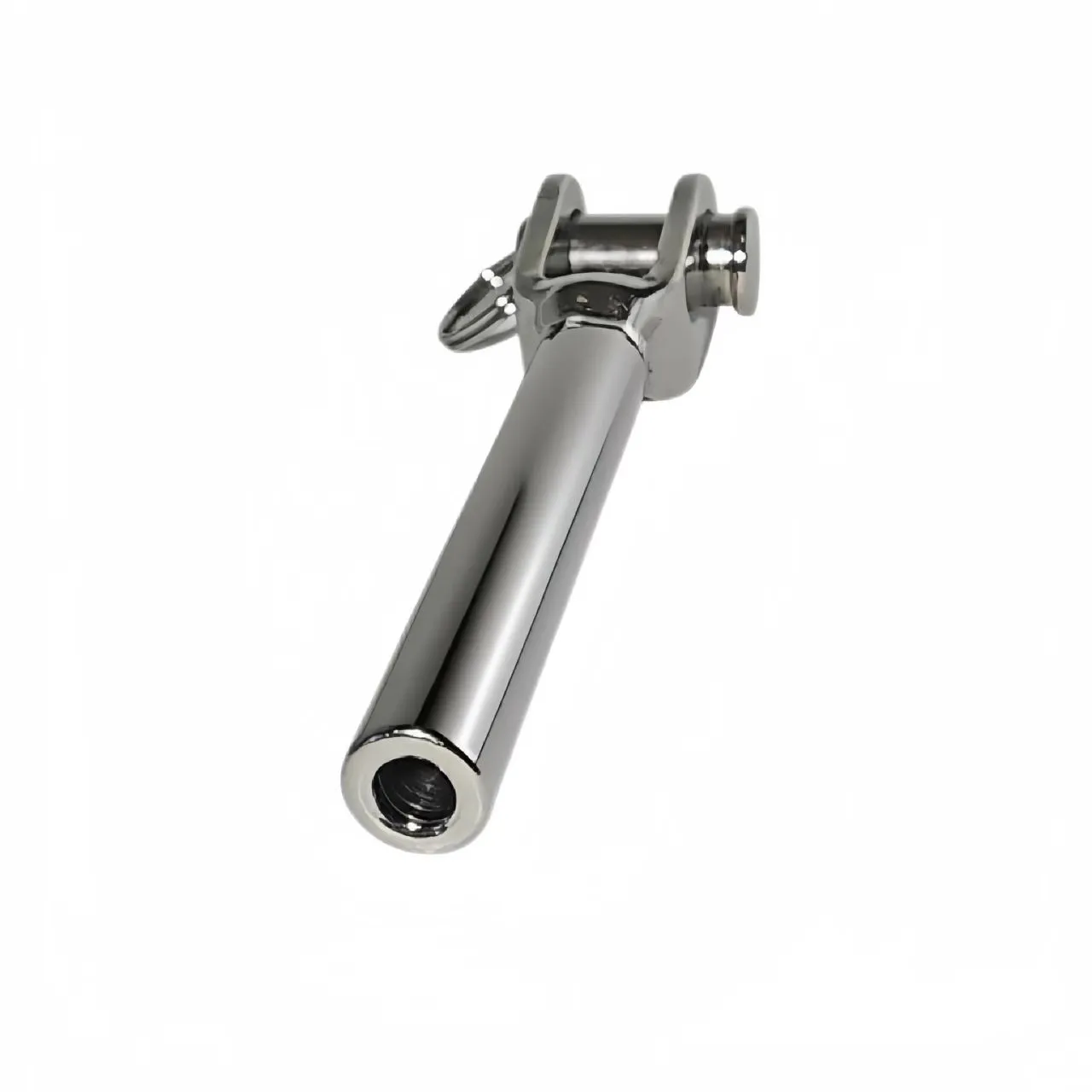

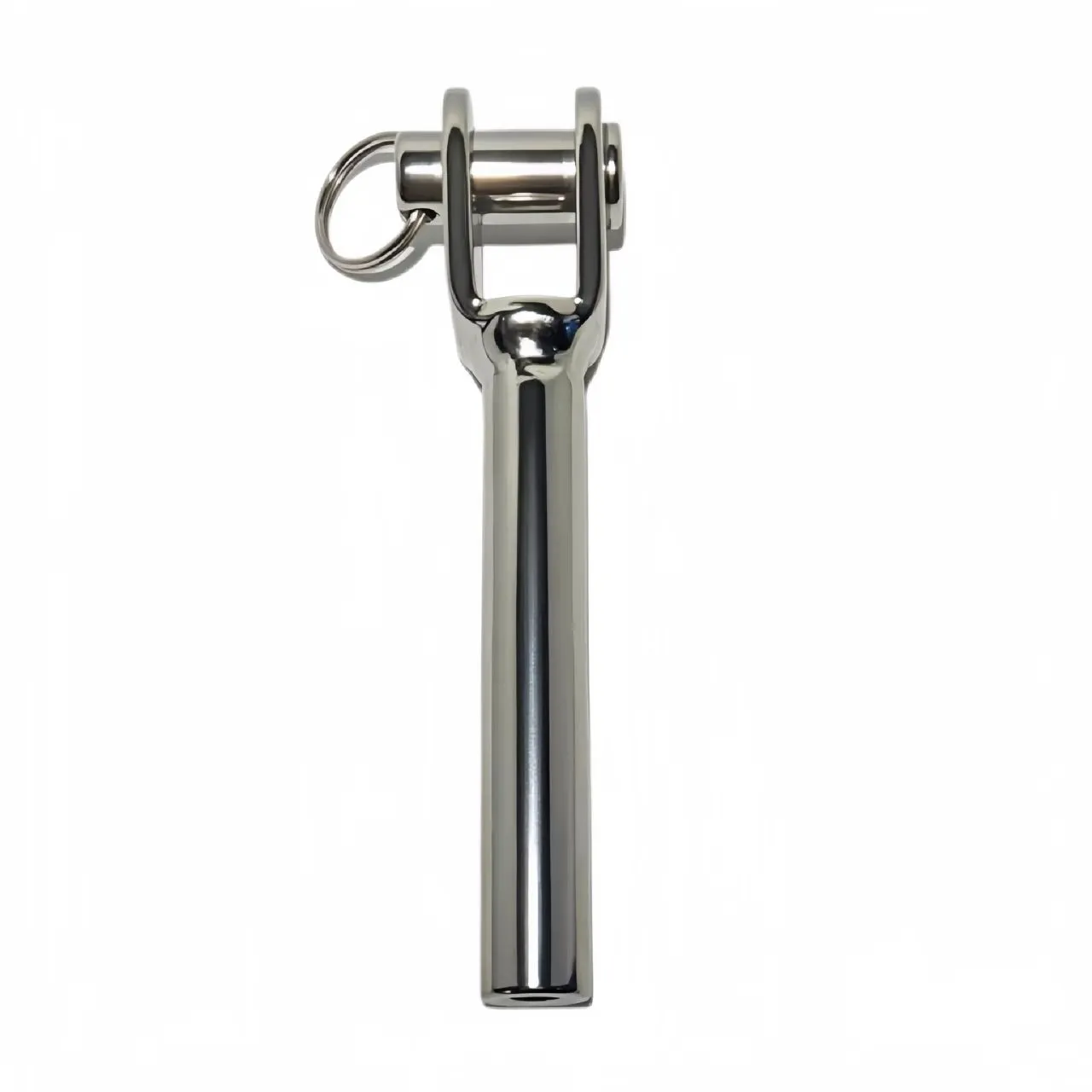

stainless steel wire rope swage terminal fork
Product Details
Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:
A corrosion-resistant termination system combining a cold-pressed stud terminal. Crafted from marine-grade 304/316 stainless steel, it creates permanent, vibration-proof connections for wire ropes. Ideal for rigging systems requiring secure yet adjustable endpoints in harsh environments.

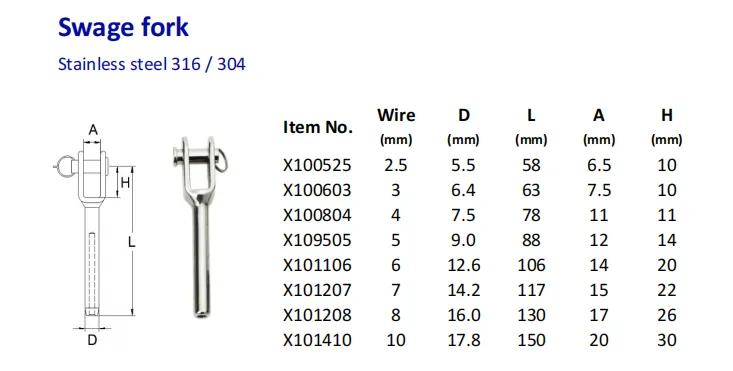

Specifications
| Item No. | Wire (mm) | D (mm) | L (mm) | A (mm) | H (mm) |
|---|---|---|---|---|---|
| X100525 | 2.5 | 5.5 | 58 | 6.5 | 10 |
| X100603 | 3 | 6.4 | 63 | 7.5 | 10 |
| X100804 | 4 | 7.5 | 78 | 11 | 11 |
| X109505 | 5 | 9.0 | 88 | 12 | 14 |
| X101106 | 6 | 12.6 | 106 | 14 | 20 |
| X101207 | 7 | 14.2 | 117 | 15 | 22 |
| X101208 | 8 | 16.0 | 130 | 17 | 26 |
| X101410 | 10 | 17.8 | 150 | 20 | 30 |
