Product Details

Material:

316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.

Application:

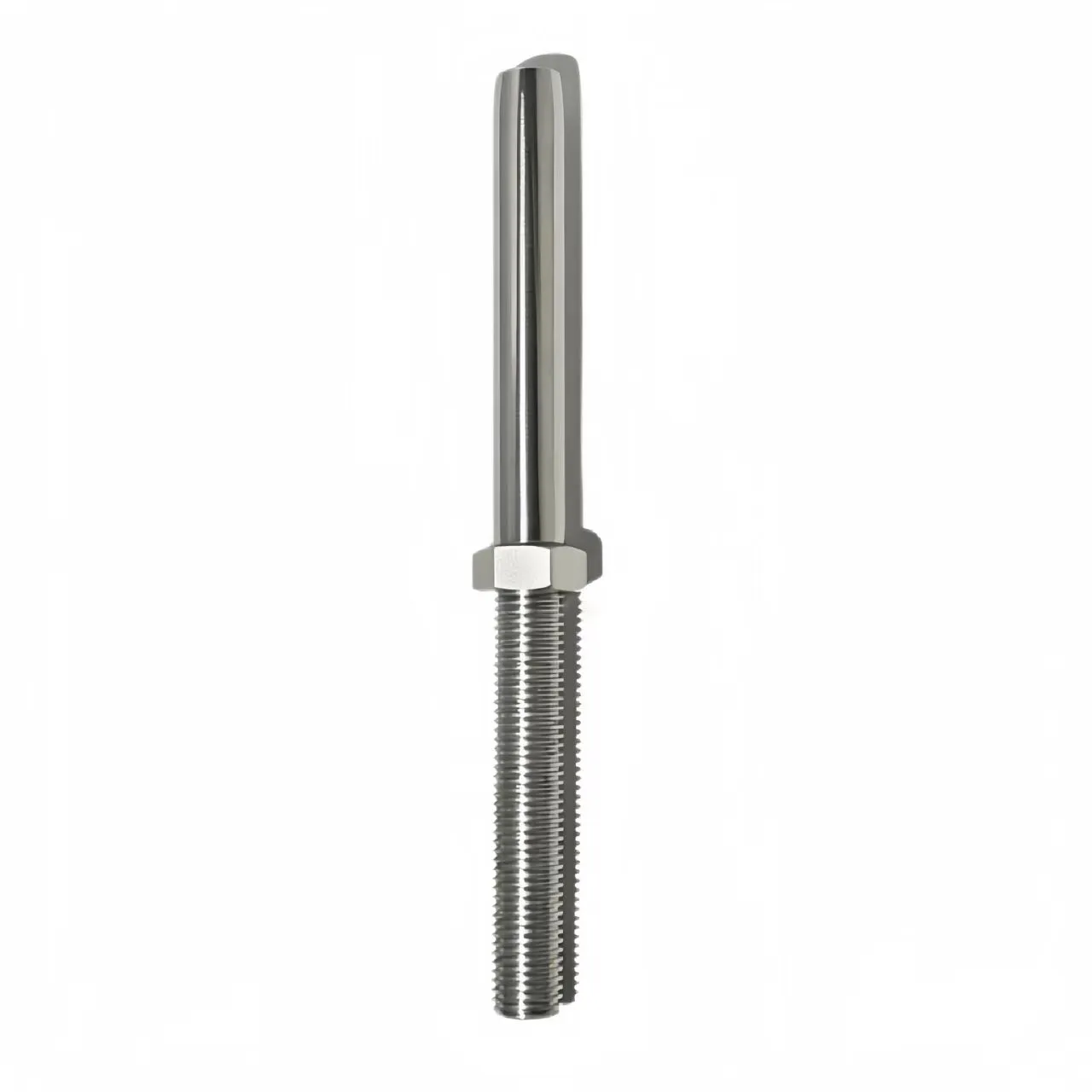

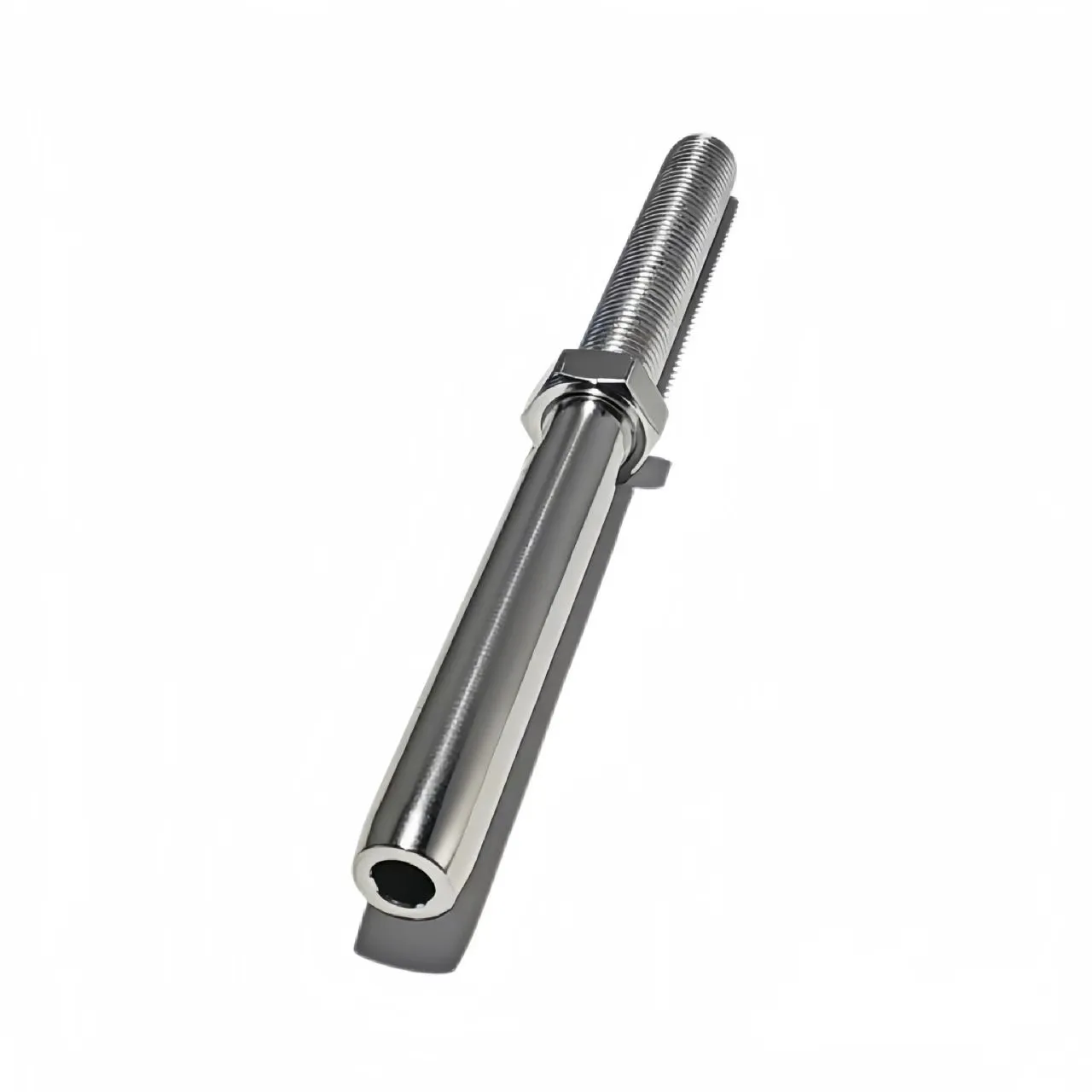

A corrosion-resistant termination system combining a cold-pressed stud terminal with a matching nut. Crafted from marine-grade 304/316 stainless steel, it creates permanent, vibration-proof connections for wire ropes while enabling adjustable tensioning via the integrated nut. Ideal for rigging systems requiring secure yet adjustable endpoints in harsh environments.

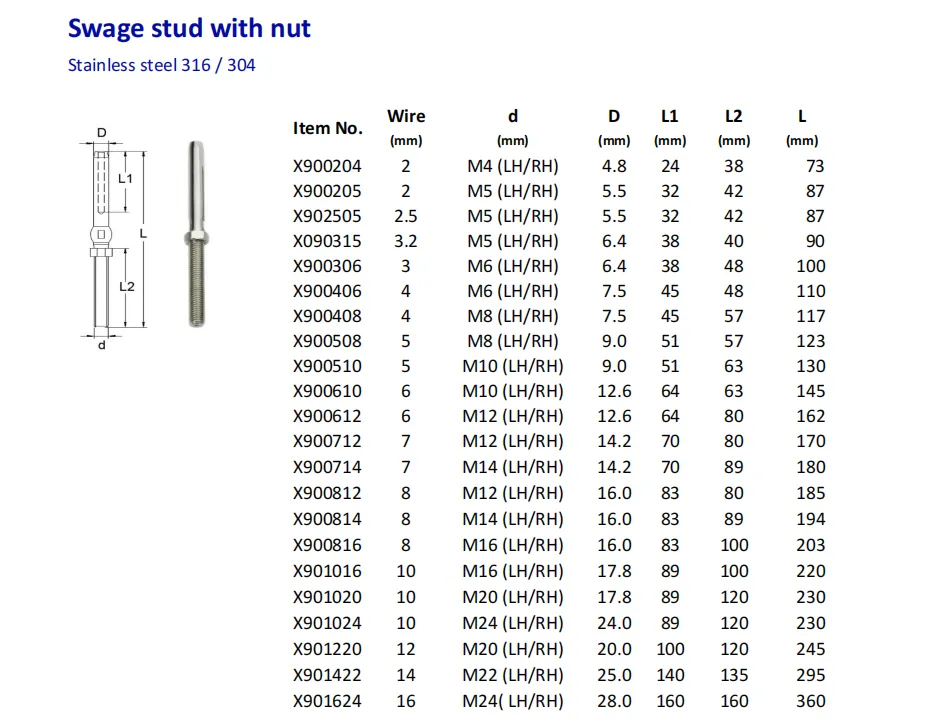

Specifications

Item No.Wire (mm)d (mm)D (mm)L1 (mm)L2 (mm)L (mm)
X9002042M4 (LH/RH)4.8243873
X9002052M5 (LH/RH)5.5324287
X9025052.5M5 (LH/RH)5.5324287
X0903153.2M5 (LH/RH)6.4384090
X9003063M6 (LH/RH)6.43848100
X9004064M6 (LH/RH)7.54548110
X9004084M8 (LH/RH)7.54557117
X9005085M8 (LH/RH)9.05157123
X9005105M10 (LH/RH)9.05163130
X9006106M10 (LH/RH)12.66463145
X9006126M12 (LH/RH)12.66480162
X9007127M12 (LH/RH)14.27080170
X9007147M14 (LH/RH)14.27089180
X9008128M12 (LH/RH)16.08380185
X9008148M14 (LH/RH)16.08389194
X9008168M16 (LH/RH)16.083100203
X90101610M16 (LH/RH)17.889100220
X90102010M20 (LH/RH)17.889120230
X90102410M24 (LH/RH)24.089120230
X90122012M20 (LH/RH)20.0100120245
X90142214M22 (LH/RH)25.0140135295
X90162416M24 (LH/RH)28.0160160360
