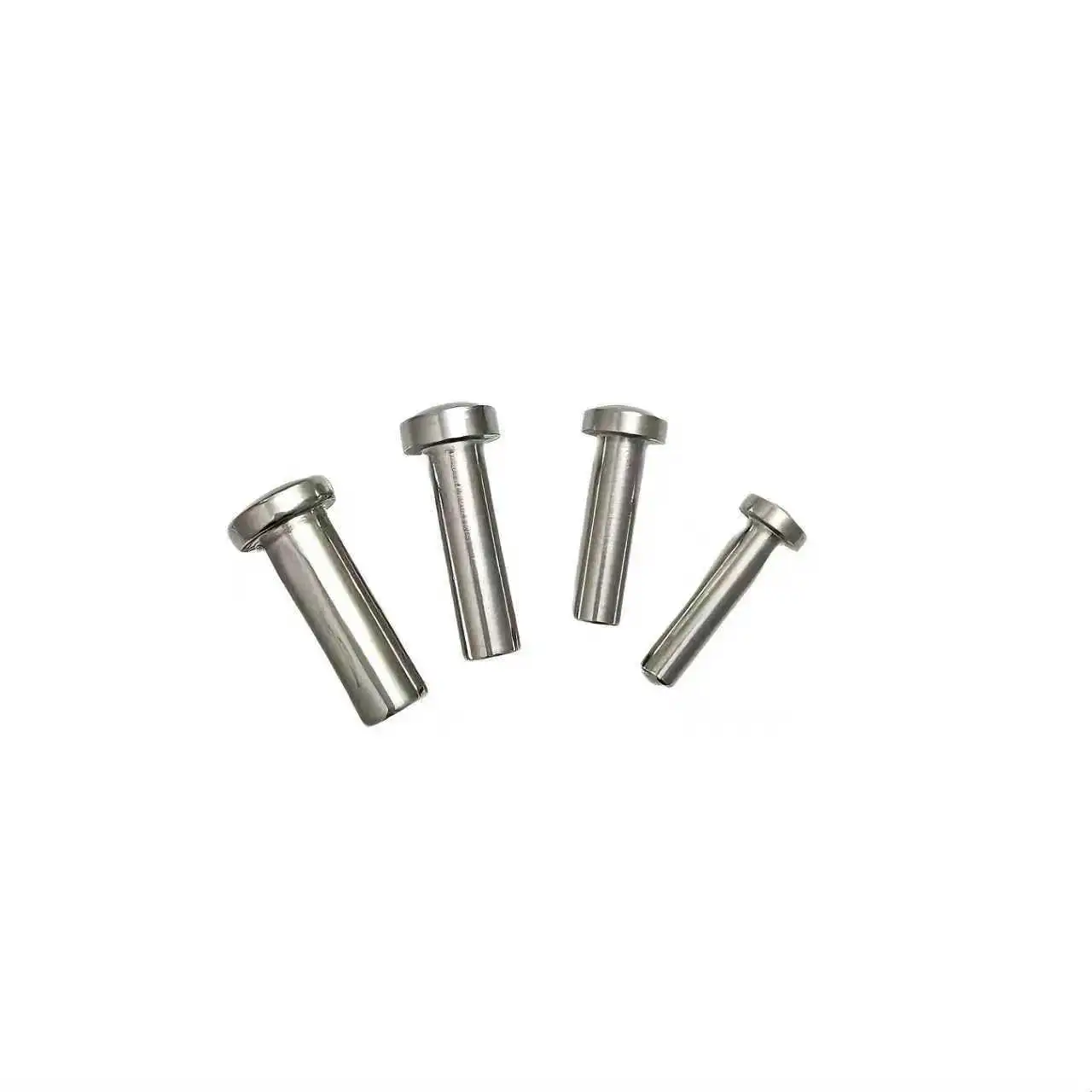

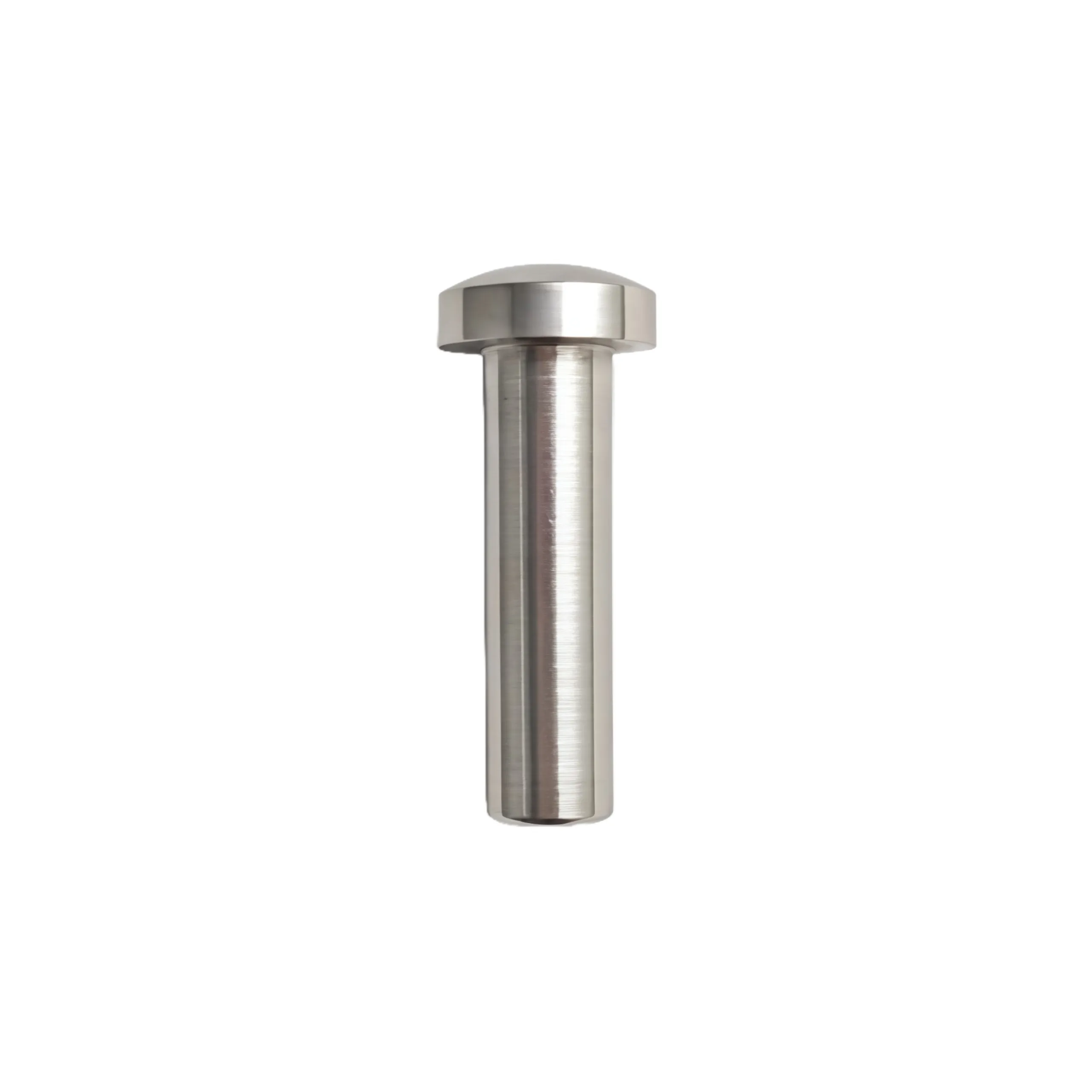

stainless steel Internal threaded tensioner Dome head
Product Details
Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:
Explore our Internal threaded tensioner Dome head, a high - quality product designed for reliable performance. With its internal threaded design, it ensures a secure connection. The dome head offers enhanced durability and aesthetics. Ideal for various industrial applications, this tensioner provides efficient tensioning solutions. It meets high - standard quality requirements, guaranteeing long - term use. Shop now for a top - notch internal threaded tensioner with a dome head.

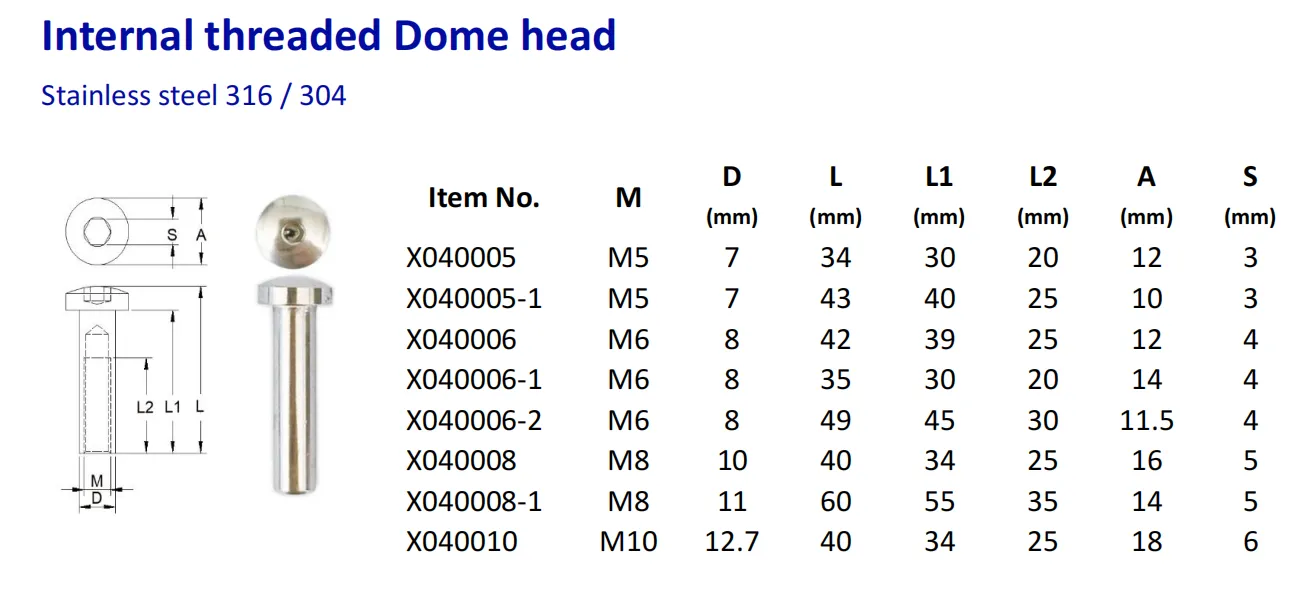

Specifications
| Item No. | M | D (mm) | L (mm) | L1 (mm) | L2 (mm) | A (mm) | S (mm) |
|---|---|---|---|---|---|---|---|
| X040005 | M5 | 7 | 34 | 30 | 20 | 12 | 3 |
| X040005-1 | M5 | 7 | 43 | 40 | 25 | 10 | 3 |
| X040006 | M6 | 8 | 42 | 39 | 25 | 12 | 4 |
| X040006-1 | M6 | 8 | 35 | 30 | 20 | 14 | 4 |
| X040006-2 | M6 | 8 | 49 | 45 | 30 | 11.5 | 4 |
| X040008 | M8 | 10 | 40 | 34 | 25 | 16 | 5 |
| X040008-1 | M8 | 11 | 60 | 55 | 35 | 14 | 5 |
| X040010 | M10 | 12.7 | 40 | 34 | 25 | 18 | 6 |
