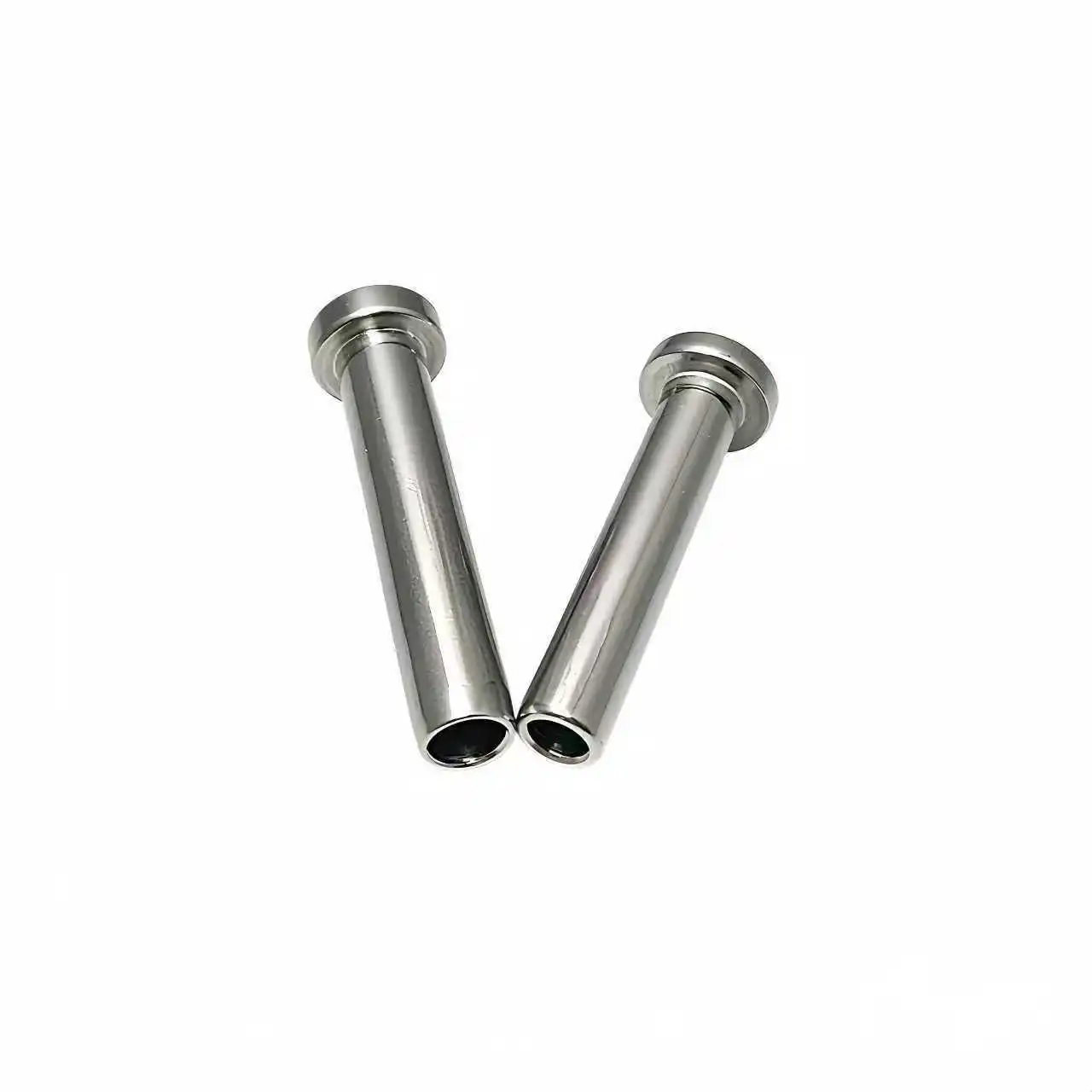

stainess steel flat head terminal
Product Details
Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:
A corrosion-resistant termination system combining a cold-pressed stud terminal. Crafted from marine-grade 304/316 stainless steel, it creates permanent, vibration-proof connections for wire ropes. Ideal for rigging systems requiring secure yet adjustable endpoints in harsh environments.

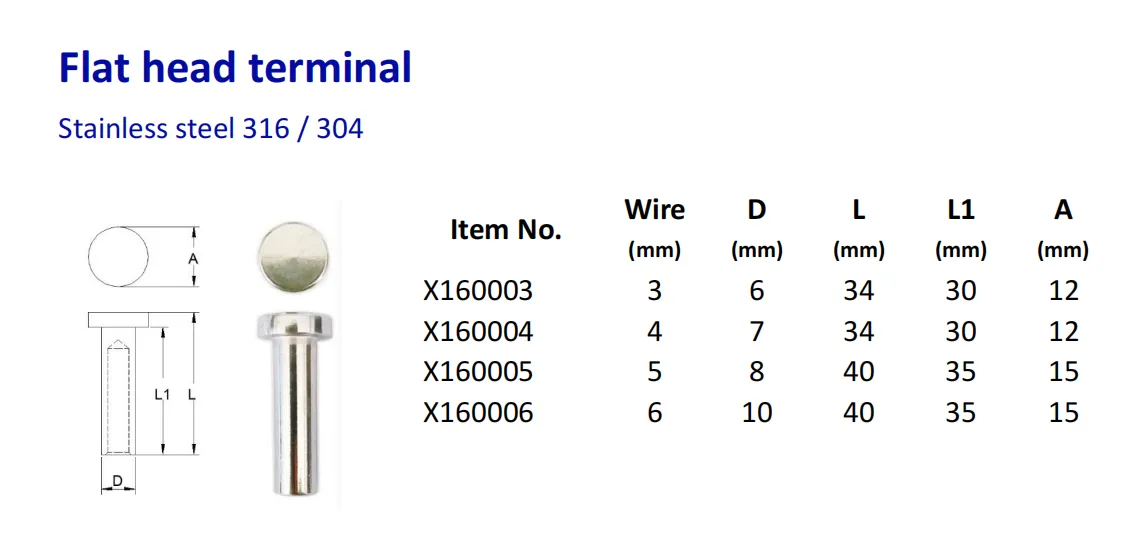

Specifications
| Item No. | Wire (mm) | D (mm) | L (mm) | L1 (mm) | A (mm) |
|---|---|---|---|---|---|
| X160003 | 3 | 6 | 34 | 30 | 12 |
| X160004 | 4 | 7 | 34 | 30 | 12 |
| X160005 | 5 | 8 | 40 | 35 | 15 |
| X160006 | 6 | 10 | 40 | 35 | 15 |
