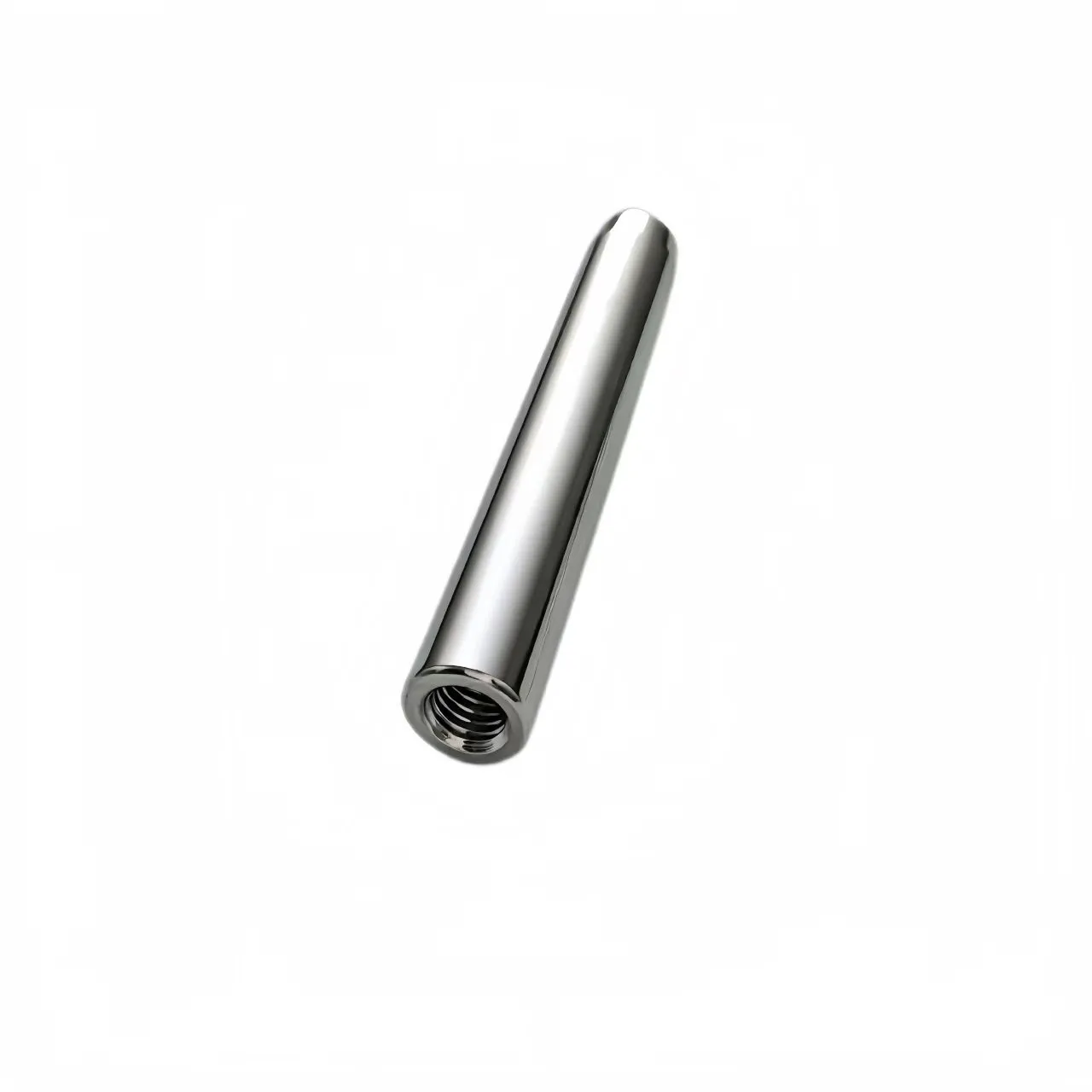

stainless steel Internal threaded swage terminal
Product Details
Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:
A corrosion-resistant termination system combining a cold-pressed stud terminal with a matching nut. Crafted from marine-grade 304/316 stainless steel, it creates permanent, vibration-proof connections for wire ropes while enabling adjustable tensioning via the integrated nut. Ideal for rigging systems requiring secure yet adjustable endpoints in harsh environments.

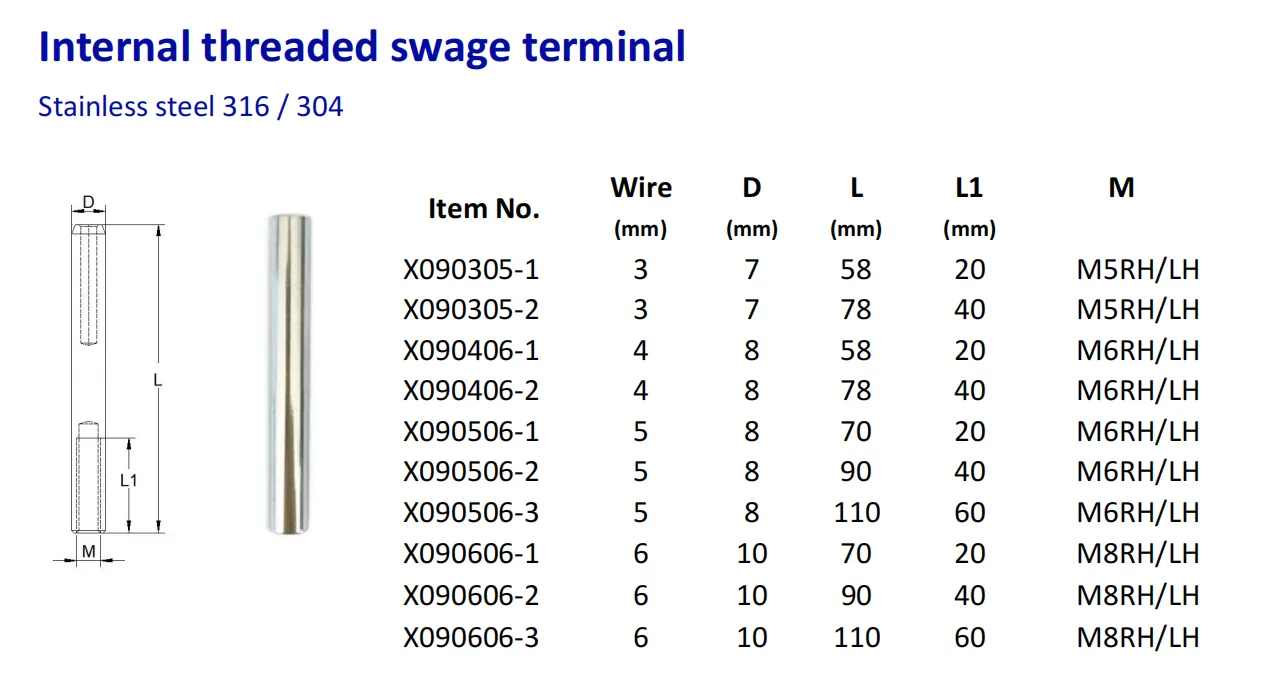

Specifications
| Item No. | Wire (mm) | D (mm) | L (mm) | L1 (mm) | M |
|---|---|---|---|---|---|
| X090305-1 | 3 | 7 | 58 | 20 | M5RH/LH |
| X090305-2 | 3 | 7 | 78 | 40 | M5RH/LH |
| X090406-1 | 4 | 8 | 58 | 20 | M6RH/LH |
| X090406-2 | 4 | 8 | 78 | 40 | M6RH/LH |
| X090506-1 | 5 | 8 | 70 | 20 | M6RH/LH |
| X090506-2 | 5 | 8 | 90 | 40 | M6RH/LH |
| X090506-3 | 5 | 8 | 110 | 60 | M6RH/LH |
| X090606-1 | 6 | 10 | 70 | 20 | M8RH/LH |
| X090606-2 | 6 | 10 | 90 | 40 | M8RH/LH |
| X090606-3 | 6 | 10 | 110 | 60 | M8RH/LH |
