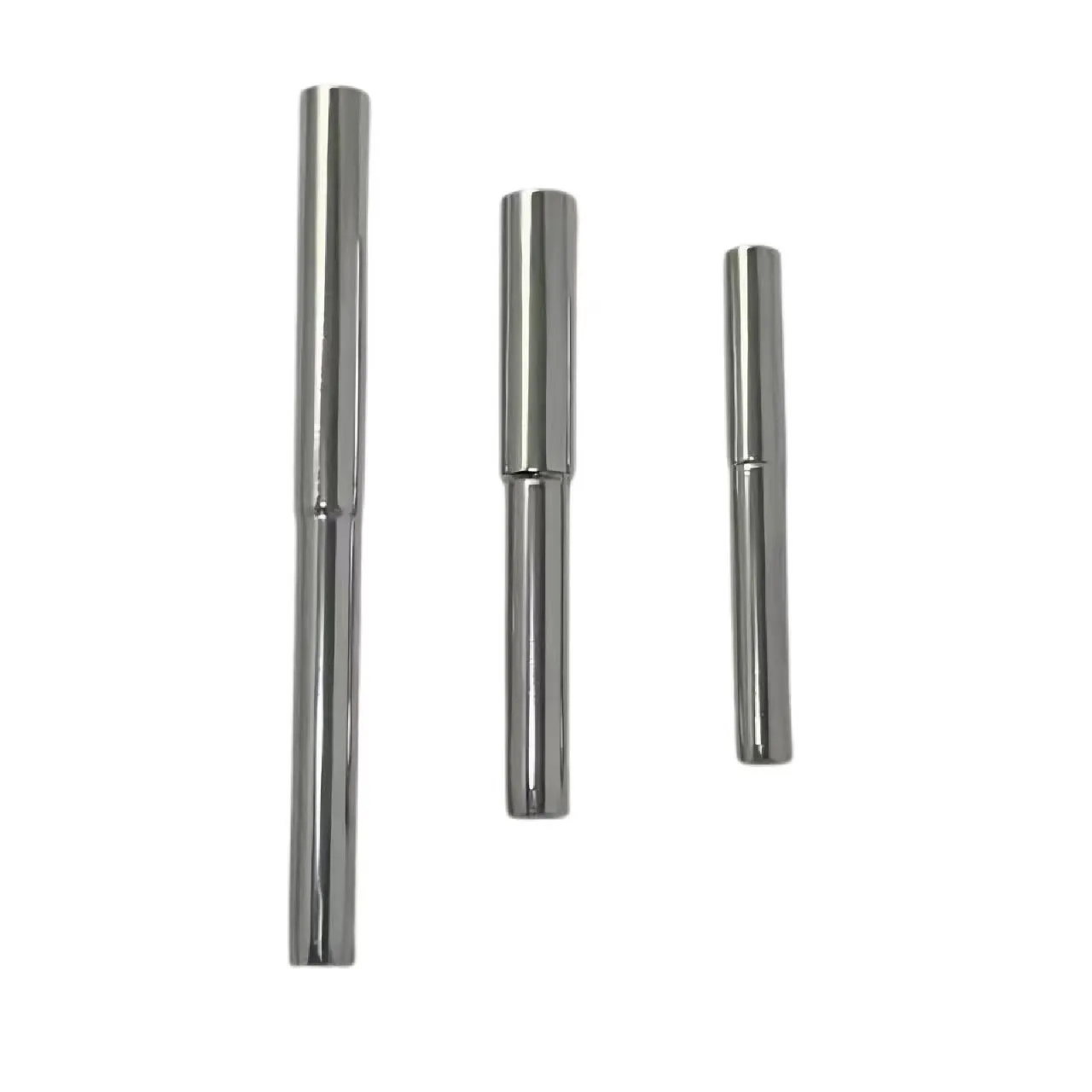

stainless steel swage terminal Internal threaded
Product Details
Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:
A corrosion-resistant termination system combining a cold-pressed stud terminal with a matching nut. Crafted from marine-grade 304/316 stainless steel, it creates permanent, vibration-proof connections for wire ropes while enabling adjustable tensioning via the integrated nut. Ideal for rigging systems requiring secure yet adjustable endpoints in harsh environments.

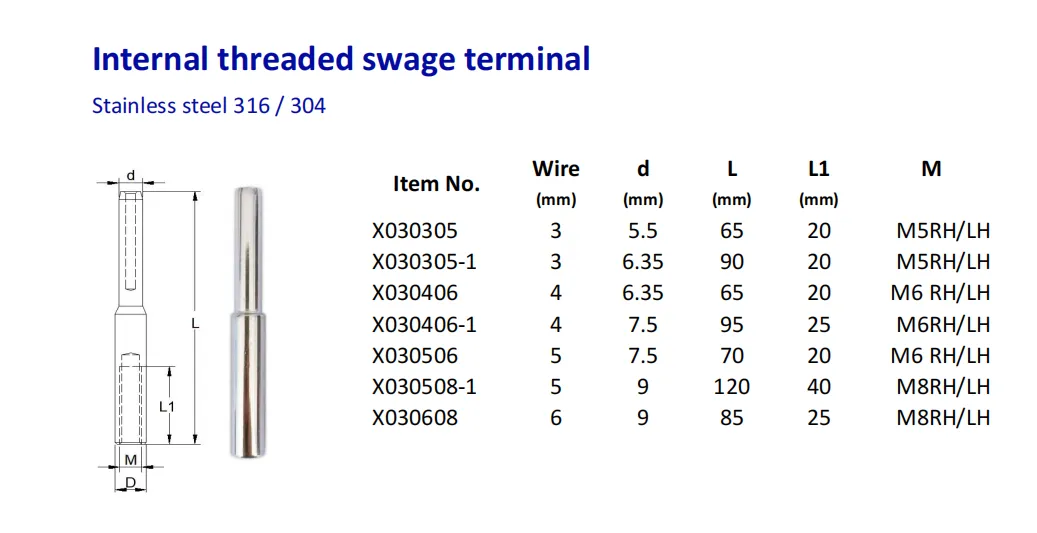

Specifications
| Item No. | Wire (mm) | d (mm) | L (mm) | L1 (mm) | M |
|---|---|---|---|---|---|
| X030305 | 3 | 5.5 | 65 | 20 | M5RH/LH |
| X030305-1 | 3 | 6.35 | 90 | 20 | M5RH/LH |
| X030406 | 4 | 6.35 | 65 | 20 | M6RH/LH |
| X030406-1 | 4 | 7.5 | 95 | 25 | M6RH/LH |
| X030506 | 5 | 7.5 | 70 | 20 | M6RH/LH |
| X030508-1 | 5 | 9 | 120 | 40 | M8RH/LH |
| X030608 | 6 | 9 | 85 | 25 | M8RH/LH |
