stainless steel wire rope swage stud
Product Details
Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:
A corrosion-resistant termination system combining a cold-pressed stud terminal with a matching nut. Crafted from marine-grade 304/316 stainless steel, it creates permanent, vibration-proof connections for wire ropes while enabling adjustable tensioning via the integrated nut. Ideal for rigging systems requiring secure yet adjustable endpoints in harsh environments.

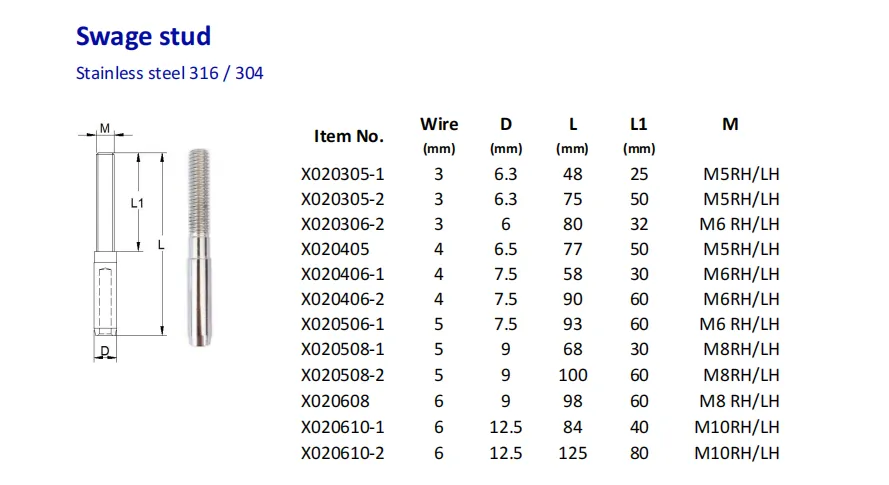

Specifications
| Item No. | Wire (mm) | D (mm) | L (mm) | L1 (mm) | M |
|---|---|---|---|---|---|
| X020305-1 | 3 | 6.3 | 48 | 25 | M5RH/LH |
| X020305-2 | 3 | 6.3 | 75 | 50 | M5RH/LH |
| X020306-2 | 3 | 6 | 80 | 32 | M6RH/LH |
| X020405 | 4 | 6.5 | 77 | 50 | M5RH/LH |
| X020406-1 | 4 | 7.5 | 58 | 30 | M6RH/LH |
| X020406-2 | 4 | 7.5 | 90 | 60 | M6RH/LH |
| X020506-1 | 5 | 7.5 | 93 | 60 | M6RH/LH |
| X020508-1 | 5 | 9 | 68 | 30 | M8RH/LH |
| X020508-2 | 5 | 9 | 100 | 60 | M8RH/LH |
| X020608 | 6 | 9 | 98 | 60 | M8RH/LH |
| X020610-1 | 6 | 12.5 | 84 | 40 | M10RH/LH |
| X020610-2 | 6 | 12.5 | 125 | 80 | M10RH/LH |
