Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:

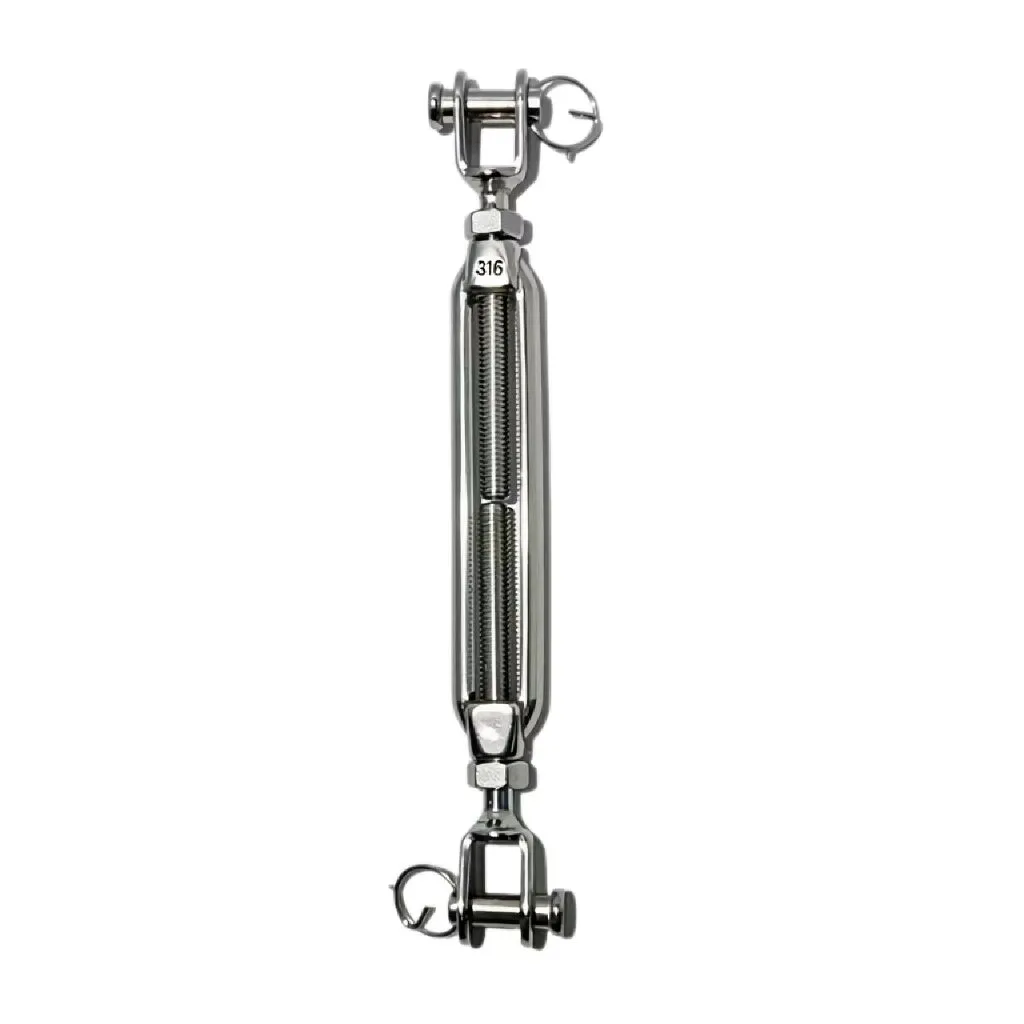

Turnbuckle: By rotating turnbuckle’s central body (or tube), it can loosen and tighten the threaded rods at its both ends synchronously (left thread on one end, right thread on the other end), while tightening wire rope or object connected to the threaded rods, or adjusting relative positions and angles between them. Due to their safety and reliability, they are used widely in construction, marine, heavy lifting, and building industries.

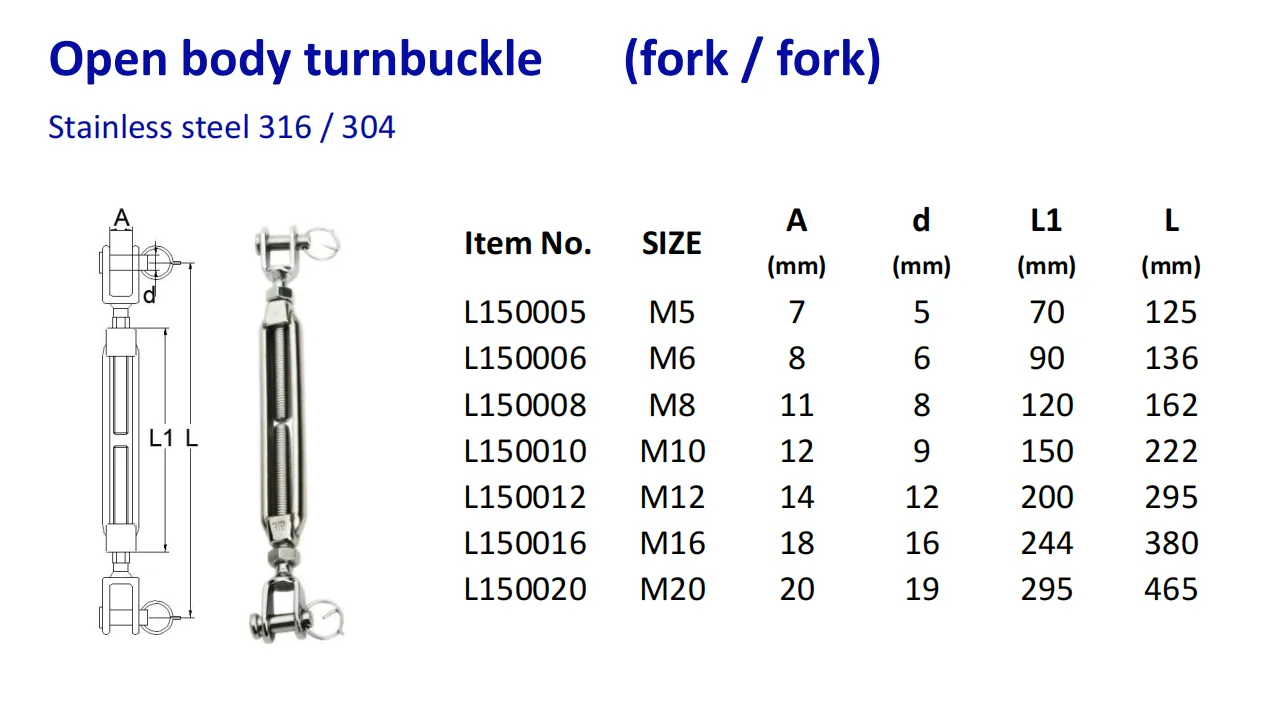

| Item No. | SIZE | A (mm) | d (mm) | L1 (mm) | L (mm) |
|---|---|---|---|---|---|
| L150005 | M5 | 7 | 5 | 70 | 125 |
| L150006 | M6 | 8 | 6 | 90 | 136 |
| L150008 | M8 | 11 | 8 | 120 | 162 |
| L150010 | M10 | 12 | 9 | 150 | 222 |
| L150012 | M12 | 14 | 12 | 200 | 295 |
| L150016 | M16 | 18 | 16 | 244 | 380 |
| L150020 | M20 | 20 | 19 | 295 | 465 |
