Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:

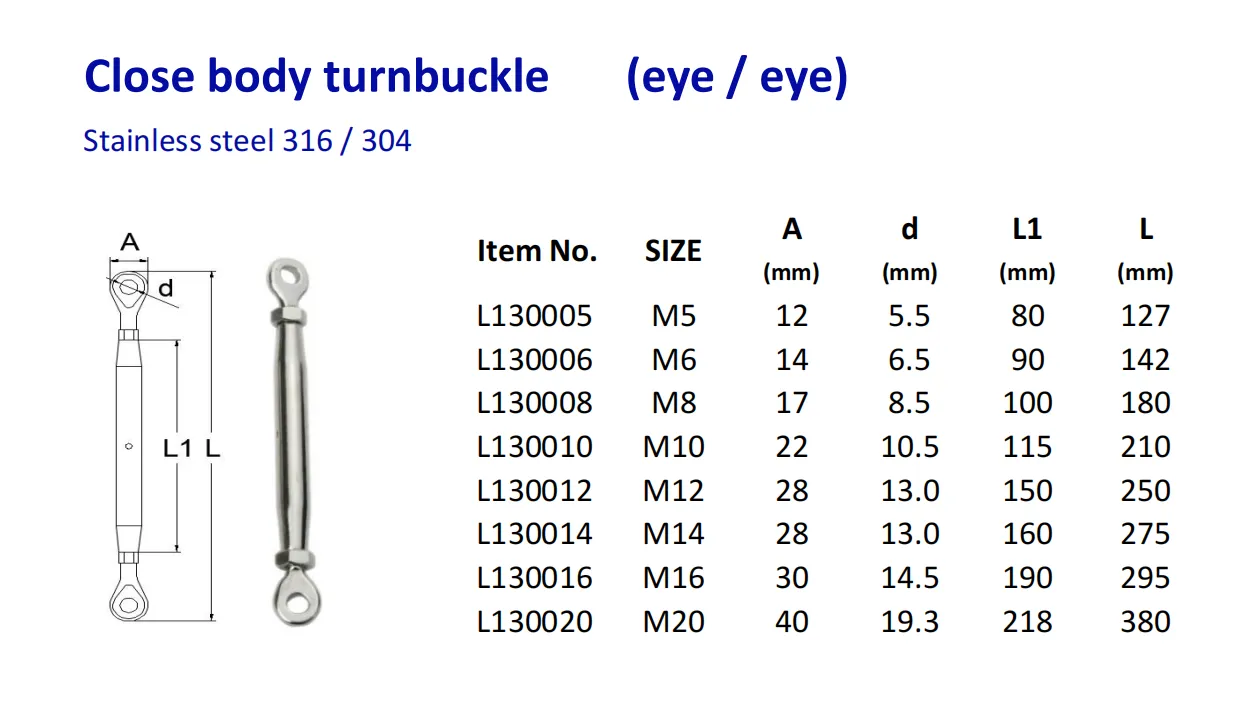

This is a closed body turnbuckle with an eye on each end. Unlike open-body turnbuckles, the closed body protects the internal threads from dirt, corrosion, and impact damage. The eye/eye ends give you a simple, strong loop for attaching hooks, shackles, or bolts—making it the safest, most maintenance-free choice for permanent tensioning.
| Item No. | SIZE | A (mm) | d (mm) | L1 (mm) | L (mm) |
|---|---|---|---|---|---|
| L130005 | M5 | 12 | 5.5 | 80 | 127 |
| L130006 | M6 | 14 | 6.5 | 90 | 142 |
| L130008 | M8 | 17 | 8.5 | 100 | 180 |
| L130010 | M10 | 22 | 10.5 | 115 | 210 |
| L130012 | M12 | 28 | 13.0 | 150 | 250 |
| L130014 | M14 | 28 | 13.0 | 160 | 275 |
| L130016 | M16 | 30 | 14.5 | 190 | 295 |
| L130020 | M20 | 40 | 19.3 | 218 | 380 |
