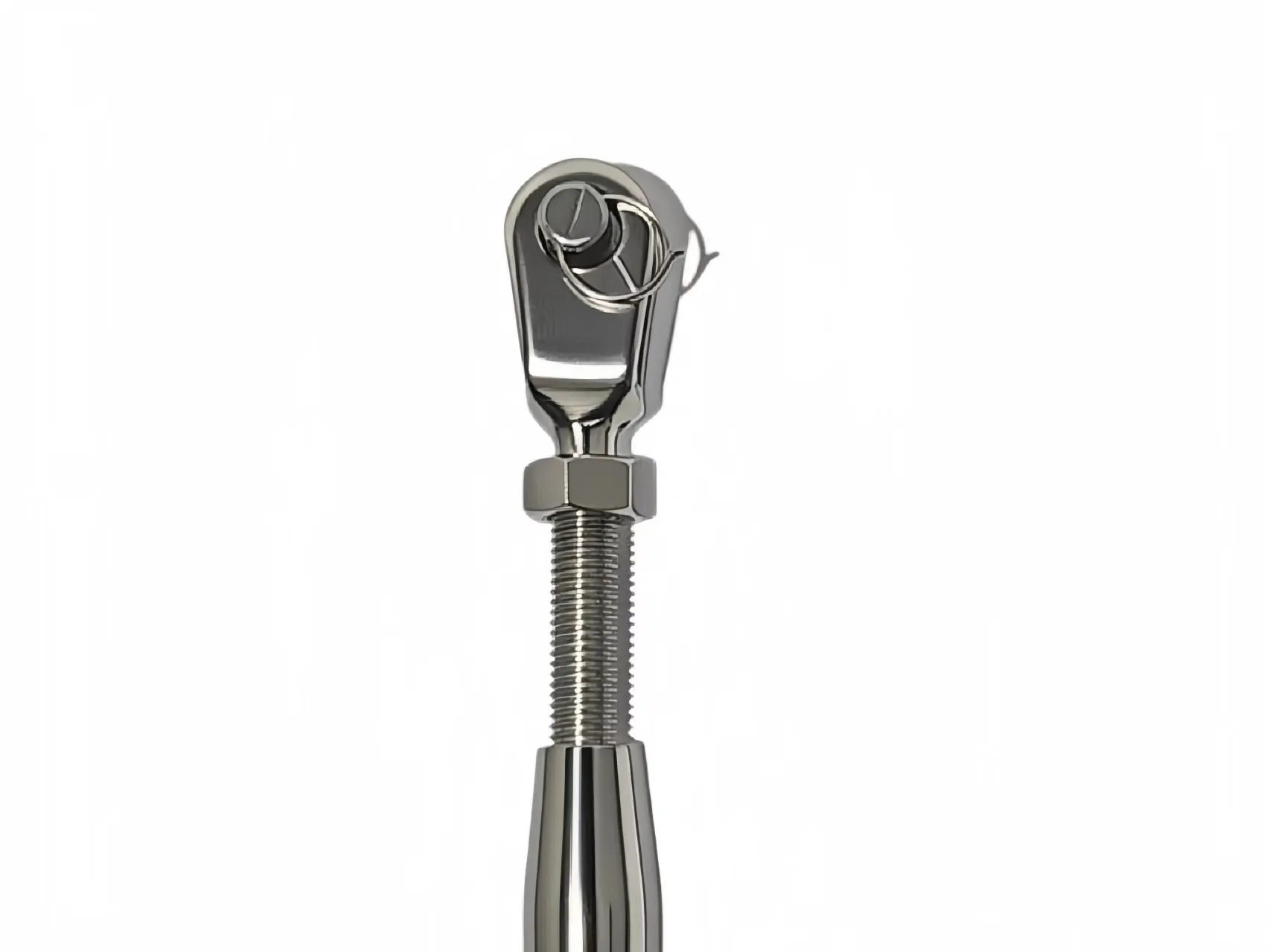

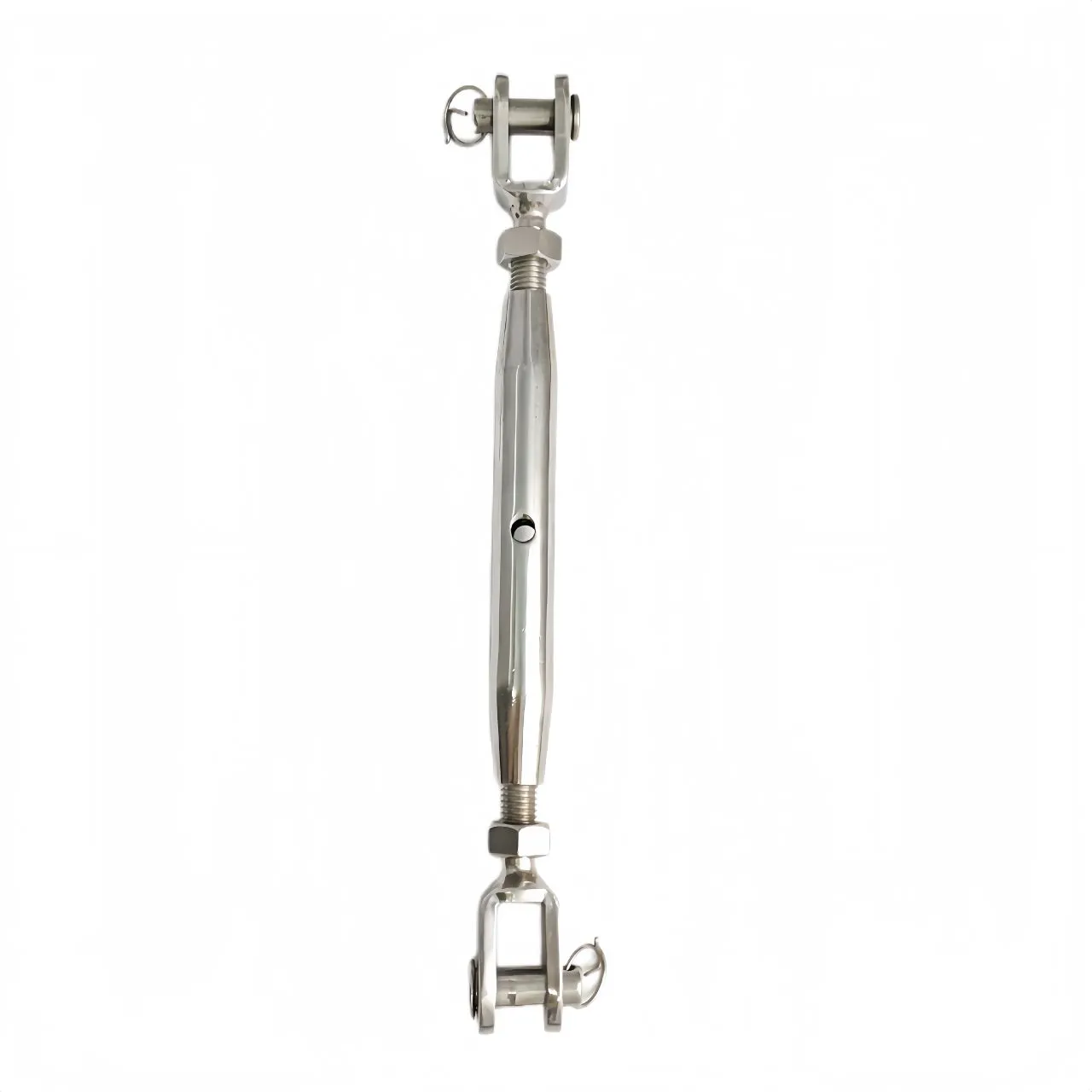

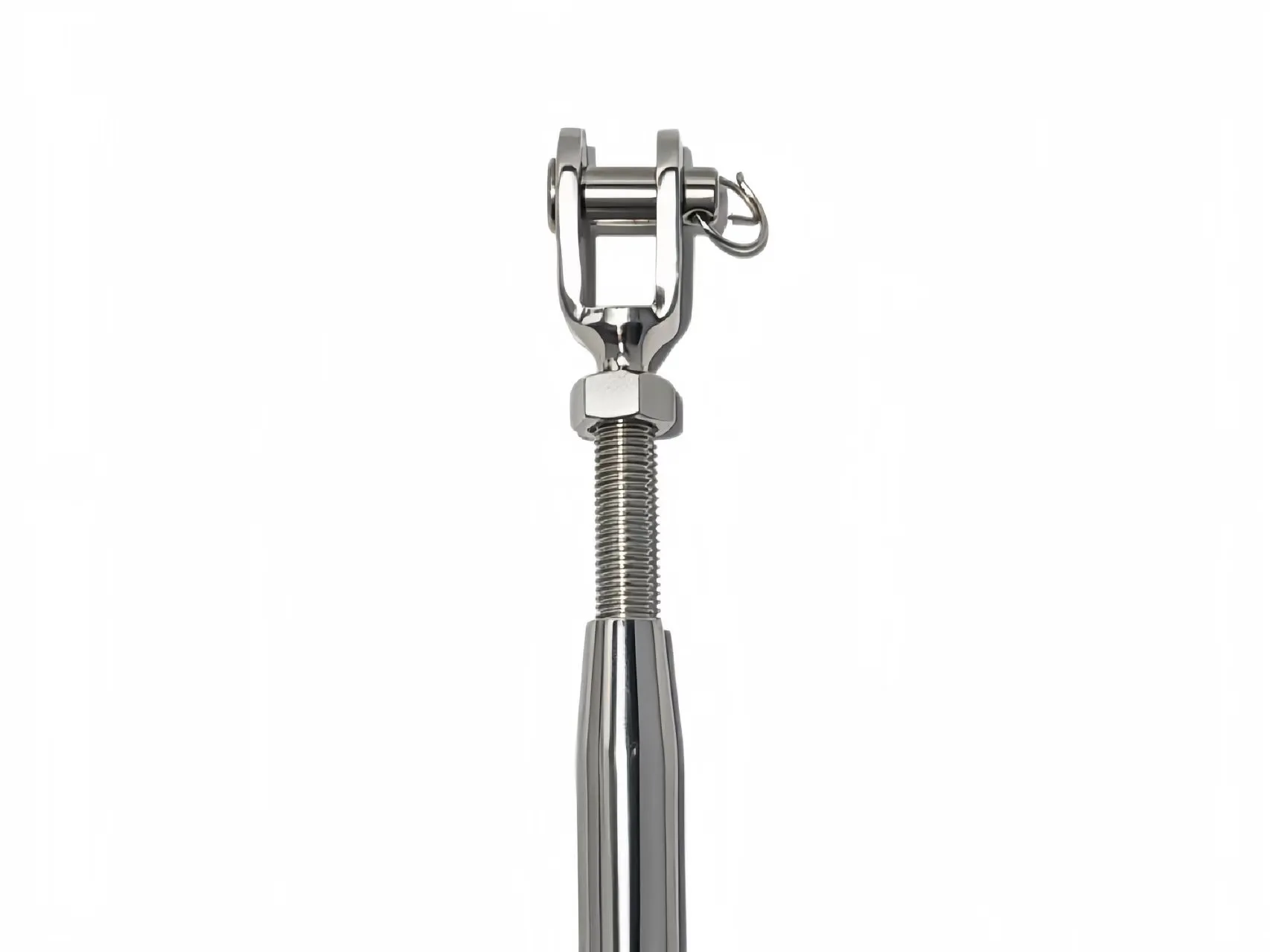

stainless steel Closed Body Turnbuckle (Fork/Fork)

stainless steel Closed Body Turnbuckle (Fork/Fork)

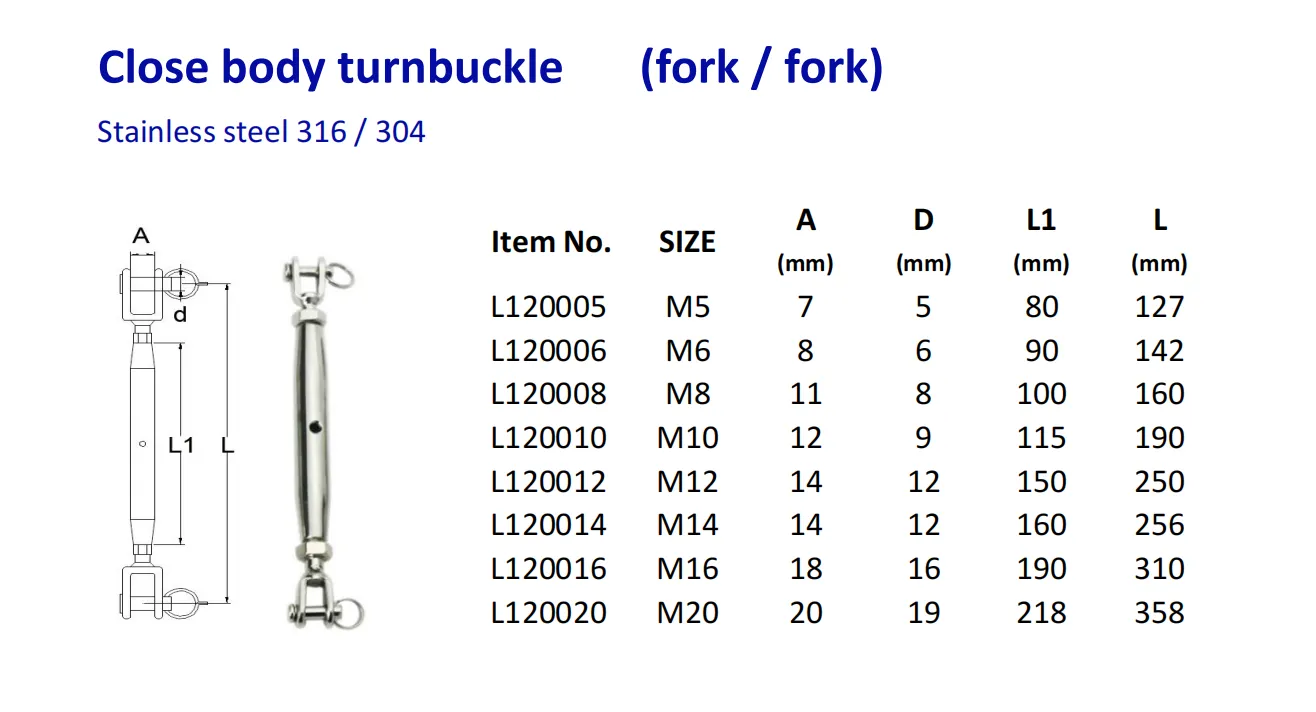

stainless steel Closed Body Turnbuckle (Fork/Fork) specification sheet

Prev: No data

Product Details

Material:

316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.

Application:

Turnbuckle: By rotating turnbuckle’s central body (or tube), it can loosen and tighten the threaded rods at its both ends synchronously (left thread on one end, right thread on the other end), while tightening wire rope or object connected to the threaded rods, or adjusting relative positions and angles between them. Due to their safety and reliability, they are used widely in construction, marine, heavy lifting, and building industries.

Specifications

Item No.SIZEA (mm)D (mm)L1 (mm)L (mm)
L120005M57580127
L120006M68690142
L120008M8118100160
L120010M10129115190
L120012M121412150250
L120014M141412160256
L120016M161816190310
L120020M202019218358
