Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:
This is a closed body turnbuckle. Unlike standard turnbuckles with exposed threads, the threads on this one are completely enclosed inside a solid steel tube. That means no rust, no dirt jamming, and no bent threads. It's stronger, safer to handle, and lasts far longer outdoors. You just spin the center body to adjust tension—simple and bulletproof.

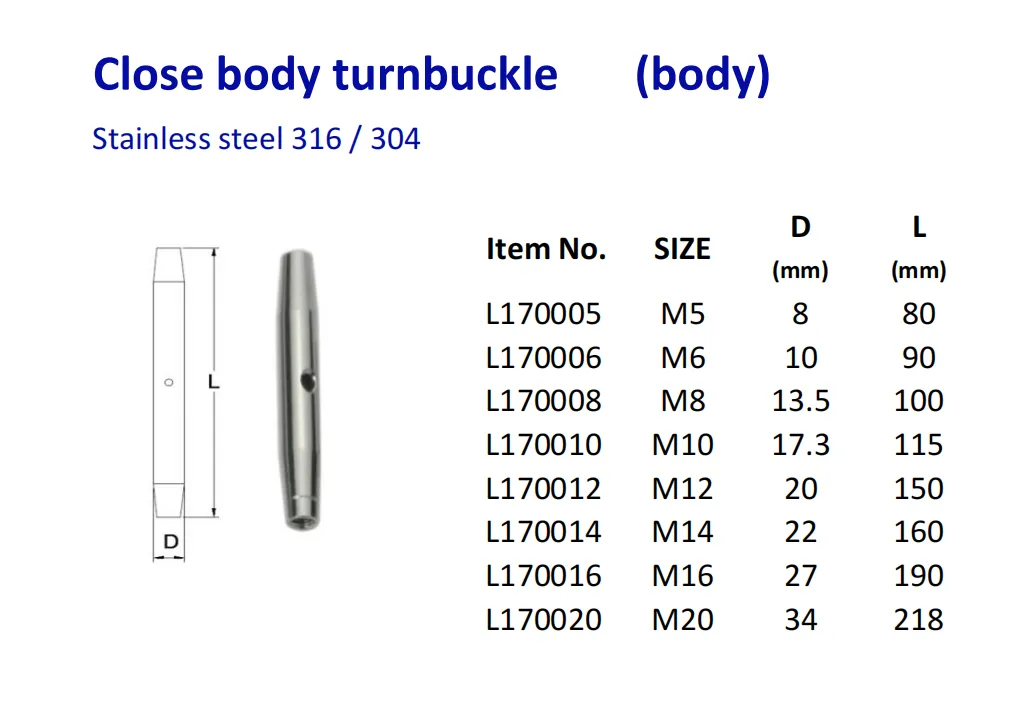

| Item No. | SIZE | D (mm) | L (mm) |
|---|---|---|---|
| L170005 | M5 | 8 | 80 |
| L170006 | M6 | 10 | 90 |
| L170008 | M8 | 13.5 | 100 |
| L170010 | M10 | 17.3 | 115 |
| L170012 | M12 | 20 | 150 |
| L170014 | M14 | 22 | 160 |
| L170016 | M16 | 27 | 190 |
| L170020 | M20 | 34 | 218 |
