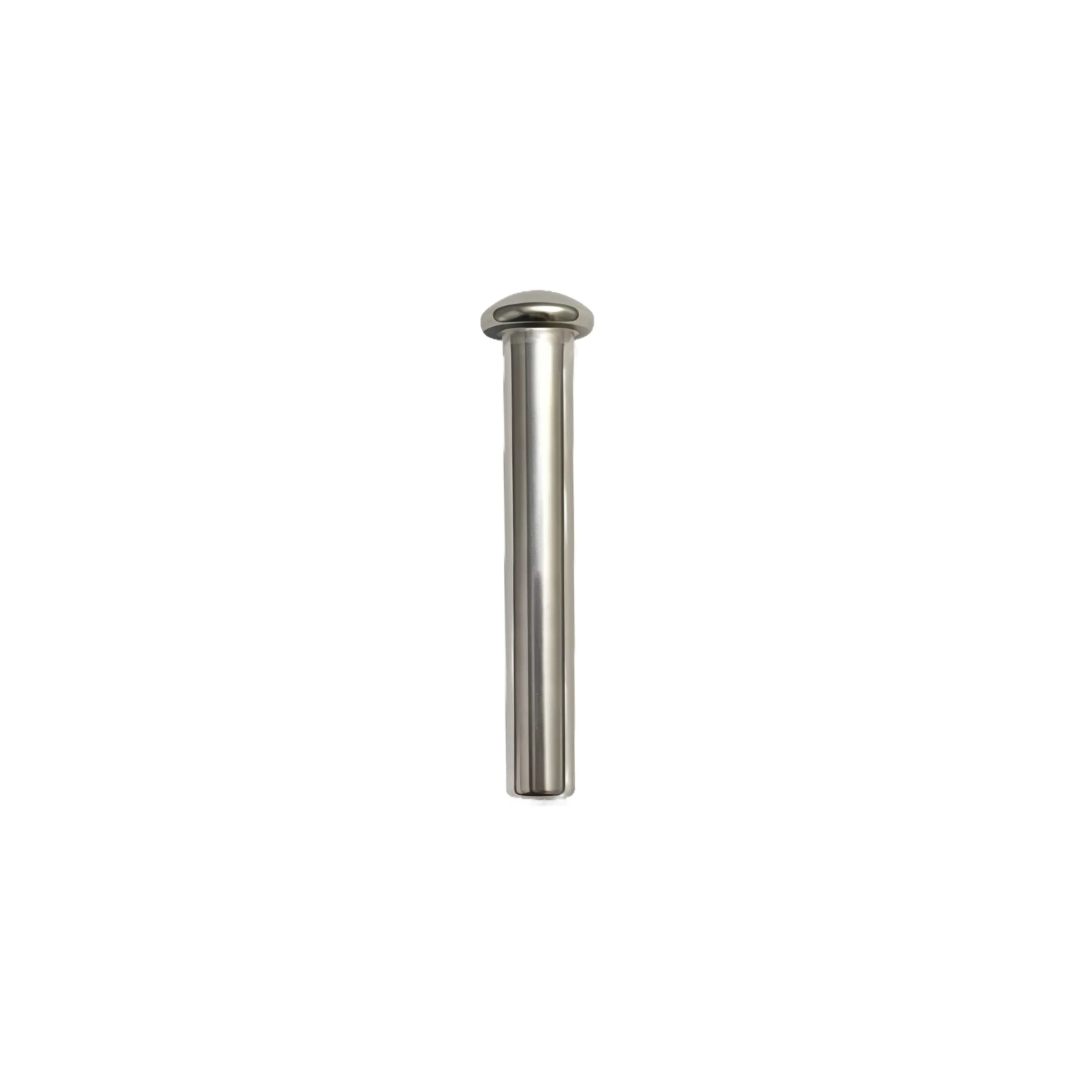

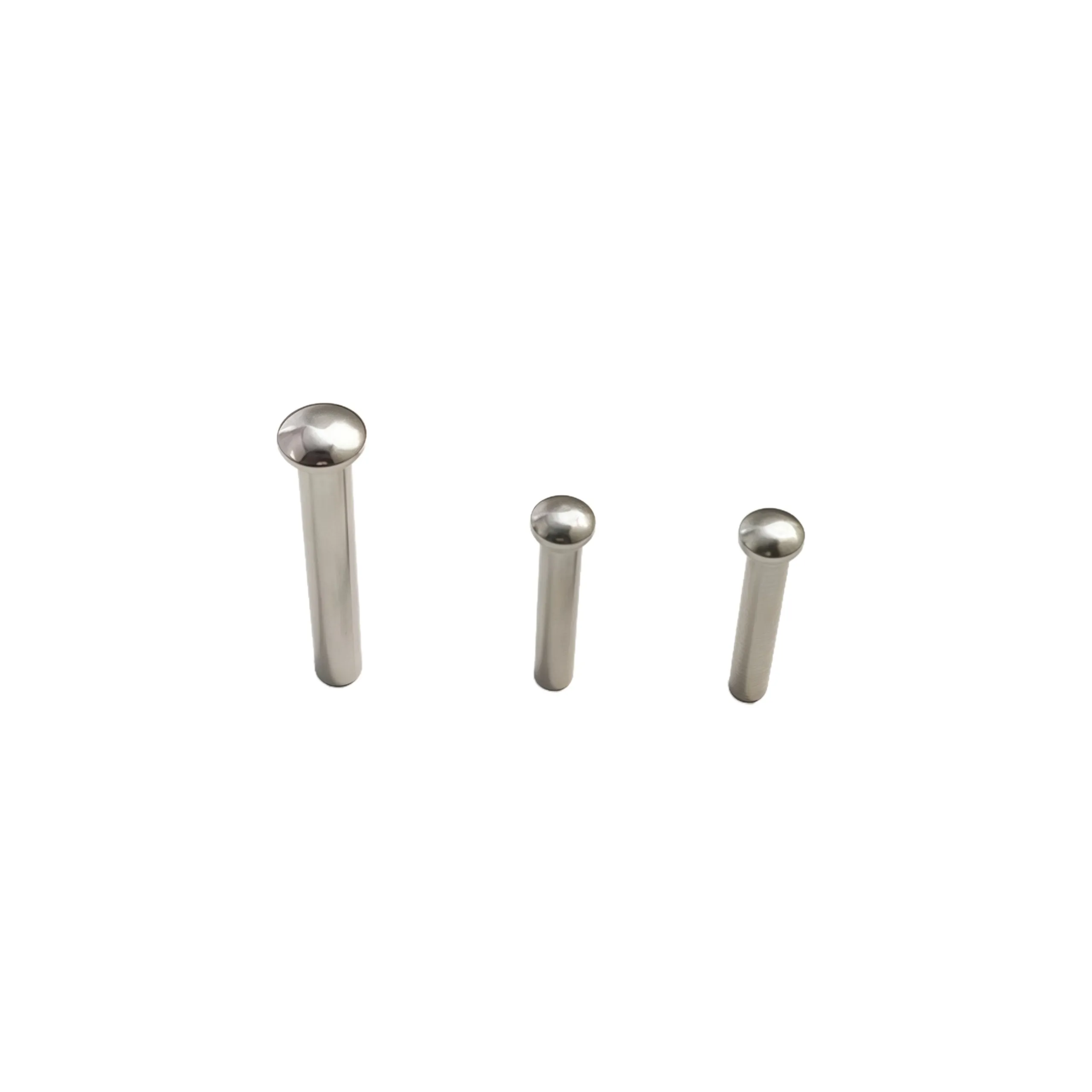

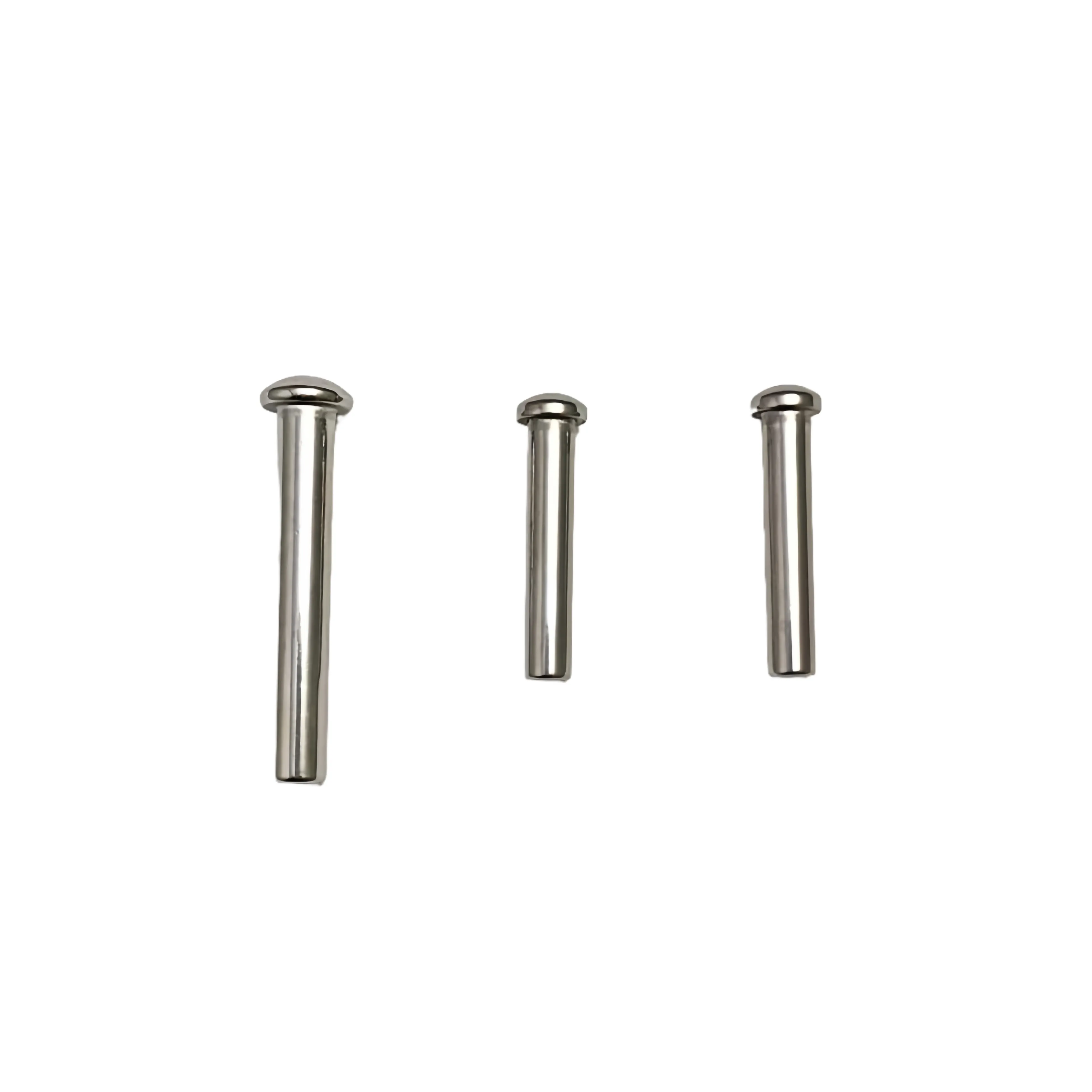

stainless steel wire rope Dome head terminal
Product Details
Material:
316 and 304 stainless steel. 316 stainless steel is more suitable for marine saltwater environments, while 304 is suitable for general outdoor humid environments.
Application:
A corrosion-resistant termination system combining a cold-pressed stud terminal. Crafted from marine-grade 304/316 stainless steel, it creates permanent, vibration-proof connections for wire ropes. Ideal for rigging systems requiring secure yet adjustable endpoints in harsh environments.

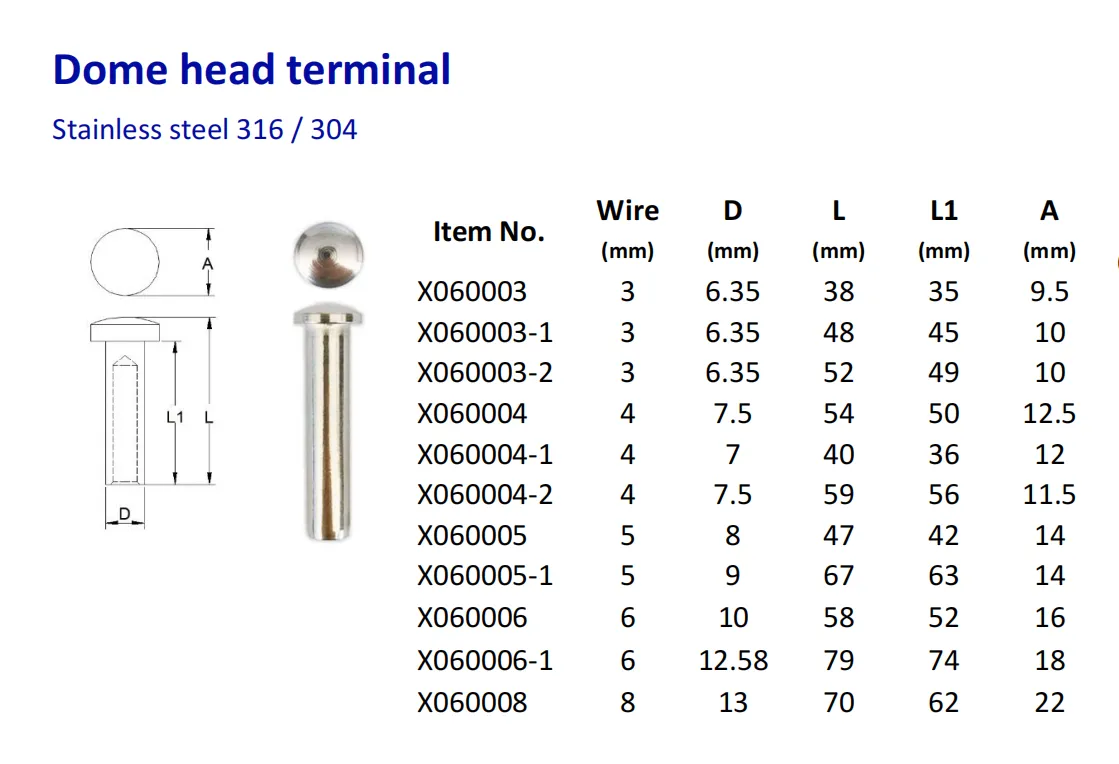

Specifications
| Item No. | Wire (mm) | D (mm) | L (mm) | L1 (mm) | A (mm) |
|---|---|---|---|---|---|
| X060003 | 3 | 6.35 | 38 | 35 | 9.5 |
| X060003-1 | 3 | 6.35 | 48 | 45 | 10 |
| X060003-2 | 3 | 6.35 | 52 | 49 | 10 |
| X060004 | 4 | 7.5 | 54 | 50 | 12.5 |
| X060004-1 | 4 | 7 | 40 | 36 | 12 |
| X060004-2 | 4 | 7.5 | 59 | 56 | 11.5 |
| X060005 | 5 | 8 | 47 | 42 | 14 |
| X060005-1 | 5 | 9 | 67 | 63 | 14 |
| X060006 | 6 | 10 | 58 | 52 | 16 |
| X060006-1 | 6 | 12.58 | 79 | 74 | 18 |
| X060008 | 8 | 13 | 70 | 62 | 22 |
