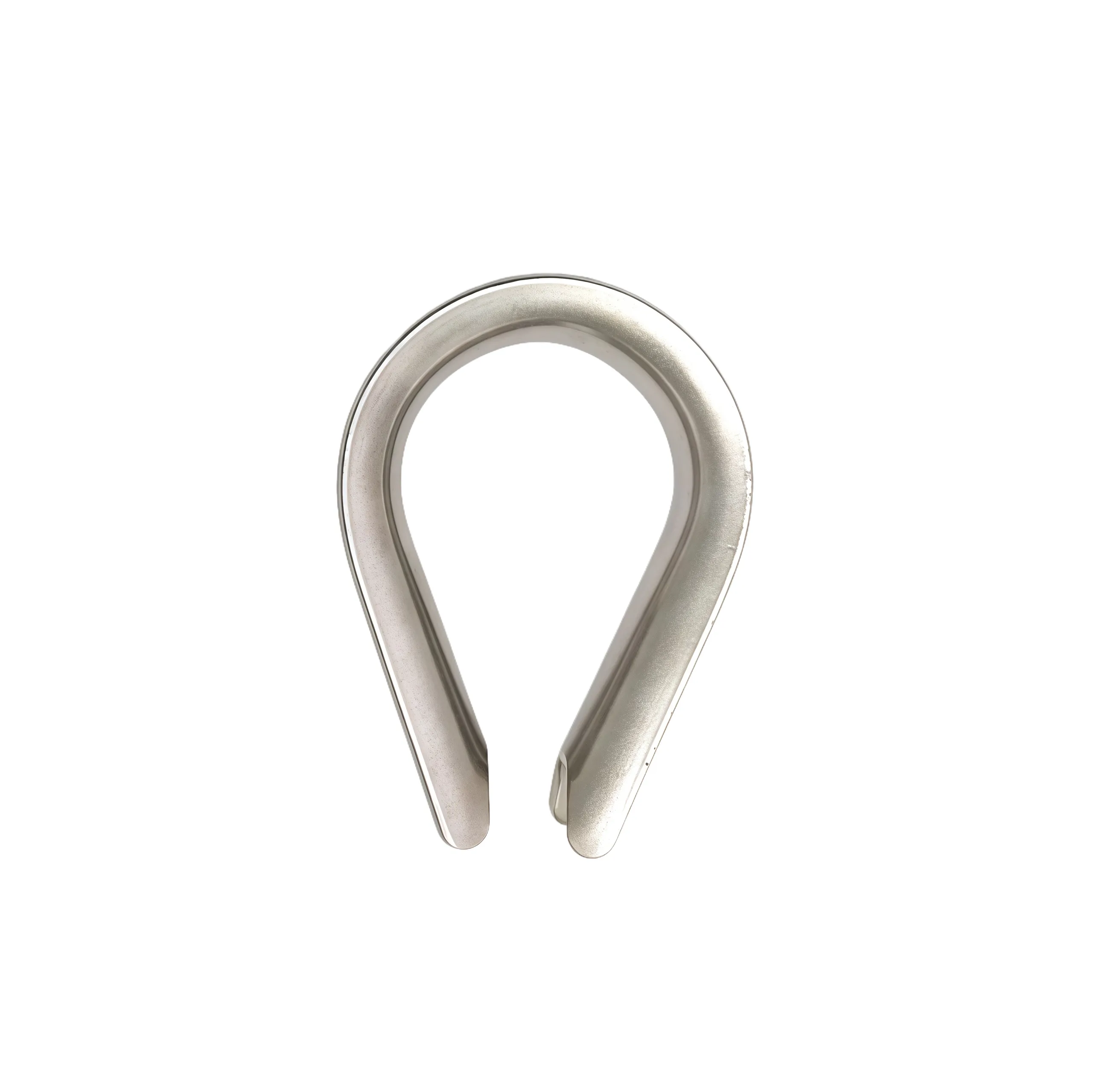

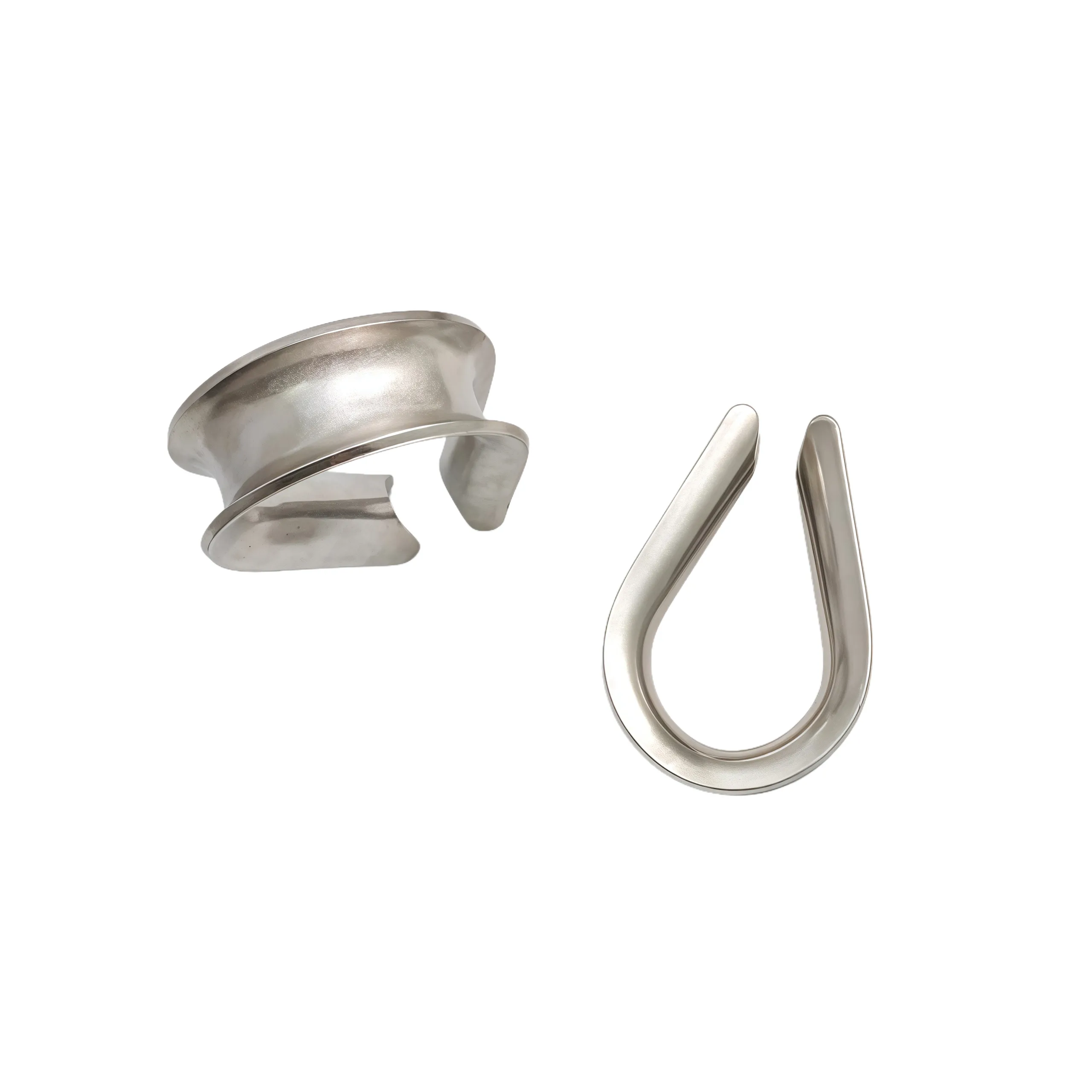

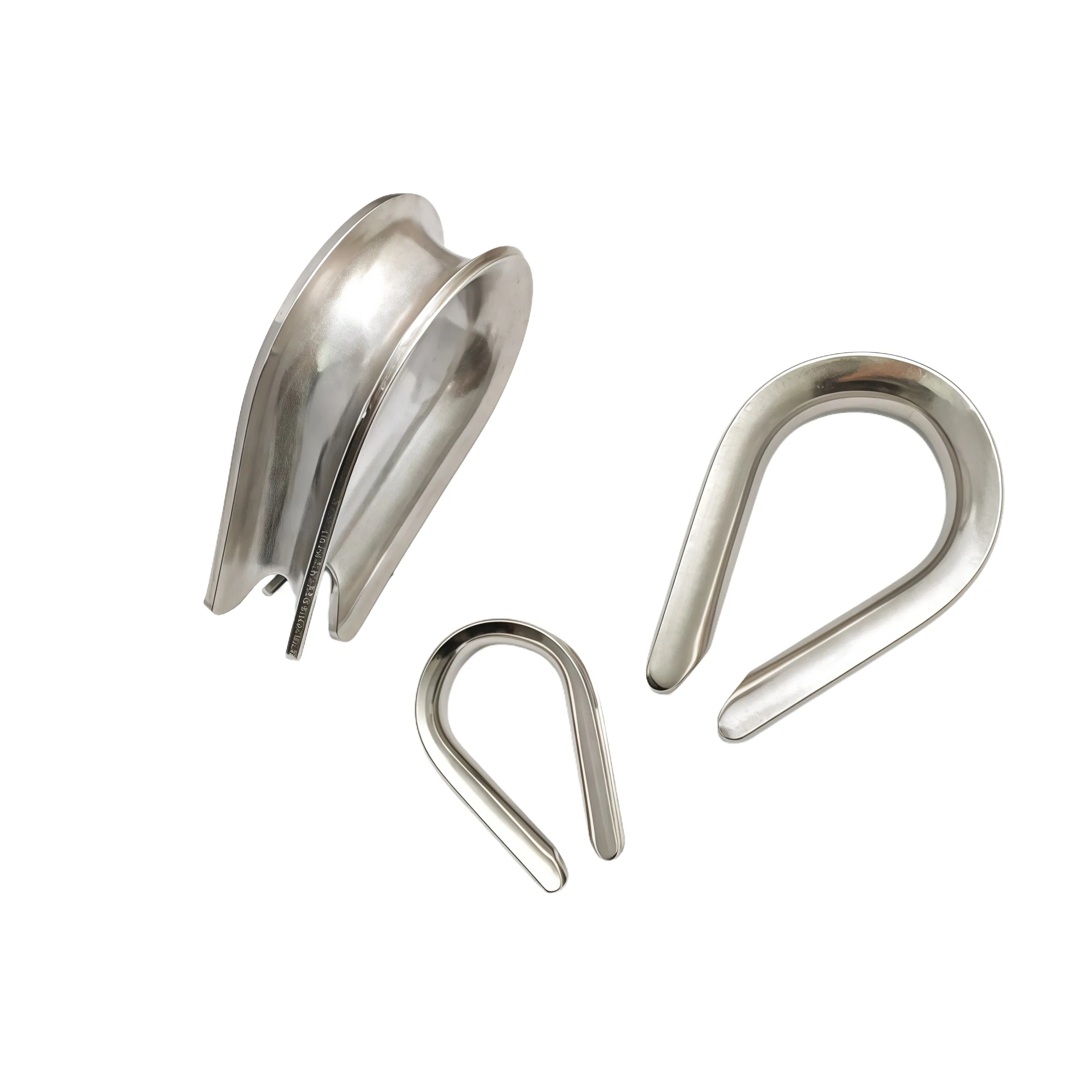

Stainless Steel Wire Rope Thimble:
Designed to protect and extend the life of wire rope eyes, our Stainless Steel Thimble provides a durable, grooved channel that prevents wear, kinking, and deformation at connection points. Manufactured from high-grade stainless steel, it offers excellent corrosion and rust resistance, making it ideal for marine, rigging, towing, and industrial applications. The smooth interior surface reduces friction on the rope, while the sturdy construction ensures reliable load distribution. Available in a full range of sizes to match common wire rope diameters.

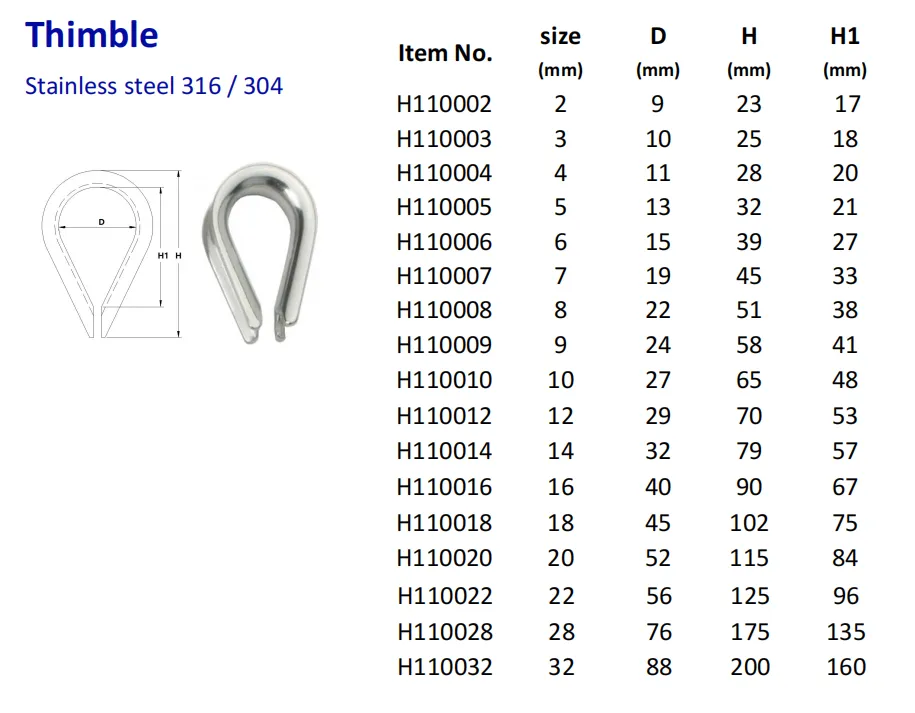

| Item No. | size (mm) | D (mm) | H (mm) | H1 (mm) |
|---|---|---|---|---|
| H110002 | 2 | 9 | 23 | 17 |
| H110003 | 3 | 10 | 25 | 18 |
| H110004 | 4 | 11 | 28 | 20 |
| H110005 | 5 | 13 | 32 | 21 |
| H110006 | 6 | 15 | 39 | 27 |
| H110007 | 7 | 19 | 45 | 33 |
| H110008 | 8 | 22 | 51 | 38 |
| H110009 | 9 | 24 | 58 | 41 |
| H110010 | 10 | 27 | 65 | 48 |
| H110012 | 12 | 29 | 70 | 53 |
| H110014 | 14 | 32 | 79 | 57 |
| H110016 | 16 | 40 | 90 | 67 |
| H110018 | 18 | 45 | 102 | 75 |
| H110020 | 20 | 52 | 115 | 84 |
| H110022 | 22 | 56 | 125 | 96 |
| H110028 | 28 | 76 | 175 | 135 |
| H110032 | 32 | 88 | 200 | 160 |
