About this item:

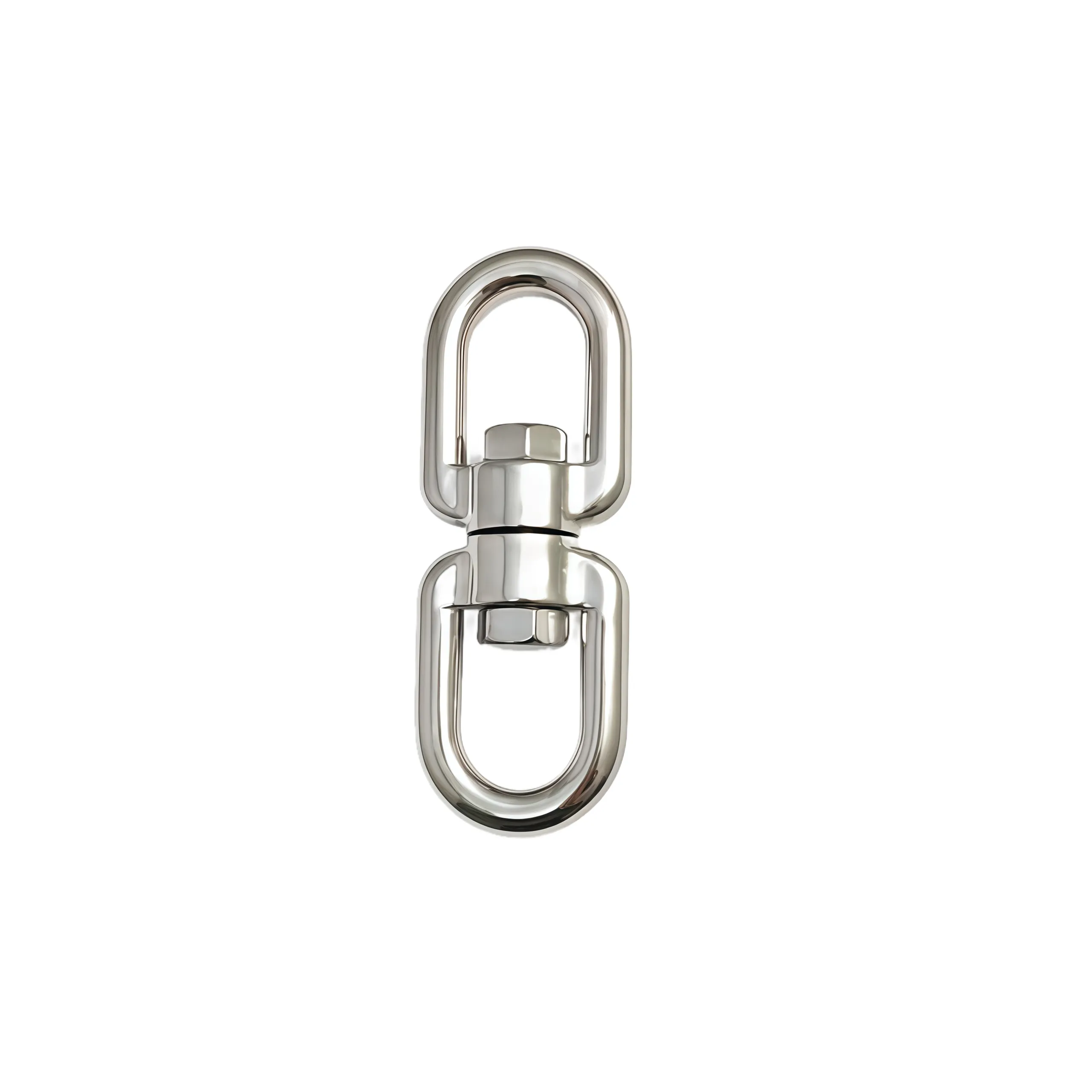

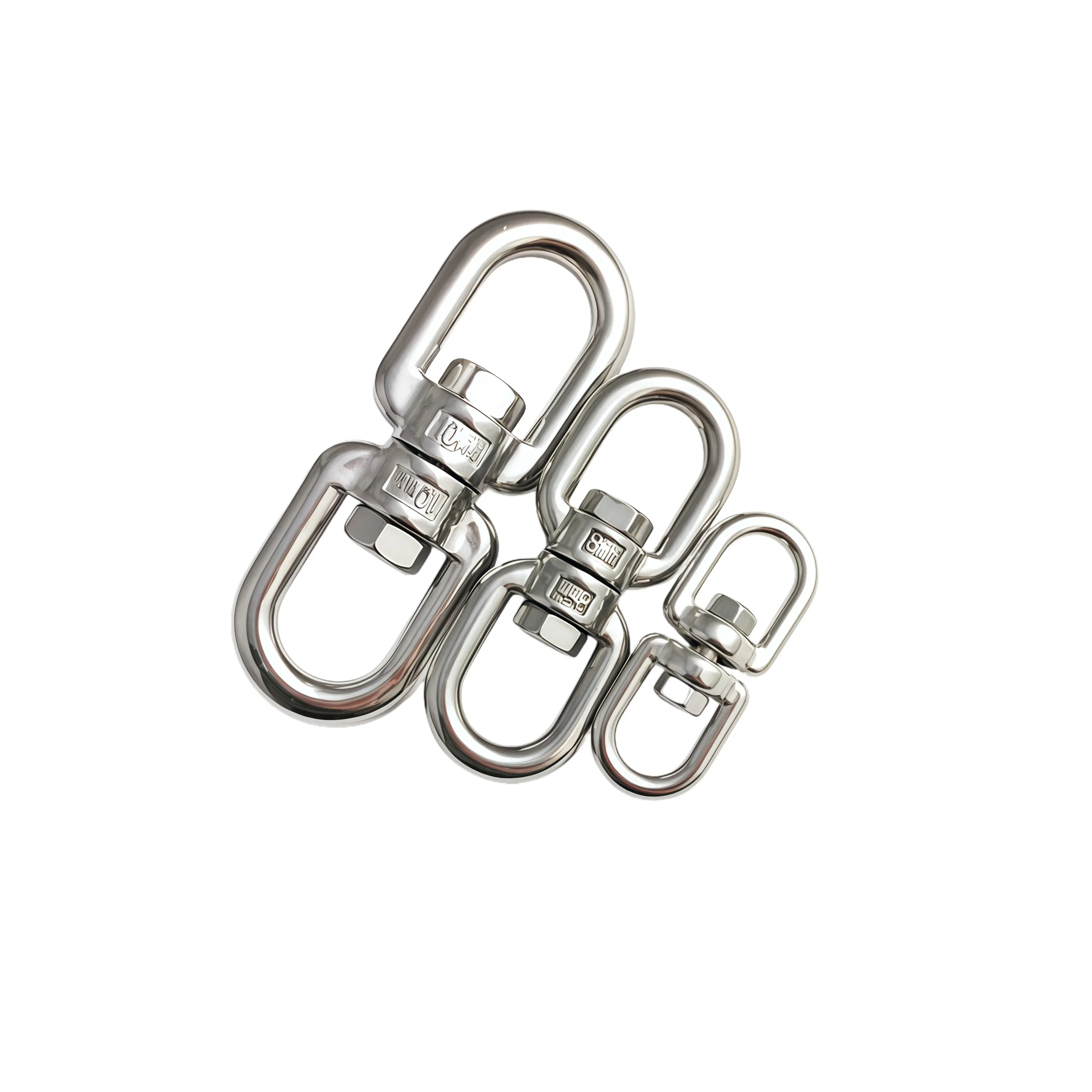

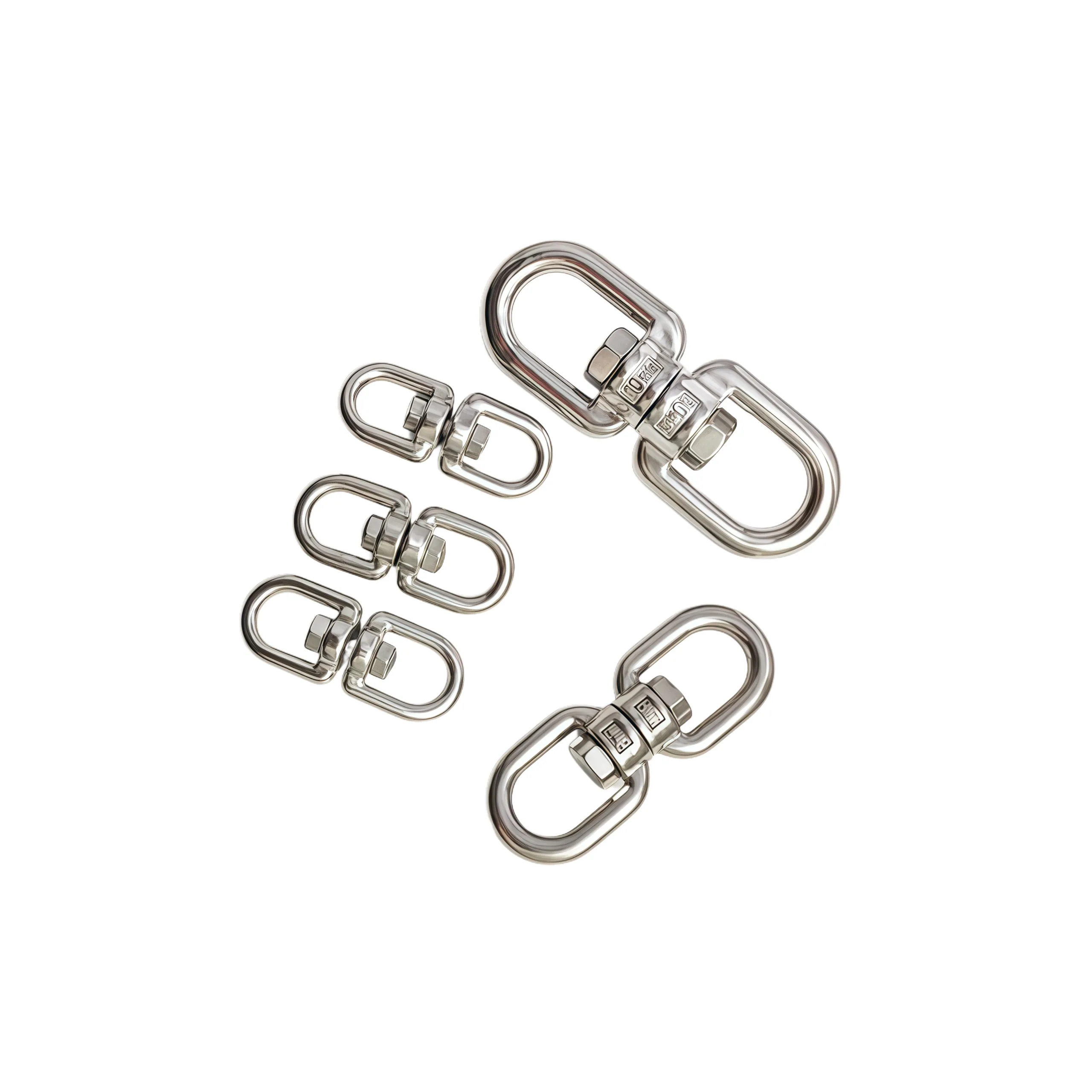

Engineered for superior strength and flexibility, our Stainless Steel Swivel Eye & Eye features a precision swivel mechanism that eliminates torsional stress and prevents cable or line twisting. Constructed from high-grade stainless steel, it offers exceptional corrosion resistance, making it ideal for marine, industrial, and outdoor rigging applications. The dual-eye design allows for easy connection to hooks, shackles, or ropes, while the 360° rotation ensures smooth, reliable load alignment under tension. Available in various sizes to meet your lifting and tensioning needs.

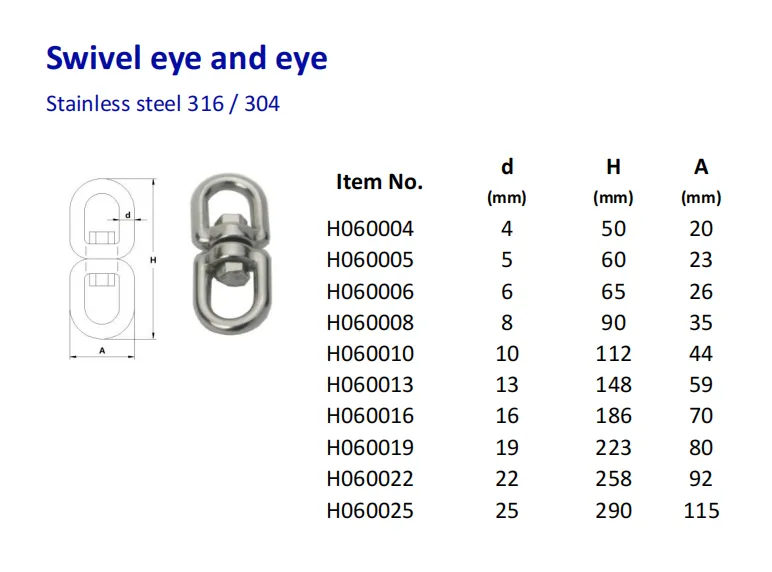

| Item No. | d (mm) | H (mm) | A (mm) |
|---|---|---|---|
| H060004 | 4 | 50 | 20 |
| H060005 | 5 | 60 | 23 |
| H060006 | 6 | 65 | 26 |
| H060008 | 8 | 90 | 35 |
| H060010 | 10 | 112 | 44 |
| H060013 | 13 | 148 | 59 |
| H060016 | 16 | 186 | 70 |
| H060019 | 19 | 223 | 80 |
| H060022 | 22 | 258 | 92 |
| H060025 | 25 | 290 | 115 |
