Product Details

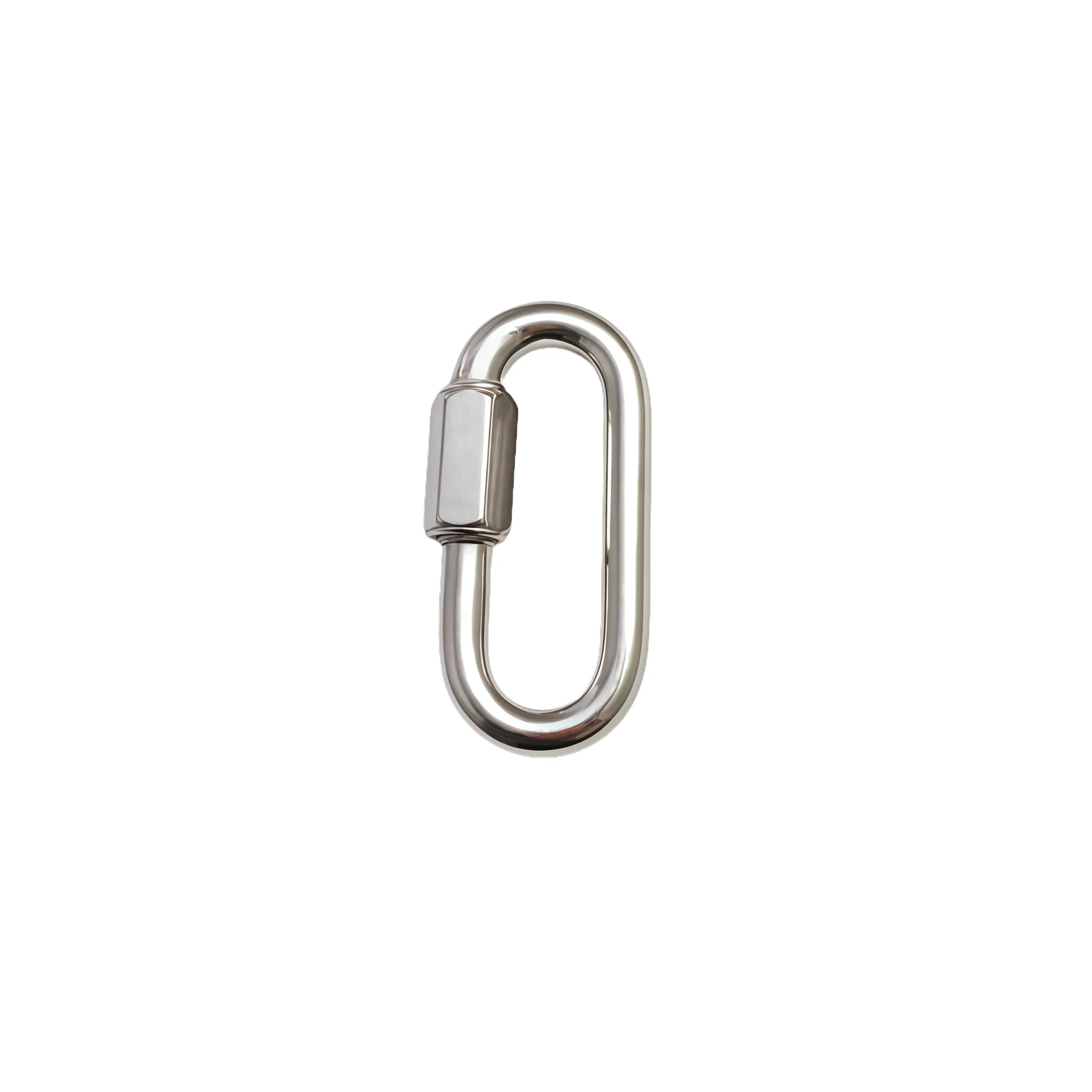

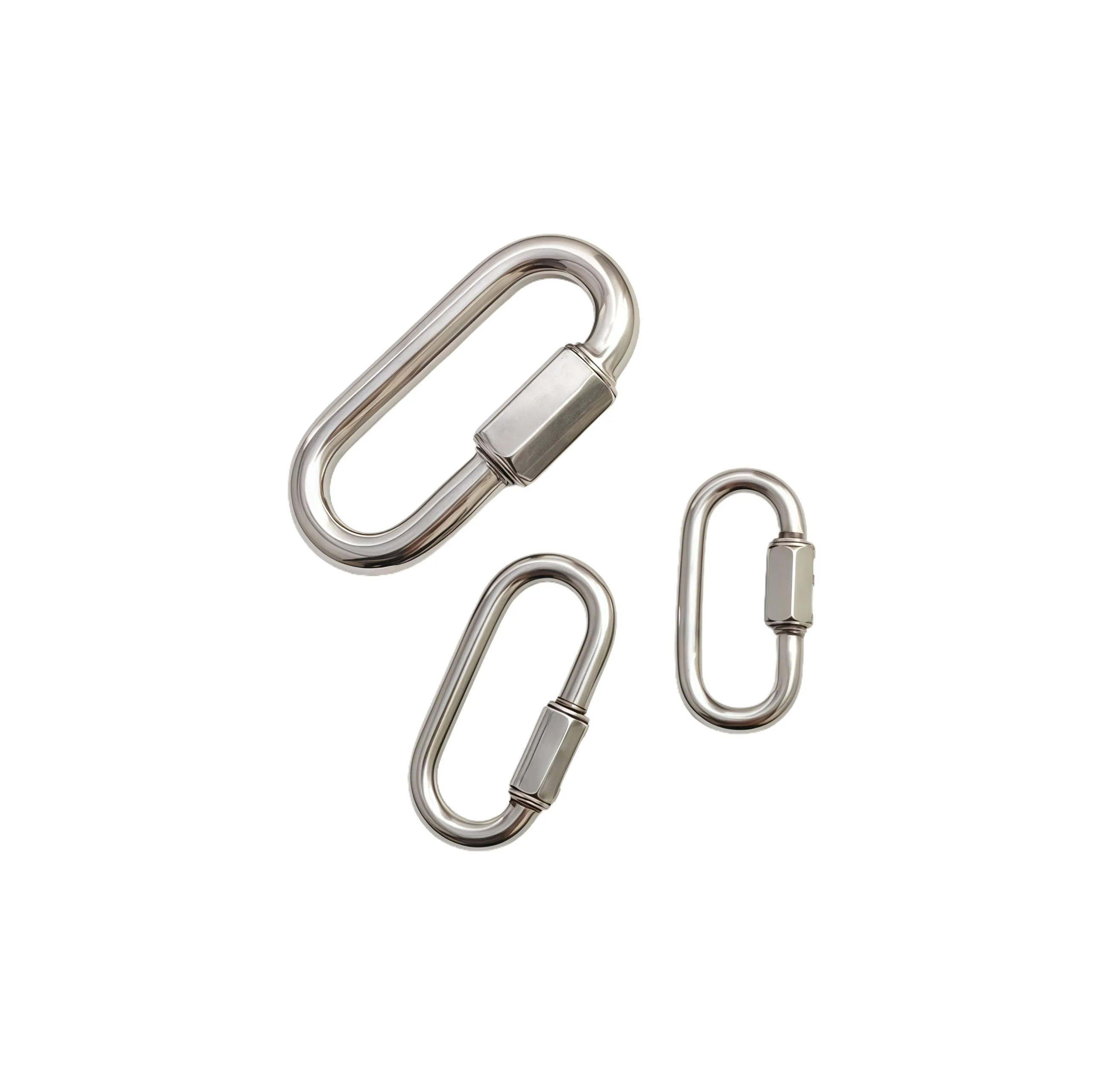

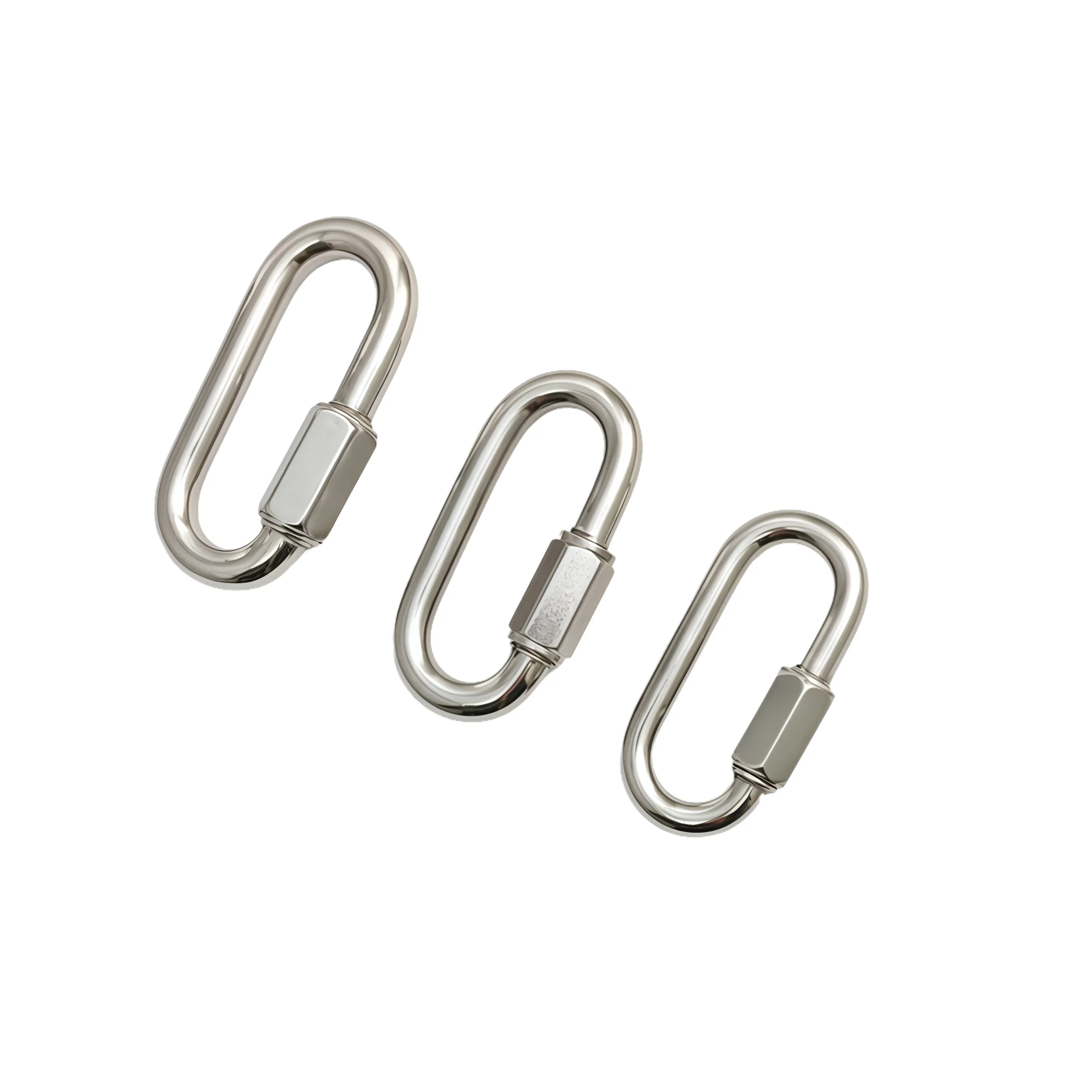

Stainless Steel Quick Link:
A corrosion-resistant marine/industrial connector (typically 304/316 grade) with a threaded closure for rapid attachment.
Designed to securely join chains, ropes, or cables in rigging, lifting, and sailboat applications. Features high strength, smooth polished surfaces, and saltwater durability.
Feature:
Material: 304 (general use) / 316 (marine-grade, superior corrosion resistance)
Function: Instant connection/disconnection of load-bearing components
Applications: Sailboat rigging, cargo securing, safety equipment, industrial lifting
Advantages: Rust-proof, maintenance-free, high load capacity relative to size

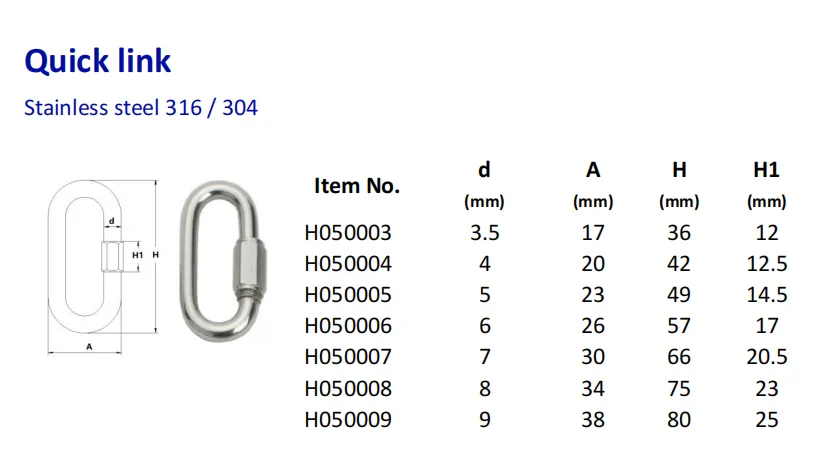

Specifications
| Item No. | d (mm) | A (mm) | H (mm) | H1 (mm) |
|---|---|---|---|---|
| H050003 | 3.5 | 17 | 36 | 12 |
| H050004 | 4 | 20 | 42 | 12.5 |
| H050005 | 5 | 23 | 49 | 14.5 |
| H050006 | 6 | 26 | 57 | 17 |
| H050007 | 7 | 30 | 66 | 20.5 |
| H050008 | 8 | 34 | 75 | 23 |
| H050009 | 9 | 38 | 80 | 25 |
Related Products

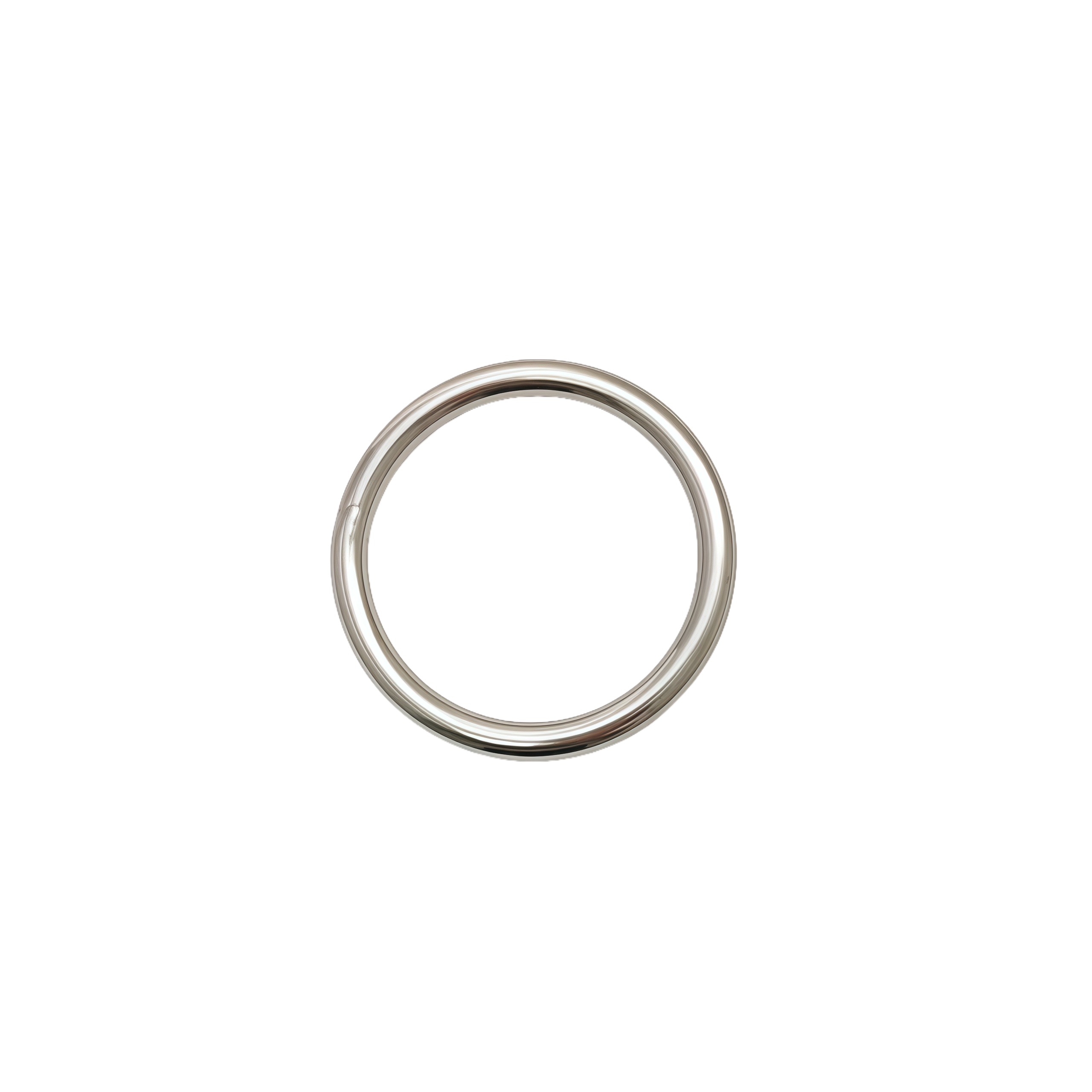

stainless steel Round ring (welded)

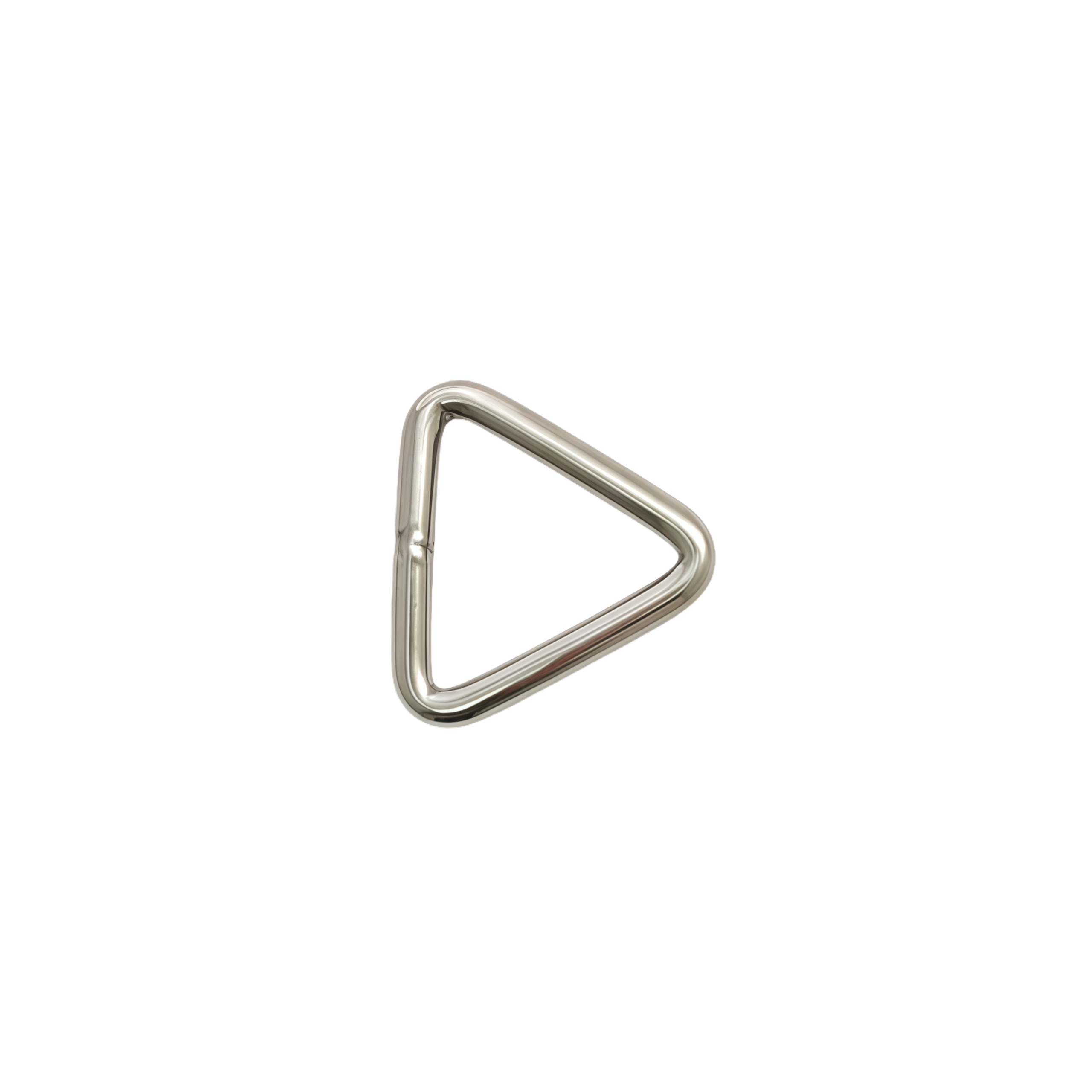

stainless steel Triangle ring

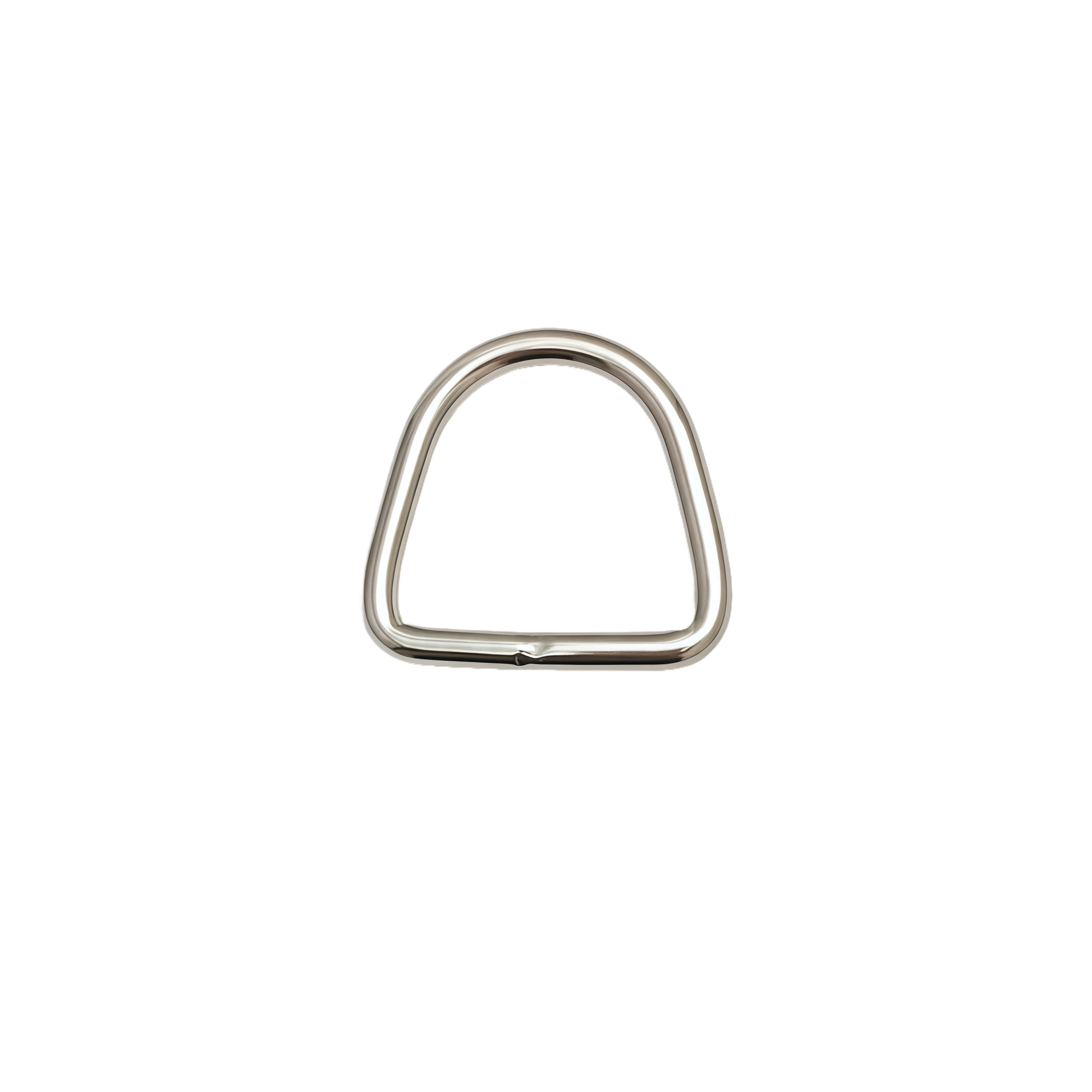

stainless steel D ring

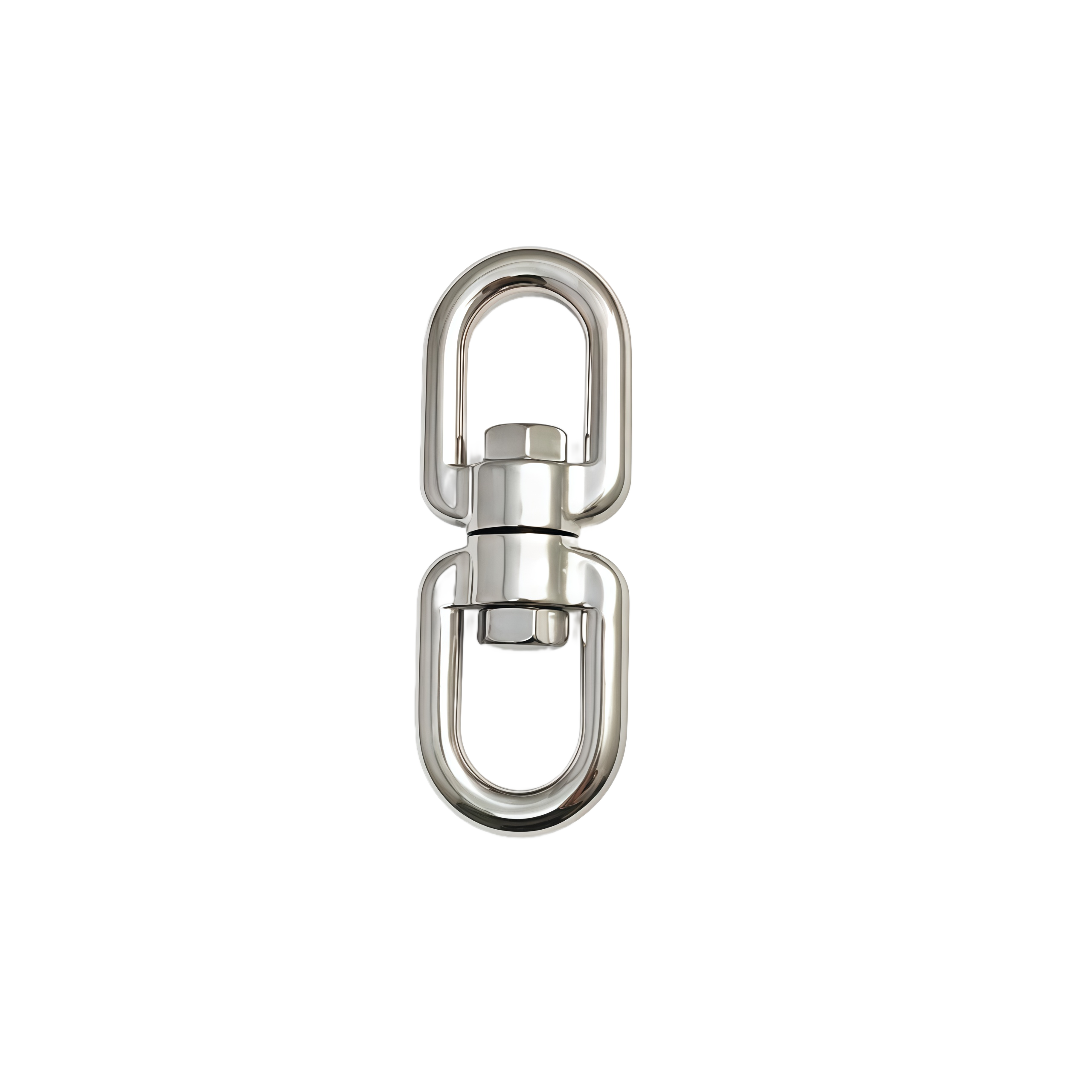

stainless steel Swivel eye and eye
