Product Details
About this item:

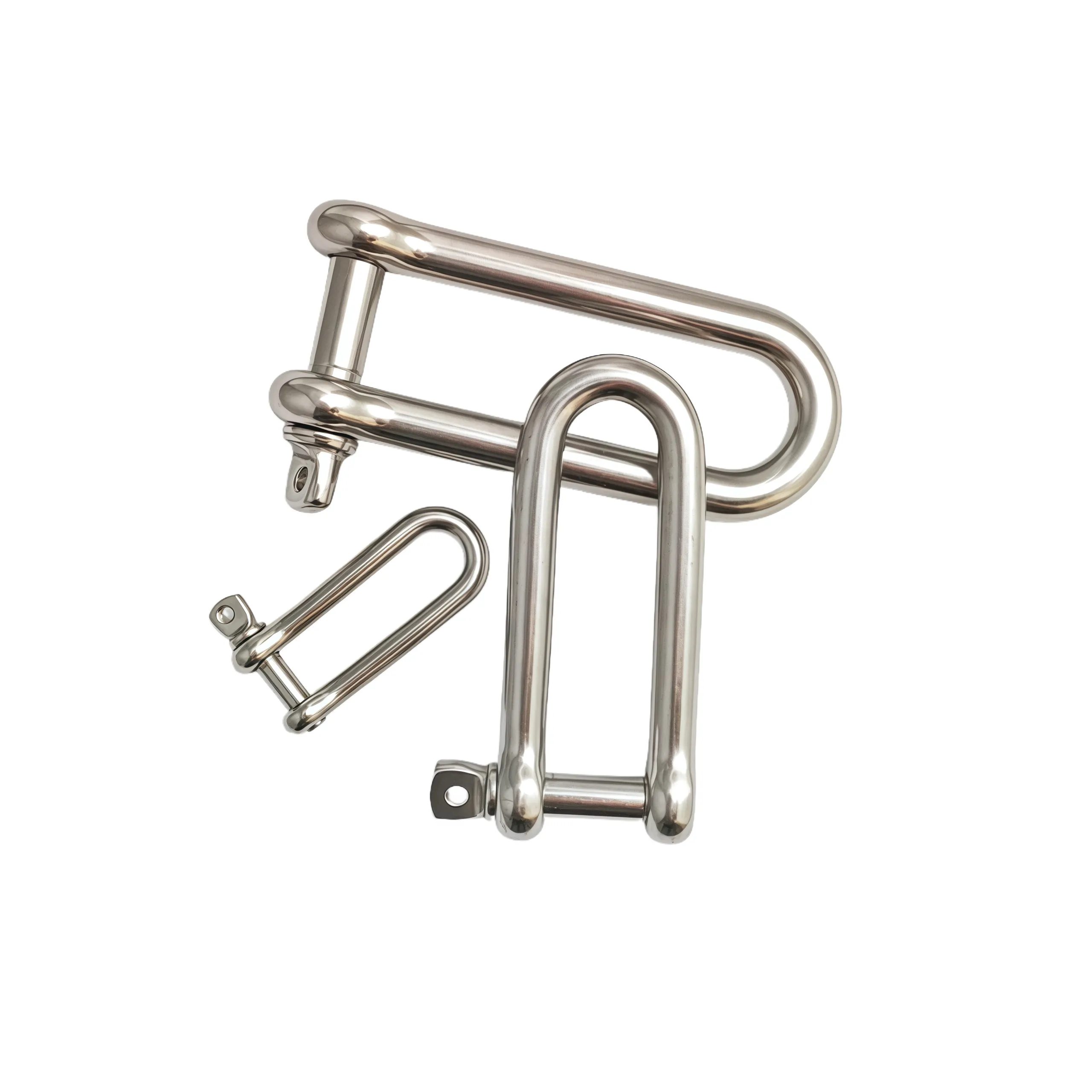

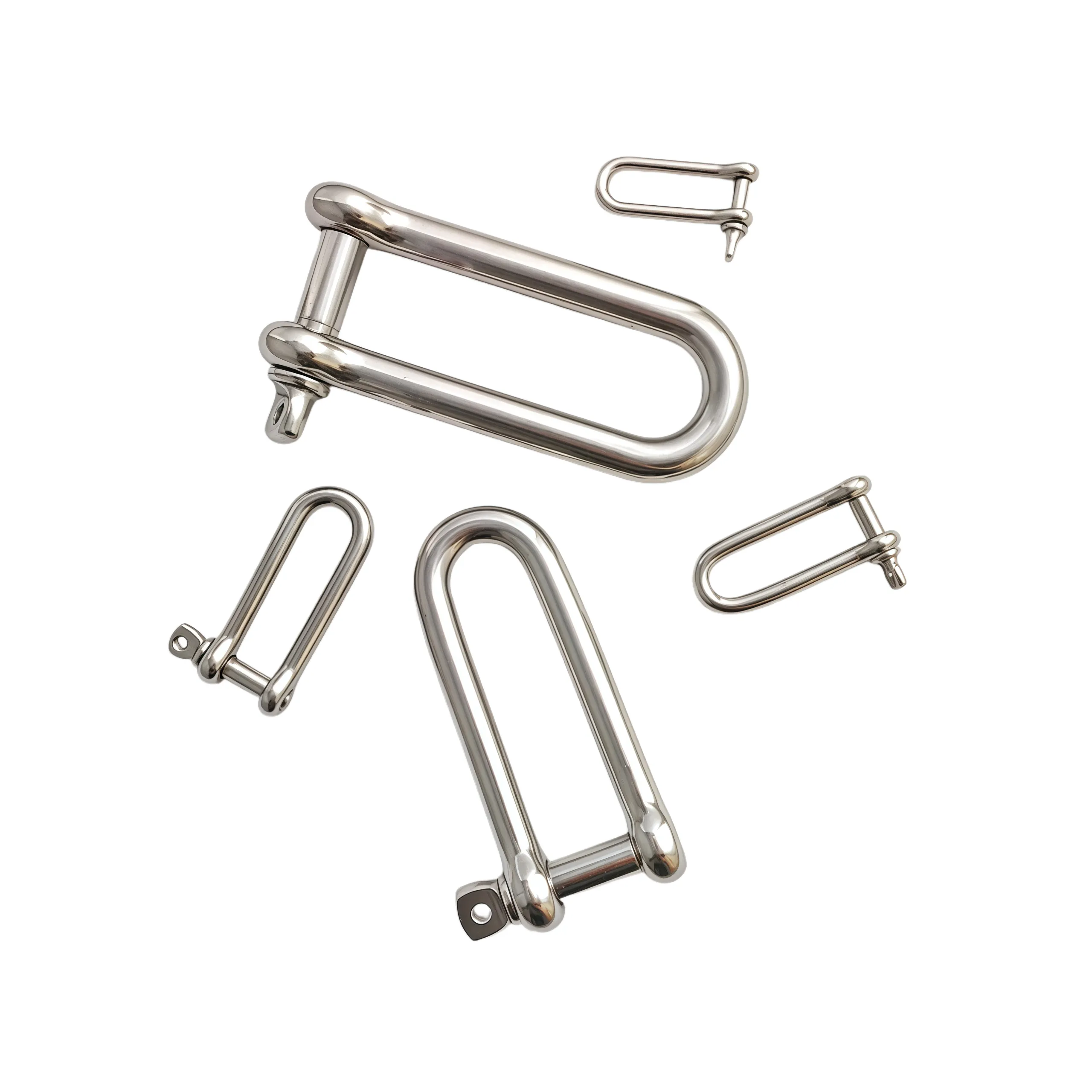

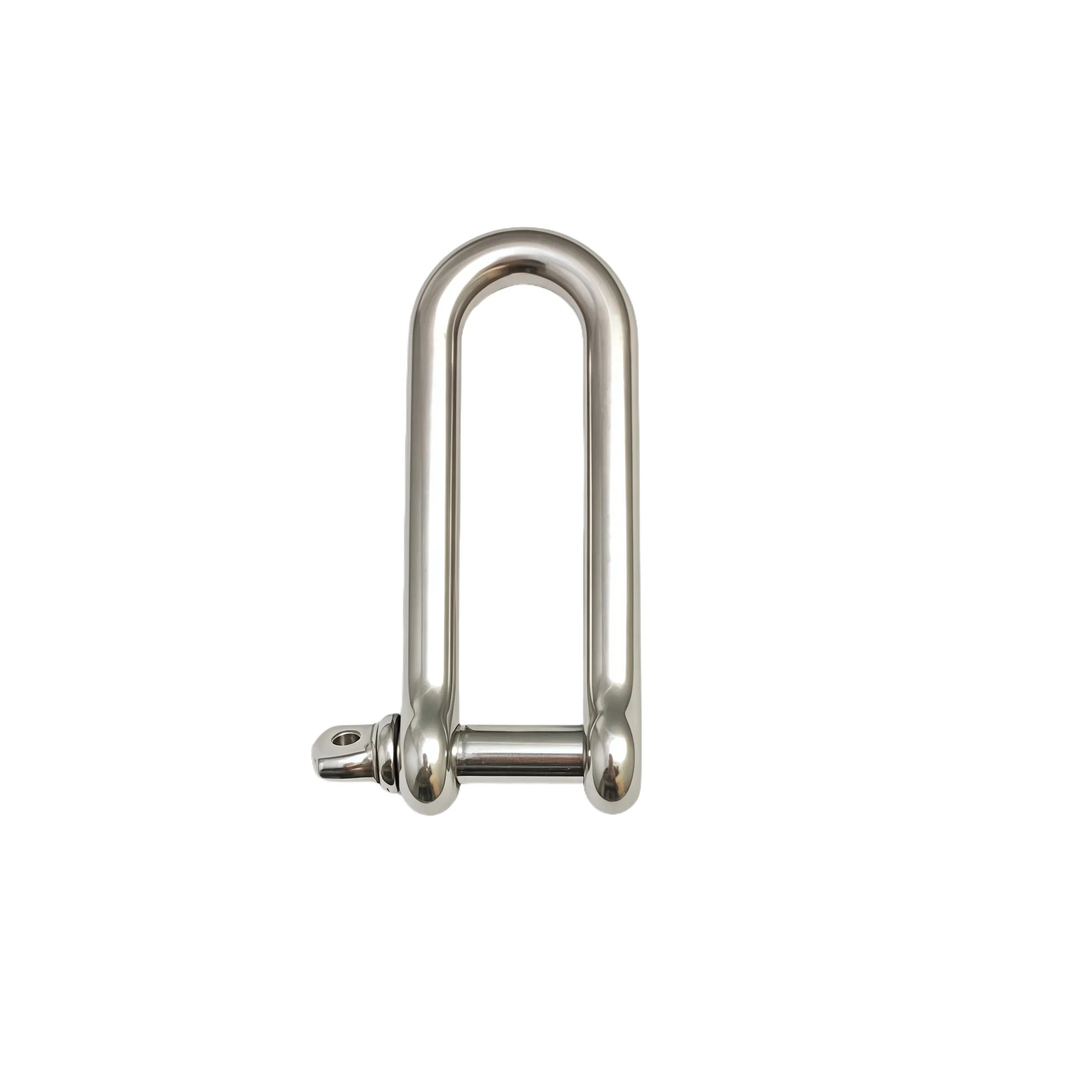

Engineered for demanding marine environments, our Long D Shackles are made from corrosion-resistant 304/316 stainless steel.
The extended bow design offers superior clearance for sailboat rigging, deck fittings, and multi-point connections.
With a polished surface finish and screw pin security, these shackles withstand saltwater exposure.
Ideal for sail adjustments, mast securing, and industrial lifting.

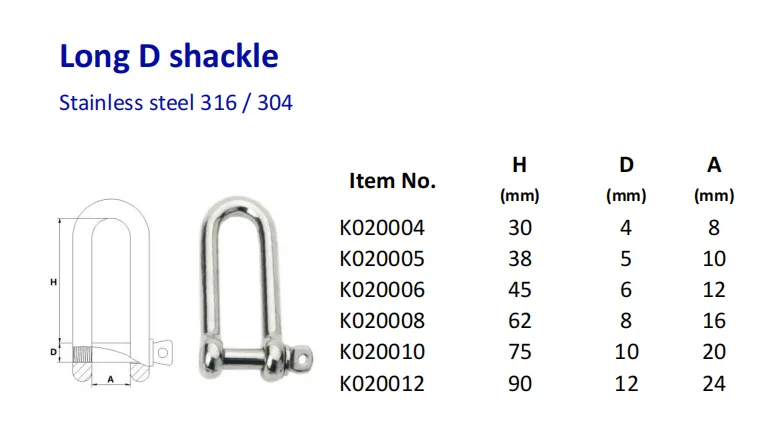

Specifications
| Item No. | H (mm) | D (mm) | A (mm) |
|---|---|---|---|
| K020004 | 30 | 4 | 8 |
| K020005 | 38 | 5 | 10 |
| K020006 | 45 | 6 | 12 |
| K020008 | 62 | 8 | 16 |
| K020010 | 75 | 10 | 20 |
| K020012 | 90 | 12 | 24 |
